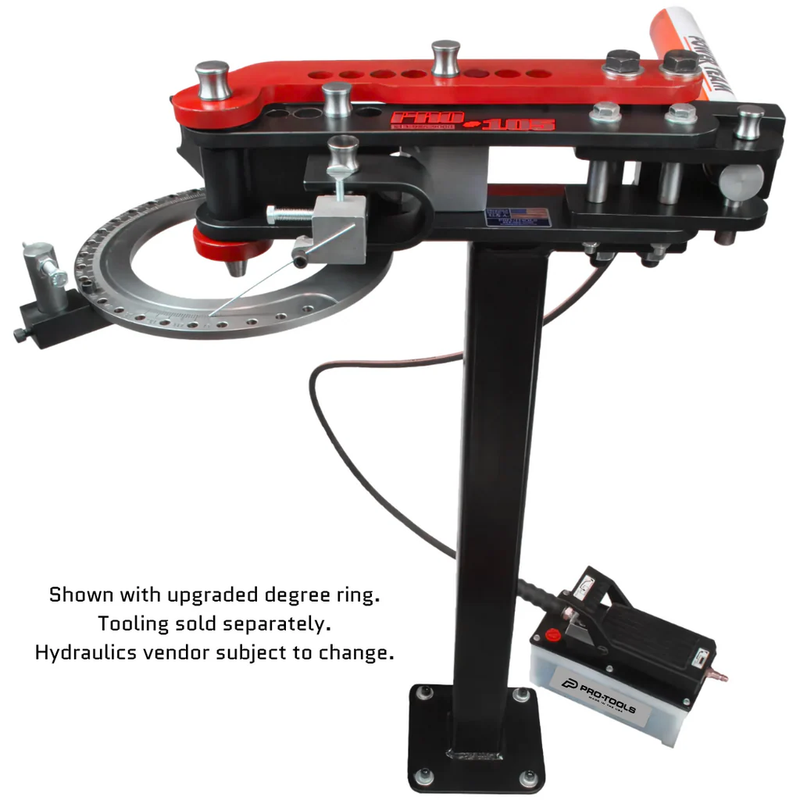

Pro-Tools 105 HD Hydraulic Bender Package

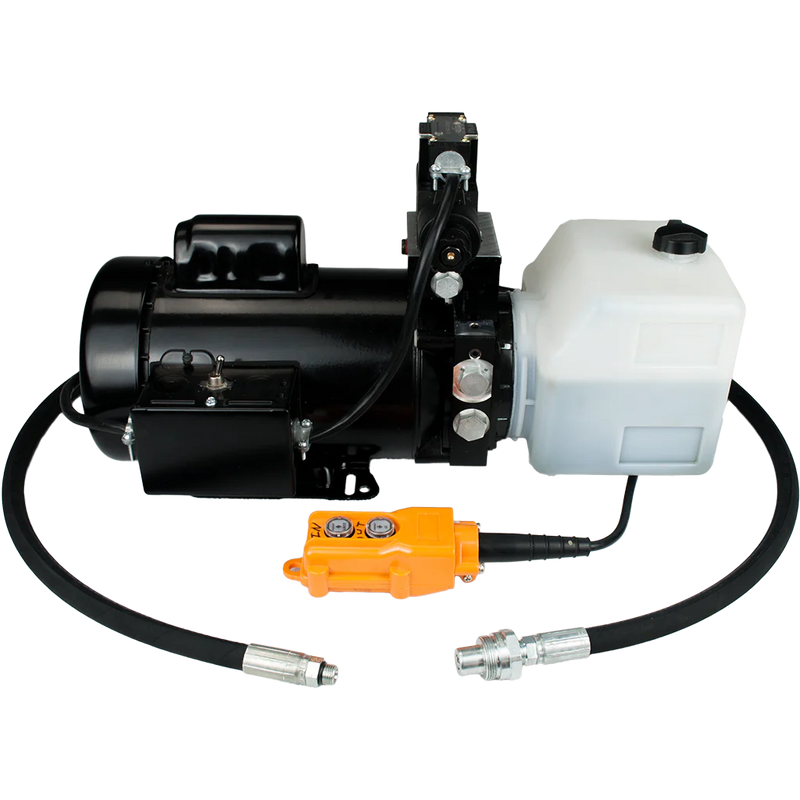

Pro-Tools High Volume Electric-Hydraulic Tube Bending Pump
Pro-Tools 105 HD Hydraulic Bender Package
Pro-Tools High Volume Electric-Hydraulic Tube Bending Pump

Pro-Tools 105 HD Electric-Hydraulic Pipe and Tube Bender Bundle

SKU:   by Pro-Tools
Made in the USA
$2,399.99 - $2,519.99
$2,399.99
$2,399.99 - $2,519.99
$2,399.99
  • ✅ No Sales Tax (Except for CO)
  • ✅ Realtime Shipping Quotes including LTL
  • ✅ Authorized Dealer
  • ✅ Save 3% with ACH / Wire Payment
  • ✅ Expert Advice & Free Lifetime Support

Call for our Best Deal (855) 605-4599

Pro-Tools Hydraulic 105 Series Heavy Duty Pipe and Tube Bender - Base Kit (Degree Ring)

Pro-Tools 105-HD Hydraulic Bender Specifications

Round Tube

  • Minimum Outside Diameter - 1/2"
  • Maximum Outside Diameter - 2"
  • Maximum Wall Thickness - 0.134"

Pipe

  • Minimum Size - 1/4"
  • Maximum Size - 1-1/2"
  • Rated for bending Schedule 40 Mild Steel - please contact us for other applications.

Square Tube

  • Minimum Size - 1/2"
  • Maximum Size - 1-1/2"
  • Minimum Wall Thickness - 0.065"
  • Maximum Wall Thickness - 0.125"

Other Details

  • Minimum Centerline radius (CLR) - Approx 3 x OD
  • Maximum Centerline Radius - 7"
  • Maximum Bend Angle - 180° (dependent on die)
  • Electric-Hydraulic Pump bends up to 3 times quicker than air-hydraulic.
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Bend up to 3 times quicker with the Pro-Tools 105 HD Electric-Hydraulic Bender

This package from Pro-Tools gives you a complete electric-hydraulic pipe and tube bender package ready to start bending without breaking a sweat.

With a high-capacity electric-hydraulic pump, you can bend up-to 3 times quicker than air-hydraulic, saving you time and letting you get more work done in the same time, saving money.

Including a 10-ton hydraulic ram, electric-hydraulic pump, stand and bender, all you need to do to get bending is add your dies of choice, connect to regular 110v and start bending, no more elbow-grease required.
