Pro-Tools 105 HD Hydraulic Bender Package

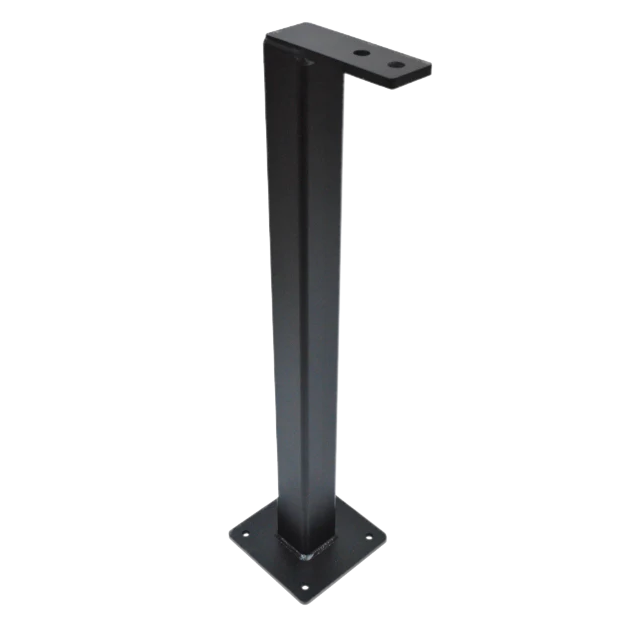

Pro-Tools 105 Stand

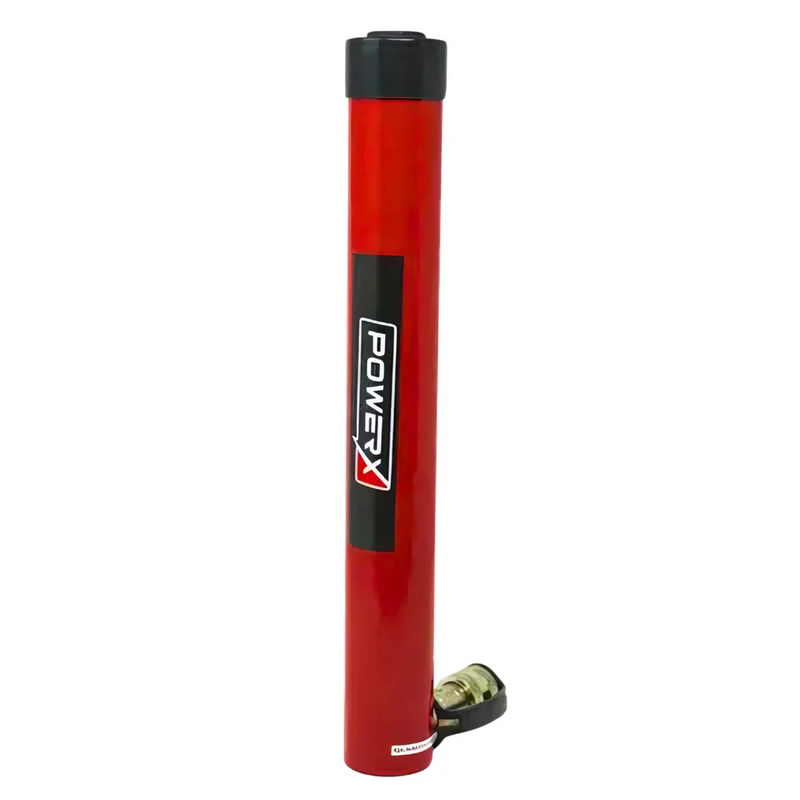

Pro-Tools 105 Bender Hydraulic Cylinder

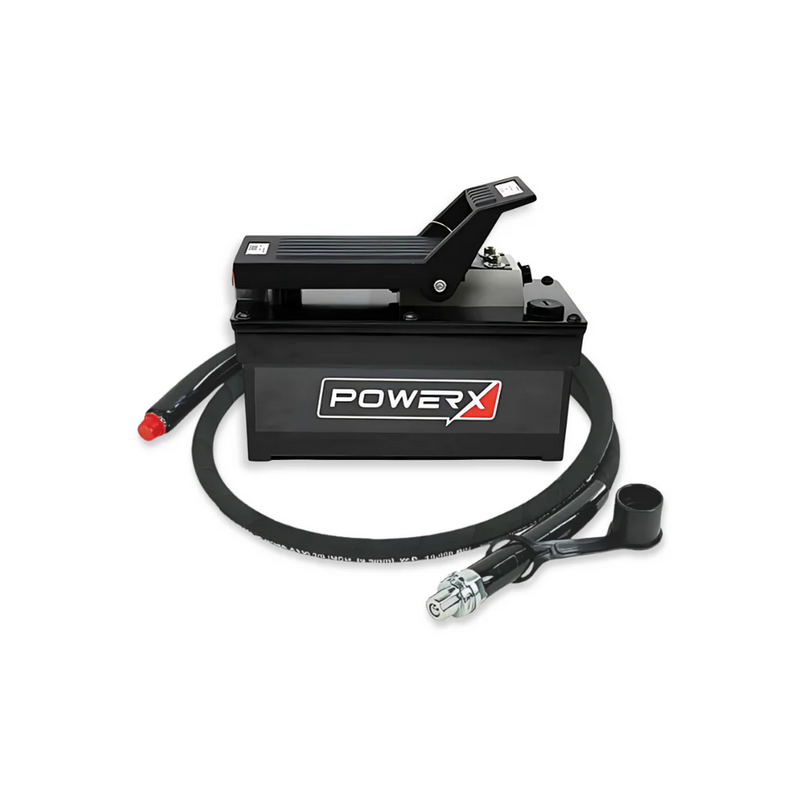

Air Hydraulic Foot Pump
Pro-Tools 105 HD Hydraulic Bender Package
Pro-Tools 105 Stand
Pro-Tools 105 Bender Hydraulic Cylinder
Air Hydraulic Foot Pump

Pro-Tools 105 HD Hydraulic Pipe and Tube Bender Bundle

SKU: B-105-HD-PKG-HYD  by Pro-Tools
Made in the USA
Save $97.96 Save $57.97
$1,657.96
$1,657.96 - $1,857.95
$1,657.96
$1,599.99
$1,599.99 - $1,849.99
$1,599.99
Availability:
Out of stock
Availability:
Out of stock

Call for our Best Deal (855) 605-4599

Pro-Tools 105 SD HD Bender Stand (Type)

Pro-Tools 105-HD Hydraulic Bender Specifications

Round Tube

  • Minimum Outside Diameter - 1/2"
  • Maximum Outside Diameter - 2"
  • Maximum Wall Thickness - 0.134"

Pipe

  • Minimum Size - 1/4"
  • Maximum Size - 1-1/2"
  • Rated for bending Schedule 40 Mild Steel - please contact us for other applications.

Square Tube

  • Minimum Size - 1/2"
  • Maximum Size - 1-1/2"
  • Minimum Wall Thickness - 0.065"
  • Maximum Wall Thickness - 0.125"

Other Details

  • Minimum Centerline radius (CLR) - Approx 3 x OD
  • Maximum Centerline Radius - 7"
  • Maximum Bend Angle - 180° (dependent on die)
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

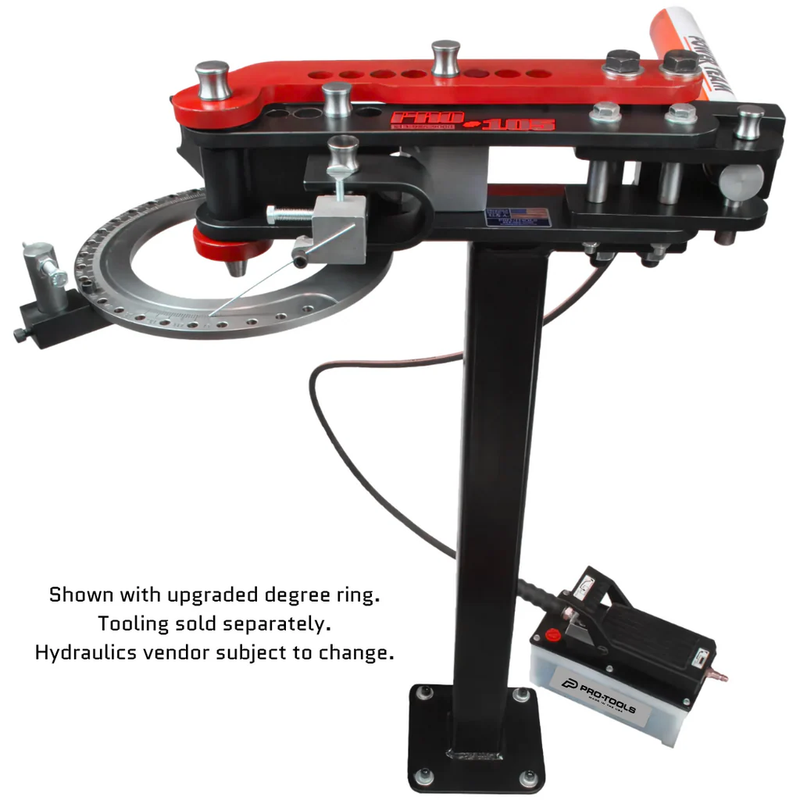

Pro-Tools 105 HD Air-Hydraulic Tube and Pipe Bender Package

A complete air-hydraulic bending package built around the Pro-Tools 105 HD bender — ready to run off your shop compressor with no electrical hookup. The package includes the 105 HD bender, a 10-ton hydraulic ram, an air-hydraulic pump, and a stand. Add your dies, connect your air line, and start bending — no hand cranking, no bolting to a bench.

Pick the configuration that fits your shop: a fixed stand for a permanent bending station or a rolling stand to move the bender to the work, and either the basic degree plate or the upgraded degree ring with stop for faster repeatable angles. Every configuration handles up to 2" OD round tube and up to 1-1/2" Schedule 40 pipe.

The 105 HD shares the same die family across the Pro-Tools 105 range, so it grows with your work. Not sure which configuration suits your fabrication? Call us on 855 605 4599 and we'll help you spec it.
