Baileigh RDB-500 Hydraulic Pipe and Tube Bender

SKU BA9-RDB500220SB
Original price $31,249.00 - Original price $31,249.00
Original price
$31,249.00
$31,249.00 - $31,249.00
Current price $31,249.00

Questions? Call (855) 605-4599

Hydraulic Tube Bending up to 3.5"

Baileigh RDB-500 Specifications

  • 3.5" Mild Steel Tube (.188" wall)
  • 3.5" Aluminum Tube (.25" wall)
  • 3.5" Stainless Tube (.187" wall)
  • 3.5" Chromolly Tube (.187" wall)
  • 3" Square Mild Steel Tube (.25" wall)
  • 3" Schedule 40 Mild Steel Pipe
  • 3" Schedule 40 Aluminum Pipe
  • 2.5" Schedule 40 Stainless Pipe
  • Minimum OD - 0.25"
  • Minimum CLR - 0.5"
  • Maximum CLR - 20"

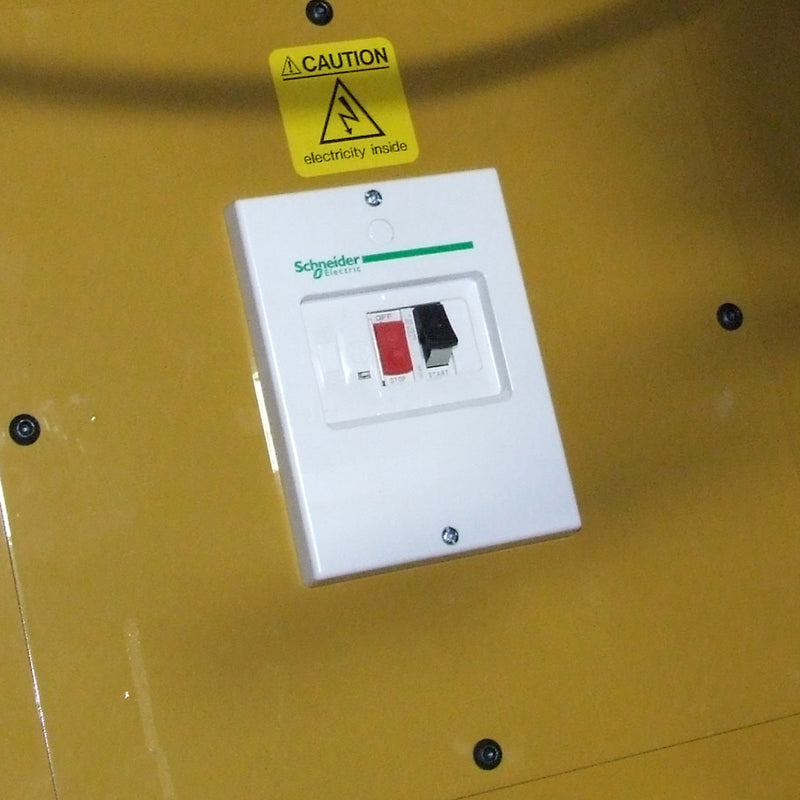

  • 220v 3-phase power

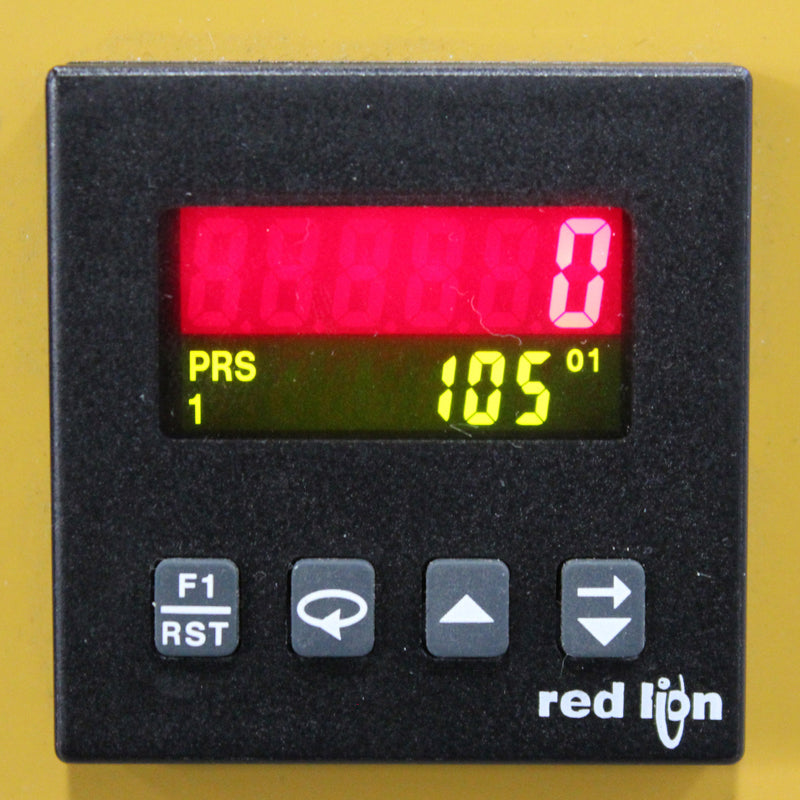

  • Digital Auto-Stop for repeatability.

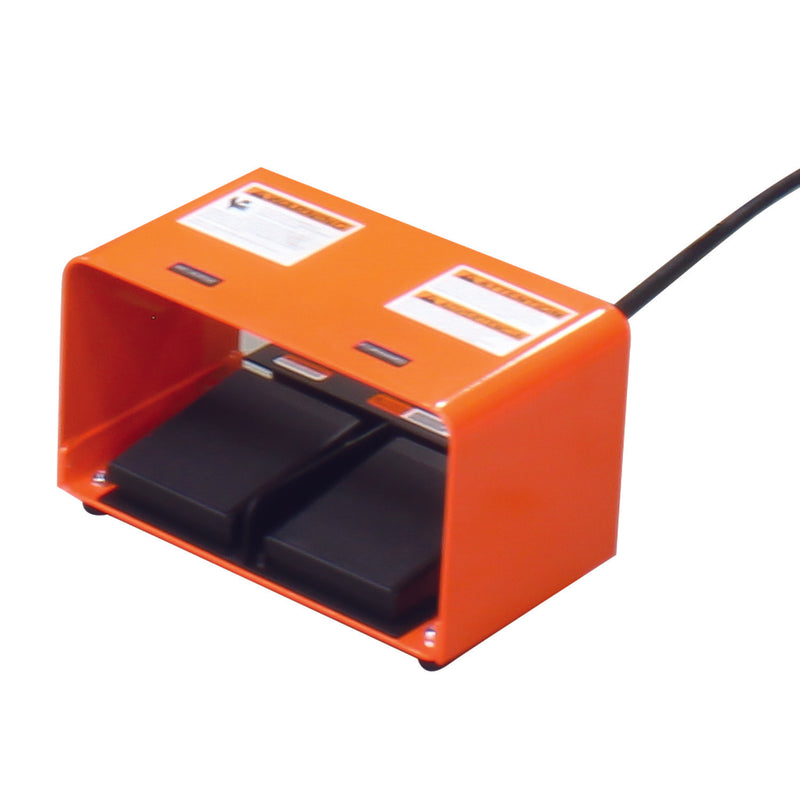

  • Foot-pedal control
  • Weighs 1800 lbs

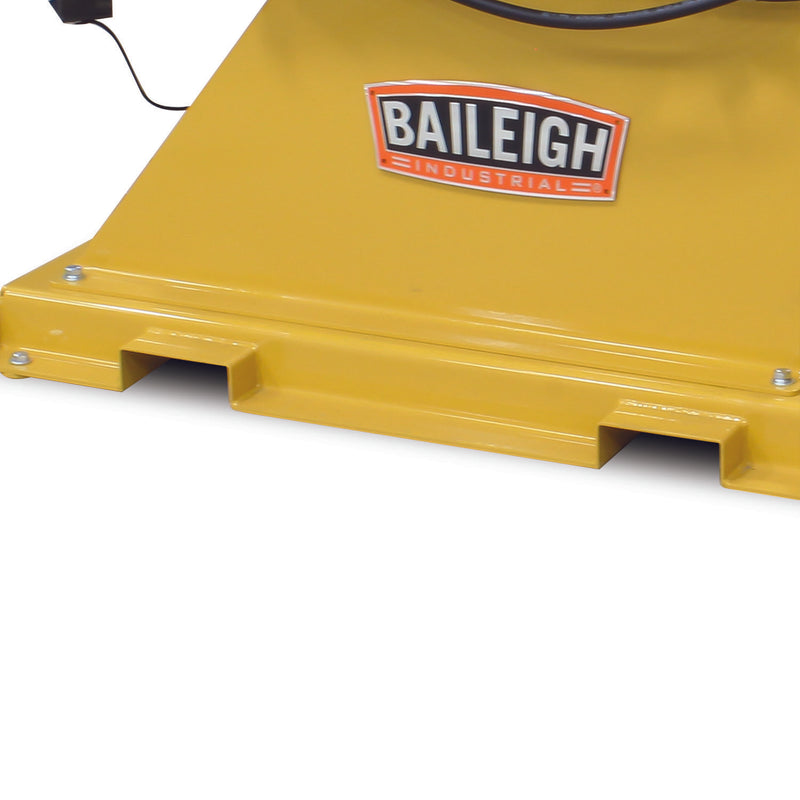

  • Integrated Fork-List pockets for movability.
  • 1 Yr Manufacturer Warranty
Request a quote
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Made in the USA

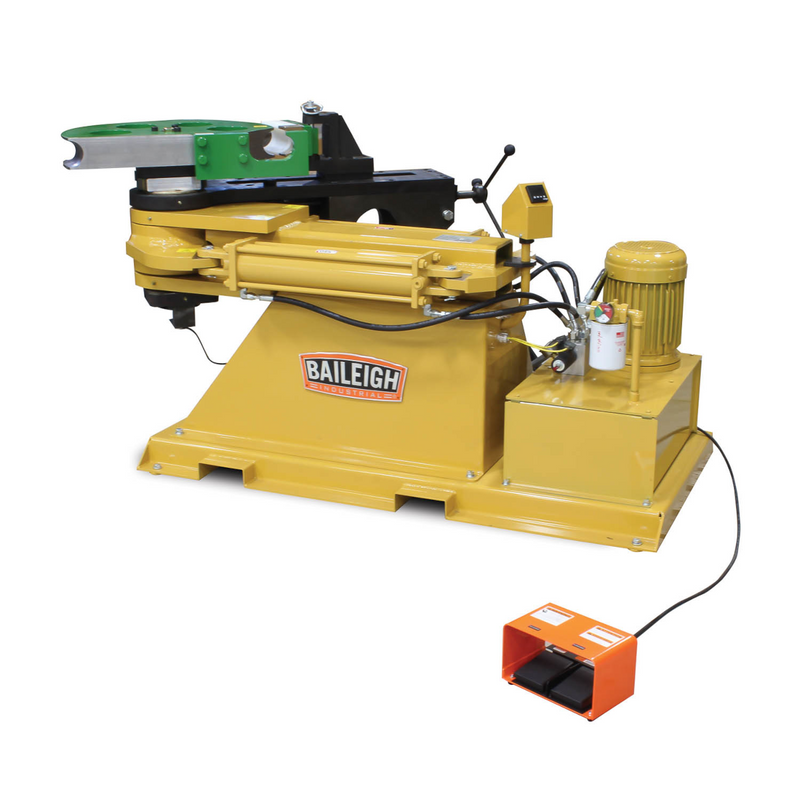

Baileigh's Largest Hydraulic Pipe and Tube Bender - RDB-500

With capacity for up to 3.5" tube, the RDB-500 is ideal for fabricating pickup-truck roll-bars, gas-station bumpers, oil-rig and petro-chem piping and other applications requiring large pipe or tube.

With access to Baileigh's entire range of over 3500 pipe, tube and square tube dies from 1/4" up to 3.5" and multiple CLR's, the RDB-500 enables maximum creativity for any pipe and tube bending project.
