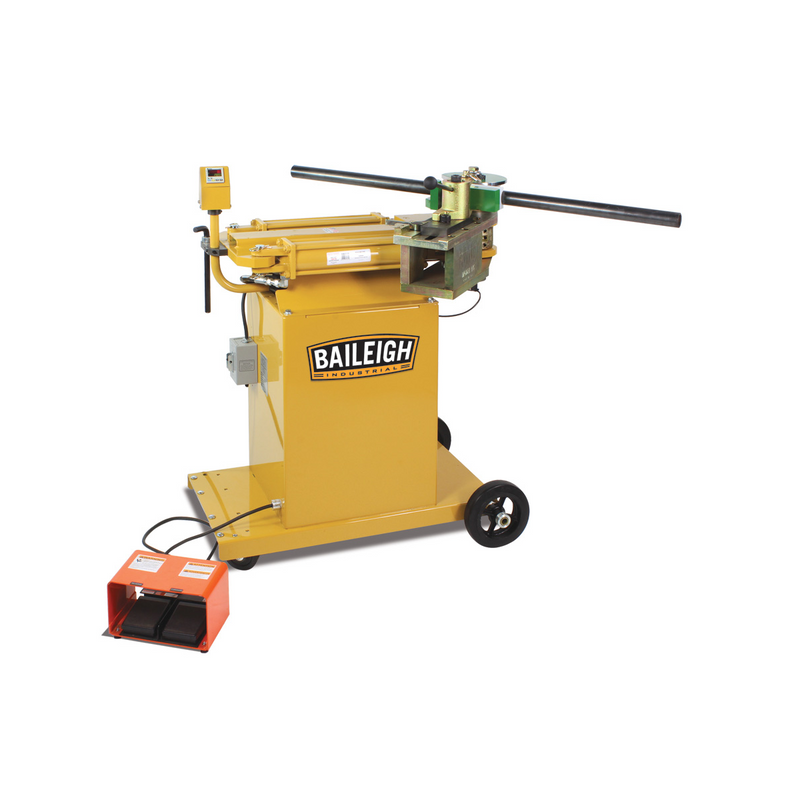

Baileigh RDB-175 Hydraulic Tube Bender

SKU BA9-RDB175B
Original price $8,979.00 - Original price $8,979.00
Original price
$8,979.00
$8,979.00 - $8,979.00
Current price $8,979.00
Availability:
5+ in stock, ready to be shipped

Call Now for a Deal (855) 605 4599

Request a quote
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Bends up to 3x quicker than the RDB-150

With power to burn, the Baileigh RDB-175 Hydraulic Tube Bender can bend pipe and tube up to 3 times quicker than the already quick RDB-150 meaning it can shorten your production times, get more work done during a day and save money on production costs. Additionally, you can bend up to 180 degrees in a single bend, saving even more time not having to reset the work and dies.

Over 5000 Die Sets to Choose From

With a choice of round tube, pipe, square and rectangle tube and even elliptical tube dies and a choice of CLR's across them all, the RDB-175 can bend just about any profile, with capacity for up to 2in schedule 40 pipe and 2.5in tube with a wall thickness of 120 thou, making it ideal for custom chassis building, roll cages, boilers, handrails and building features and more.

Digital Degree Indicator

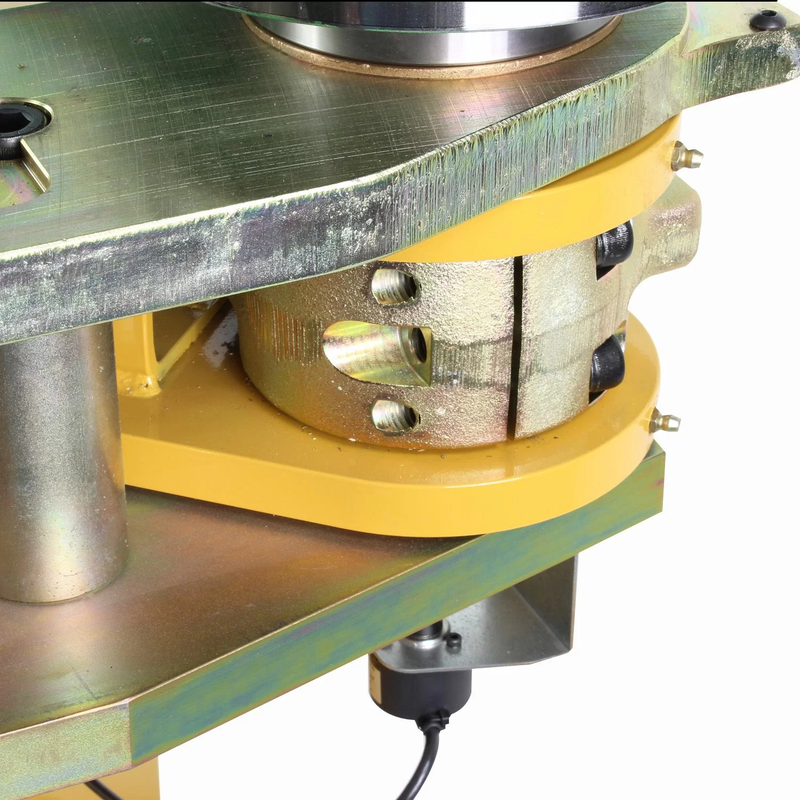

With the built in digital degree readout and rotary encoder measure the bend angle on the die head / spindle providing greater accuracy than measuring on the cylinder stroke and allow you to program your bend angle for accurate and repeatable bends.

RDB-175 Details

  • Supports up to 2in schedule 40 pipe and 2.5in 120 thou wall thickness mild steel tube.
  • Bends 3 times quicker than the RDB-150 saving time and increasing production throughput.
  • Bends up to 180 degrees in a single motion.
  • Digital degree indicator with easy to read display for repeatable accurate bends.

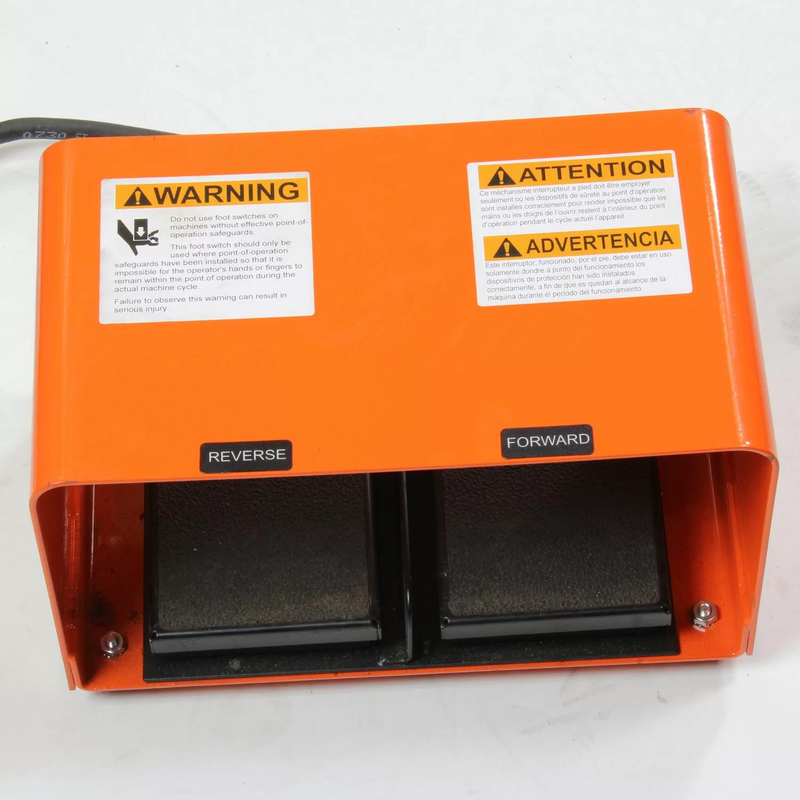

  • Dual direction foot pedal control.
  • 9in max center line radius (CLR)
  • Weighs 700lbs

Looking for Pipe or other profile dies?

We can supply over 1,900 different dies to suit Pipe, Rectangular and Square Tube and more for the Baileigh RDB Benders - call us on (855) 605 4599 to discuss your requirements.

Made in the USA
