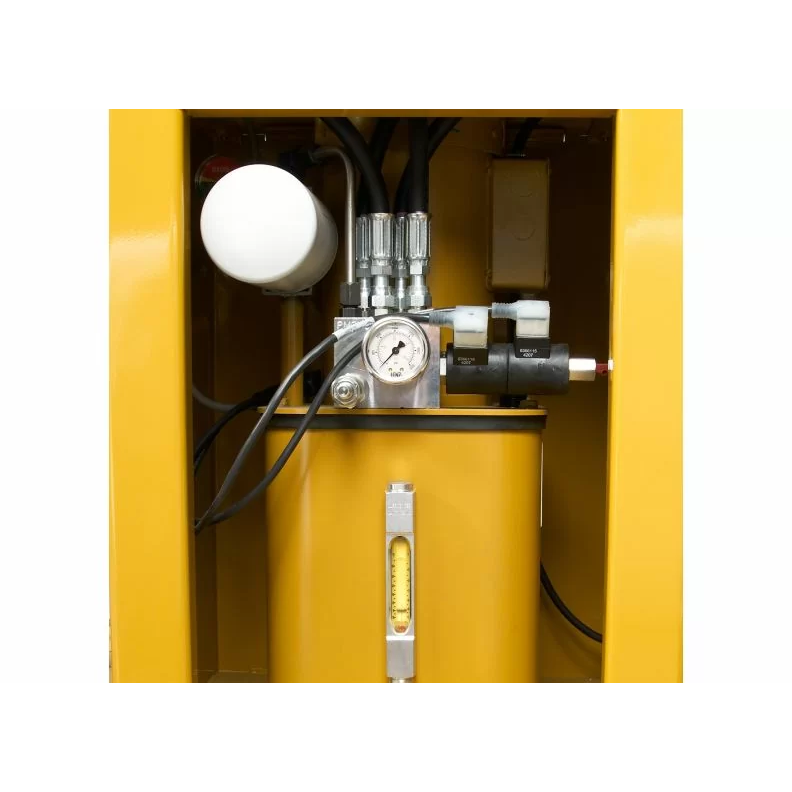

Baileigh RDB-150 Hydraulic Tube Bender Pump
Baileigh RDB-150 Hydraulic Tube Bender Wheels
Baileigh RDB-150 Hydraulic Tube Bender Arm
Baileigh RDB-150 Hydraulic Tube Bender Counter Die

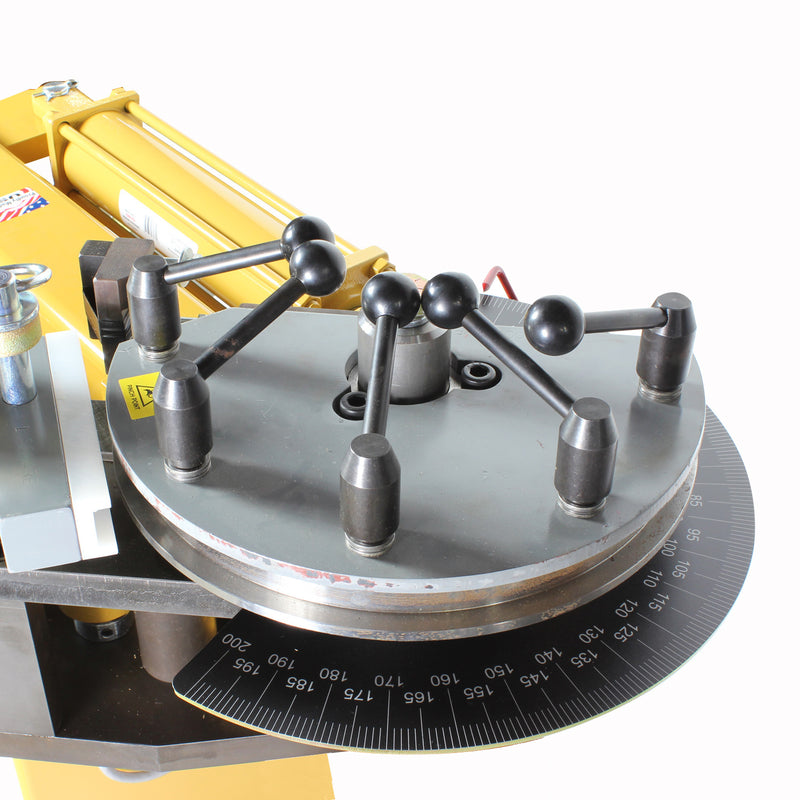

Baileigh RDB-150 Hydraulic Tube Bender Die and Protractor

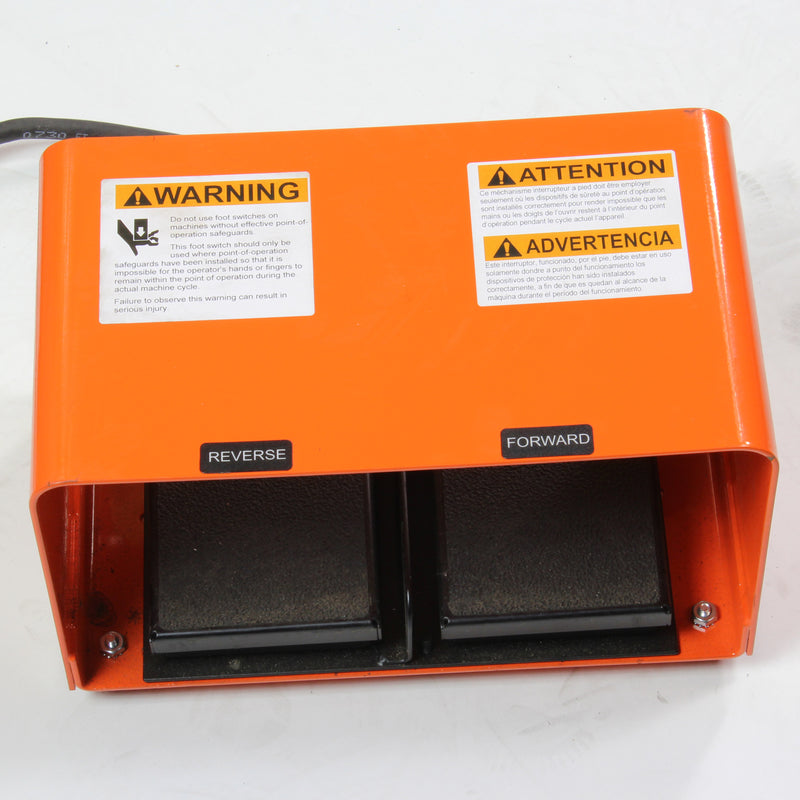

Baileigh RDB-150 Hydraulic Tube Bender Foot Pedal
Baileigh RDB-150 Hydraulic Tube Bender Ram
Baileigh RDB-150 Hydraulic Tube Bender
Baileigh RDB-150 Hydraulic Tube Bender Pump
Baileigh RDB-150 Hydraulic Tube Bender Wheels
Baileigh RDB-150 Hydraulic Tube Bender Arm
Baileigh RDB-150 Hydraulic Tube Bender Counter Die
Baileigh RDB-150 Hydraulic Tube Bender Die and Protractor
Baileigh RDB-150 Hydraulic Tube Bender Foot Pedal
Baileigh RDB-150 Hydraulic Tube Bender Ram

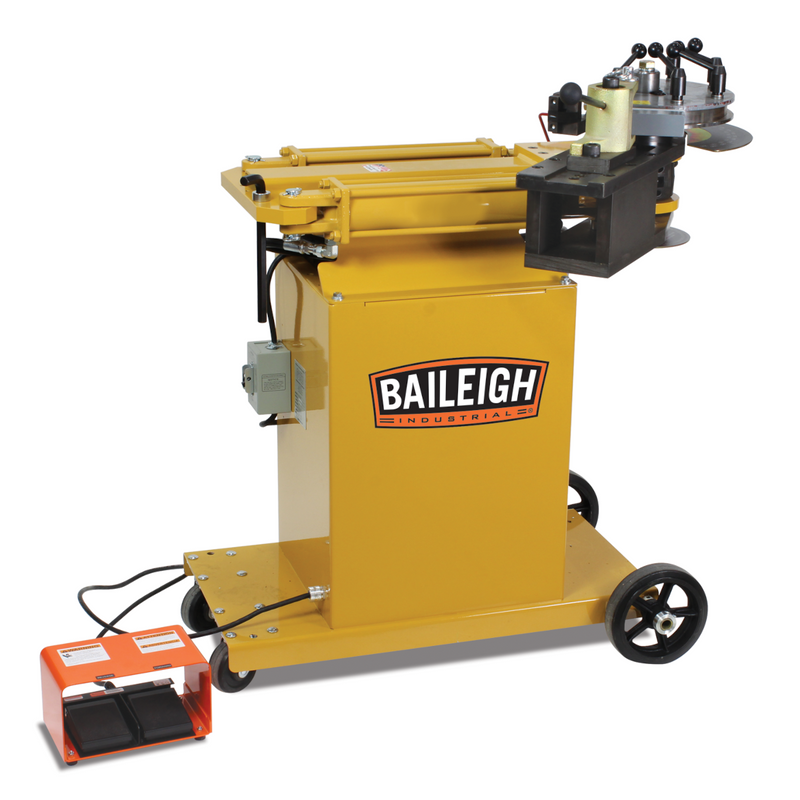

Baileigh RDB-150 Hydraulic Pipe & Tube Bender

SKU: BA9-RDB150110  by Baileigh
Made in the USA
$7,799.00 - $7,799.00
$7,799.00
$7,799.00
$7,799.00 - $7,799.00
$7,799.00
Availability:
In stock

Call for our Best Deal (855) 605-4599

  • 2" Sch 40 pipe / 2.5" mild-steel tube (.125" wall) — twin-cylinder hydraulic power handles chassis, roll-cage and handrail stock without breaking a sweat.
  • Bends steel, stainless, aluminum and chromoly — rated to 2" chromoly (.125"), 2.375" stainless tube, 1.5" stainless Sch 40 pipe and 2" square tube, so one machine covers most shop materials.

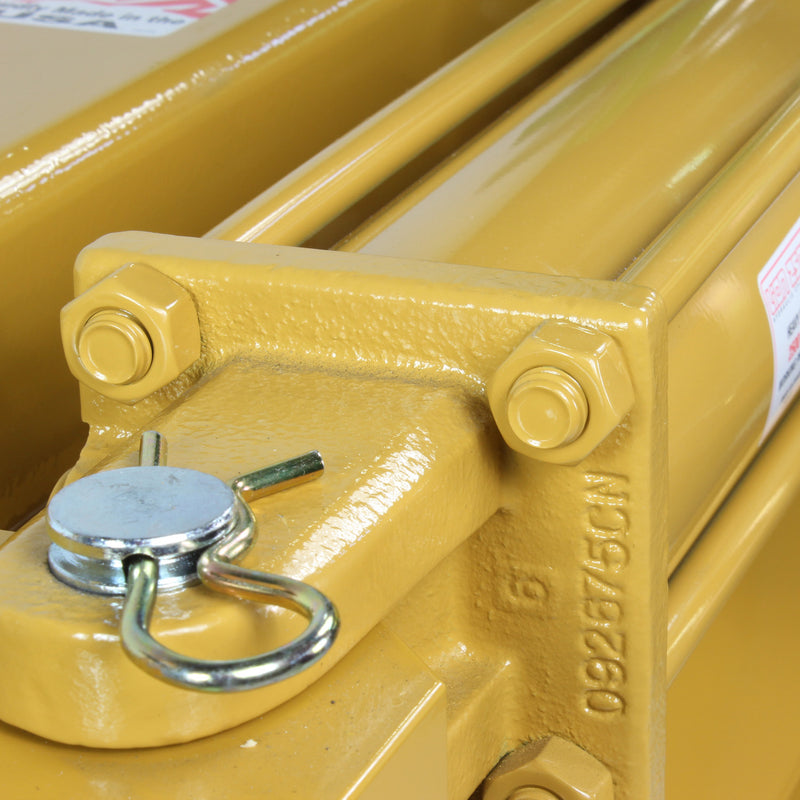

  • 180° bend in a single shot — the original twin-cylinder design (the first to do it, back in 2002) means one fluid stroke per bend, so you work faster and every bend matches the last.
  • 8" maximum CLR (0.5" minimum, depending on material OD) — covers the radius range most fabrication and ornamental work calls for.

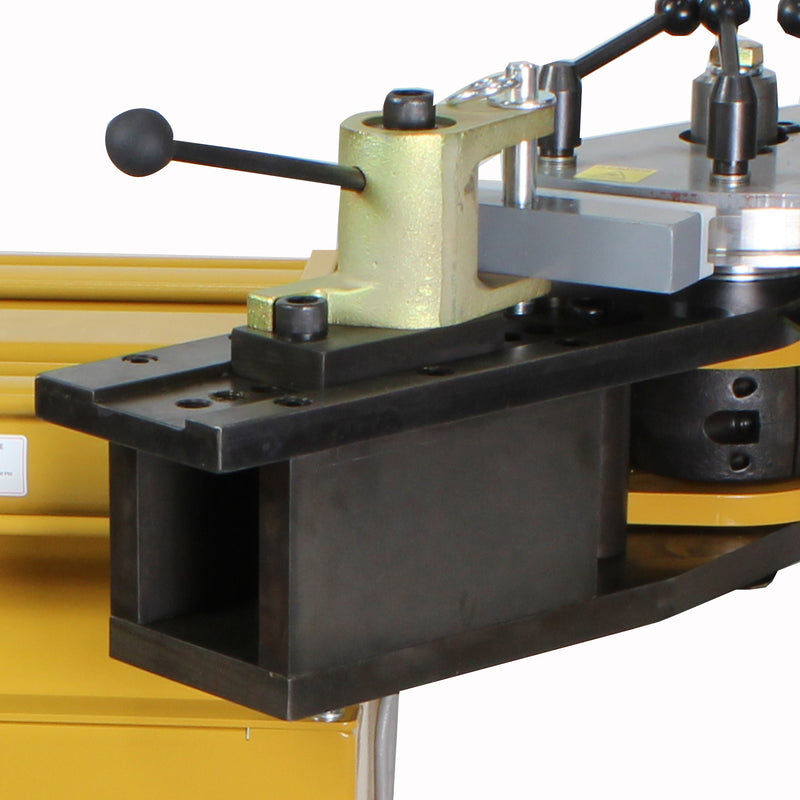

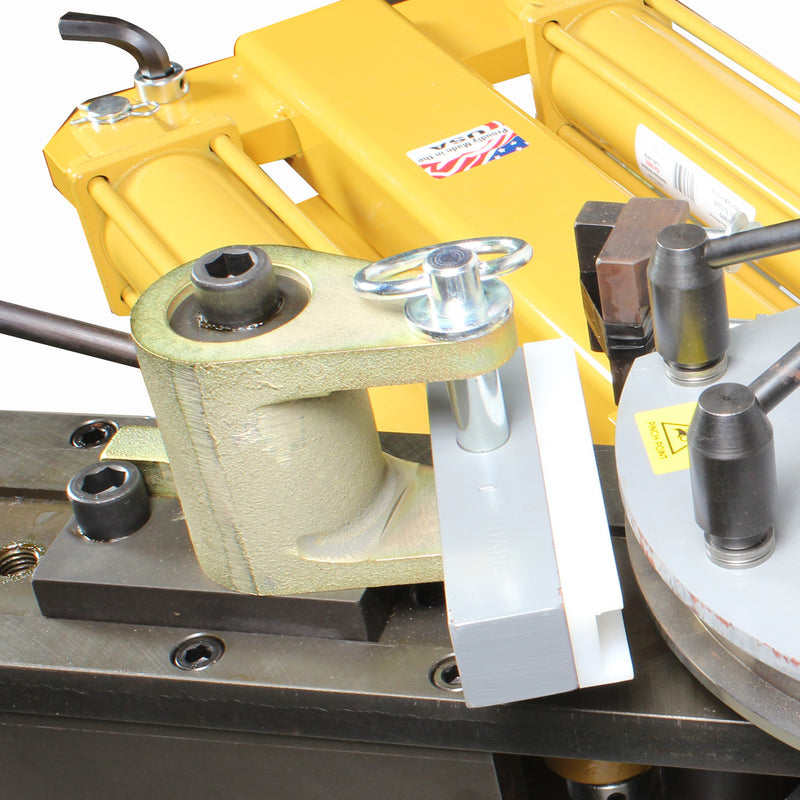

  • Quick-release counter die — material drops in and out in seconds and tooling swaps fast, cutting downtime between bends.
  • Baileigh drop-on tooling — thousands of round tube, pipe, square and hardened die profiles available, so the same machine grows with your work.
  • Runs on standard 110v (20A, single phase) — plugs into any North American shop, no special power install.
  • Made in the USA — built in America since 2002, with a 1-year parts warranty and lifetime technical support behind it.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh RDB-150 Manual

The Tube Bender That Set The Standard - RDB-150

Made in America since 2002, the Baileigh RDB-150 has been setting the standard for Hydraulic Pipe & Tube Benders ever since. The first of its kind to bend tube and pipe up to 180 degrees in a single shot, there are now thousands of RDB-150's in workshops around the world getting the job done.

A great addition to any small-medium sized fabrication workshop, the twin cylinder design lets you get the job done quickly and accurately, bend after bend, saving you time and making you more money in the process.

Thousands of Die Profiles to Choose From

Using the innovative drop-in tooling system from Baileigh, the RDB-150 has access to thousands of different die profile covering round tube, pipe, square and rectangle as well as hardened dies for use with high volume bending and harder materials.

This combination of dies and power give you the ability to bend up to 2inch Schedule 40 pipe, 2.5inch 125 thou wall mild steel tube 2inch 125 thou Chrome Molly tube, making the ideal choice for Auto Chassis, Off-Road, Roll-Cage, Hand-rail and ornamental and many other fab shops.

Baileigh RDB-150 Details

  • Bends up to 180 degrees in a single shot, saving time and increasing profit.
  • Bends up to 8inch CLR depending on material OD.
  • Bend up to 2inch schedule 40 pipe, 2.5inch DOM / mild steel tube and 2inch Chrome Molly Tube with 125 thou wall thickness.
  • Runs on 110v making it suitable for any workshop.
  • Uses the Baileigh Drop-In Die system giving you access to thousands of different die profiles.

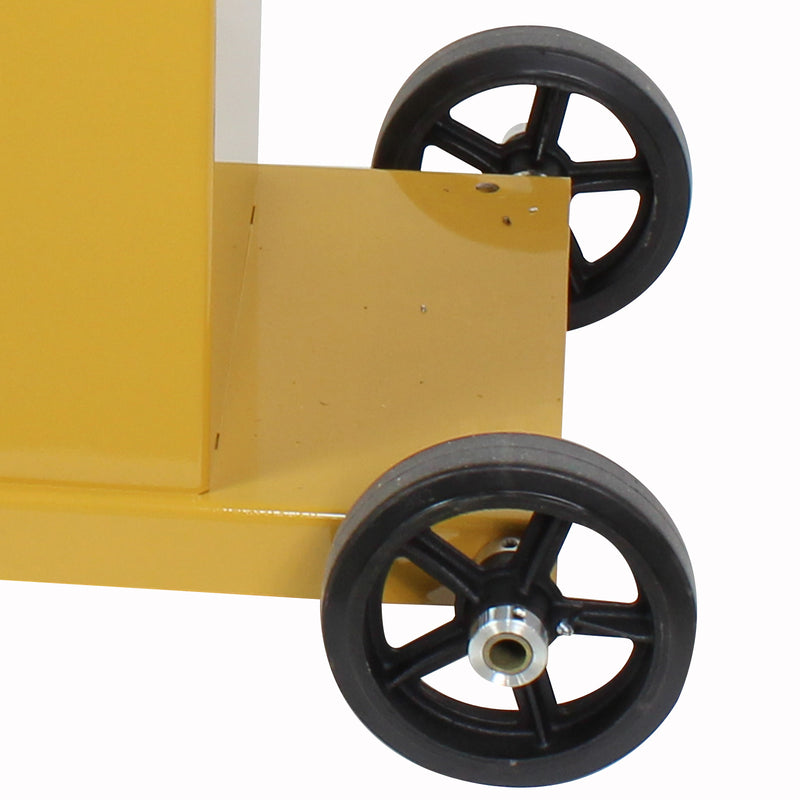

  • Easily move around the workshop with the convenient wheels on the base.
  • 1Yr Manufacturer Warranty.

Running higher production volumes? The RDB-175 bends the same capacity up to three times quicker. See how the RDB-150 fits across the full Baileigh tube & pipe bender range.
