Baileigh Computer Programmable Tube Bender RDB-250
Baileigh RDB-250 Computer Programmable Tube Bender
Baileigh RDB-250 Computer Programmable Tube Bender
Baileigh RDB-250 Computer Programmable Tube Bender
Baileigh RDB-250 Computer Programmable Tube Bender
Baileigh RDB-250 Computer Programmable Tube Bender
Baileigh RDB-250 Computer Programmable Tube Bender
Baileigh Computer Programmable Tube Bender RDB-250

Baileigh RDB-250 Computer Programmable Tube Bender

SKU: BA9-RDB250220TS  by Baileigh
Made in the USA
$13,099.00 - $13,099.00
$13,099.00
$13,099.00
$13,099.00 - $13,099.00
$13,099.00
Availability:
Only 2 left!

Call for our Best Deal (855) 605-4599

  • 2" Sch 40 pipe / 2.5" mild-steel tube (.125" wall) — handles chassis, roll-cage and handrail stock, with a 9" maximum CLR.
  • Bends steel, stainless, aluminum and chromoly — rated to 2" chromoly (.125"), 2.375" stainless tube and 2" square, so one machine covers most shop materials.

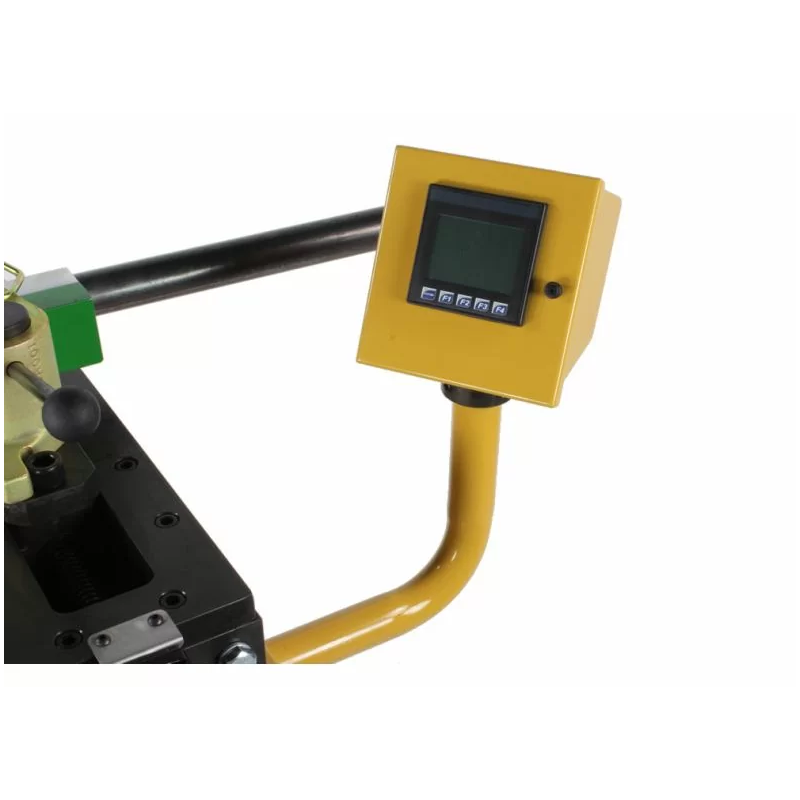

  • Computer-programmable touchscreen — stores up to 170 jobs of 10 bends each, so repeat production runs replay identically with no re-setup.
  • 180° bend in about 9 seconds — six selectable speeds keep cycle times down on production work.
  • Optional IDX-250 indexing table — sets plane-of-bend and distance-between-bends automatically for repeatable multi-plane parts.
  • Runs on 220v single phase (20A, 60Hz) — standard shop three-wire 220 service.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh RDB-250 Computer Programmable Tube Bender Manual

Baileigh RDB-250 Computer Programmable Tube Bender

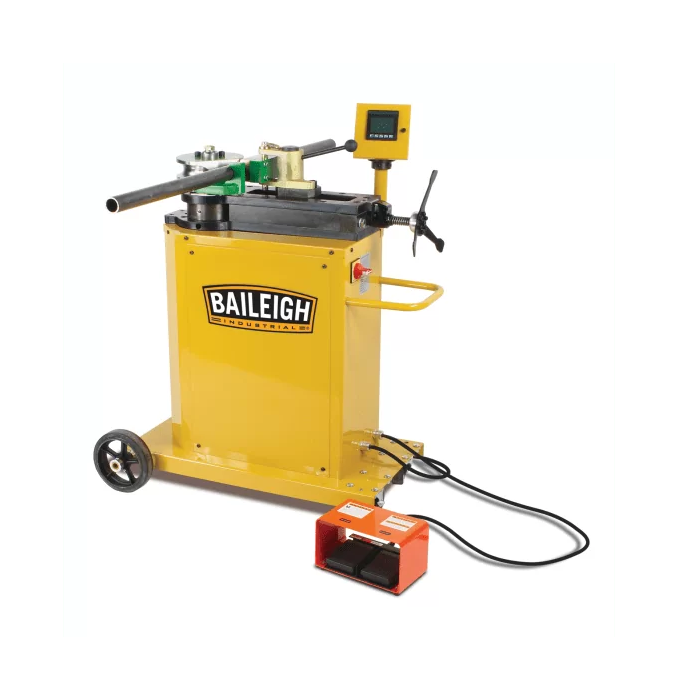

The Baileigh RDB-250 is a computer-programmable rotary draw bender built for shops running repeat work. You program the bend sequence once on the touchscreen, and the machine reproduces it bend-for-bend across the whole run — no re-setting dies or chasing angles by hand on every part.

It stores up to 170 jobs of 10 bends each and bends 180° in about 9 seconds, with six selectable speeds so you can match the pace to the material. That combination of repeatability and speed is what earns its place in a production cell — handrail, roll-cage, chassis and ornamental work where the same part comes off the machine dozens of times and has to match every time.

Bends a Full Range of Material

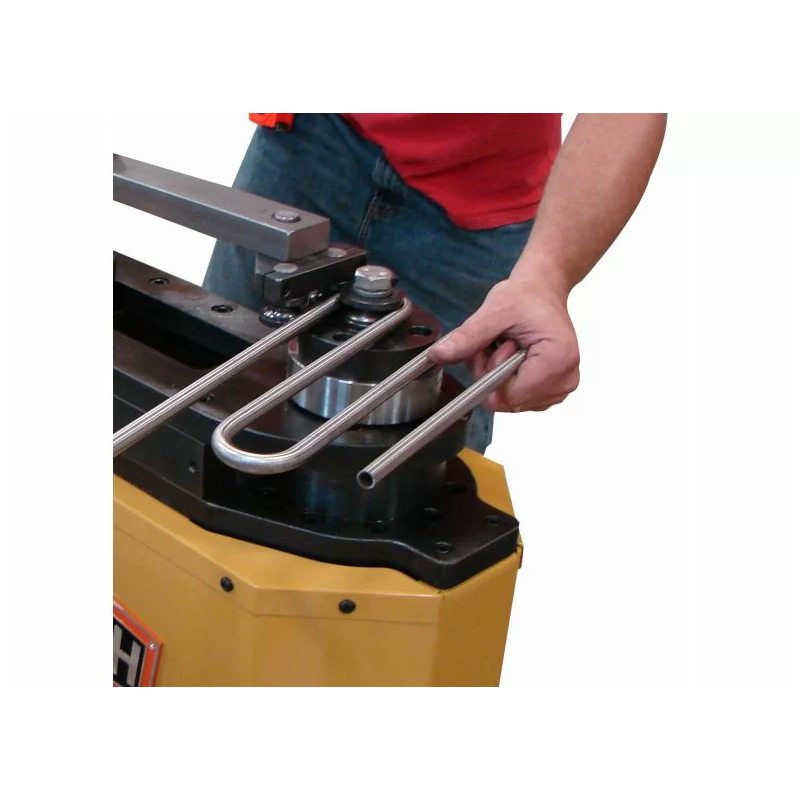

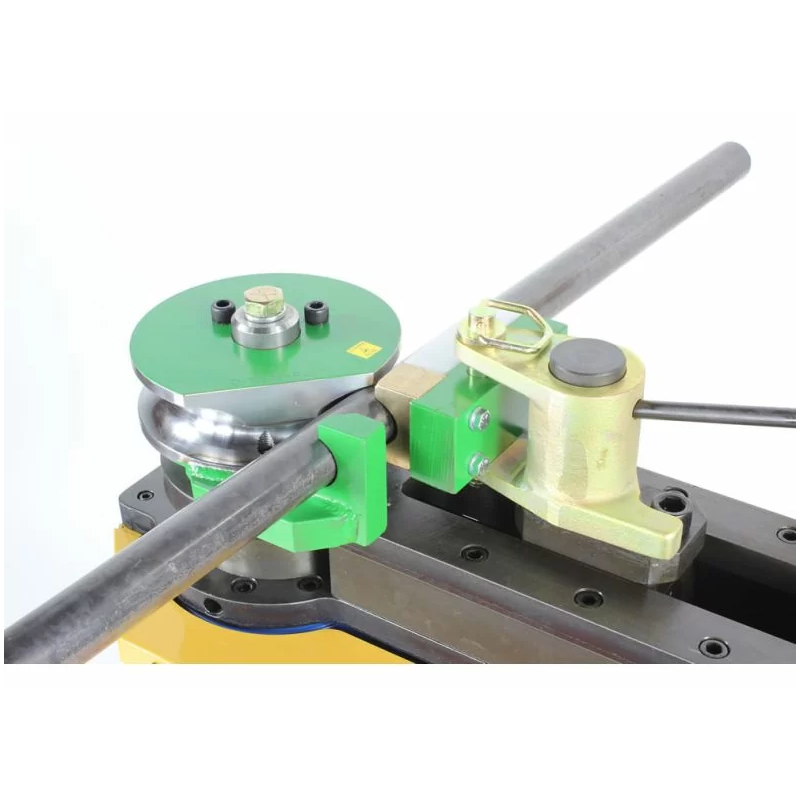

Running Baileigh's drop-on tooling, the RDB-250 bends round tube, pipe, square and solid profiles. Verified capacities from the manual: 2.5" mild-steel tube (.125" wall), 2" Schedule 40 pipe, 2" chromoly (.125"), 2.375" stainless tube, 2.5" aluminum tube, 2" square tube and 1.25" solid rod — across a 9" maximum centerline radius (0.5" minimum, depending on material OD).

Optional IDX Indexing Table

Add the IDX-250 rotary positioning table and the machine sets both the distance between bends and the plane-of-bend automatically, so complex multi-plane parts repeat without hand-measuring between bends.

RDB-250 Details

  • Computer-programmable touchscreen — 170 jobs, 10 bends per job
  • 2.5" mild-steel / DOM round tube (.125" wall); 2" Schedule 40 pipe; 2" chromoly (.125")
  • 9" maximum CLR / 0.5" minimum, depending on material OD
  • 180° bend in ~9 seconds, six bending speeds
  • 220v single phase (20A, 60Hz)
  • Weighs 610 lb
  • 1-year manufacturer warranty

The RDB-250 sits in Baileigh's computer-controlled range — see how it compares across the full programmable bender lineup.

Looking for Pipe or other profile dies?

We can supply over 1,900 different dies to suit Pipe, Rectangular and Square Tube and more for the Baileigh RDB Benders — call us on (855) 605 4599 to discuss your requirements.
