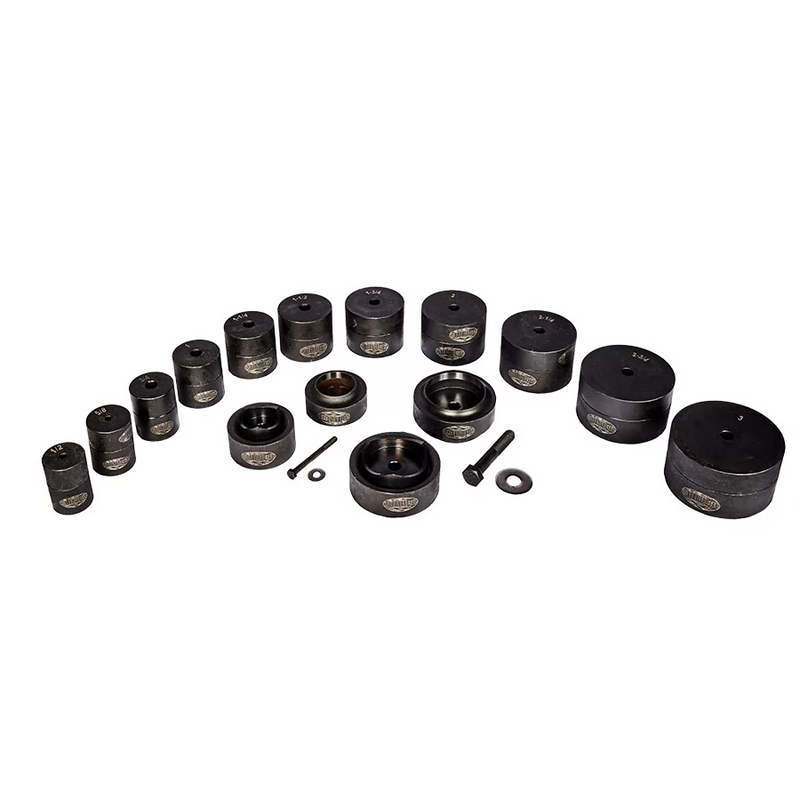

13-piece Punch and Flare Dimple Die Set

This 13-piece Dimple Die set from Woodward-Fab provides a comprehensive set of punch and flare style dimple dies that cover you for all your punching and flaring needs from 1/2inch to 3inch diameter.

Precision Ground and Hardened Dimple Dies

With hardened and precision ground edges, these dies provide clean and accurate cutting and are built for heavy-duty use with capacity for up to 16-gauge mild steel or 14 gauge aluminum making them ideal for automotive fabrication.

These dies can either be used with a 1/2 inch pilot hole and draw-bar or in a press giving you the ability to pre-form your flares or form them in-situ.

Punch, Flare or Both

There dies can be used to punch accurate clean holes, flare existing holes or punch and flare in one step providing maximum flexibility.

Dimple Dies included in set:

• 1/2 inch dimple die
• 5/8 inch dimple die
• 3/4 inch dimple die
• 1 inch dimple die
• 1-1/4 inch dimple die
• 1-1/2 inch dimple die
• 1-5/8 inch dimple die
• 1-3/4 inch dimple die
• 2 inch dimple die
• 2-1/4 inch dimple die
• 2-1/2 inch dimple die
• 2-3/4 inch dimple die
• 3 inch dimple die
