ProLine mini-Max — Pullmax-Style Forming on the Bench

  • 18" throat depth, 9" height — Pullmax-style capability in a benchtop footprint.
  • 16-gauge mild steel capacity — shrink, stretch, edge-turn, dome, and bead.
  • 0–1,150 strokes per minute — variable-speed motor with foot-pedal control.
  • 0.090" stroke, 3/4hp 110v single-phase motor — runs in any shop.
  • 16mm square-shank Pullmax tooling — wide die range available, or make your own.
  • Height-adjustable lower die holder — quick tooling changes.
  • Bench-mount or stand mount — optional ProLine stand available.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Pullmax capabilities in a mini-footprint

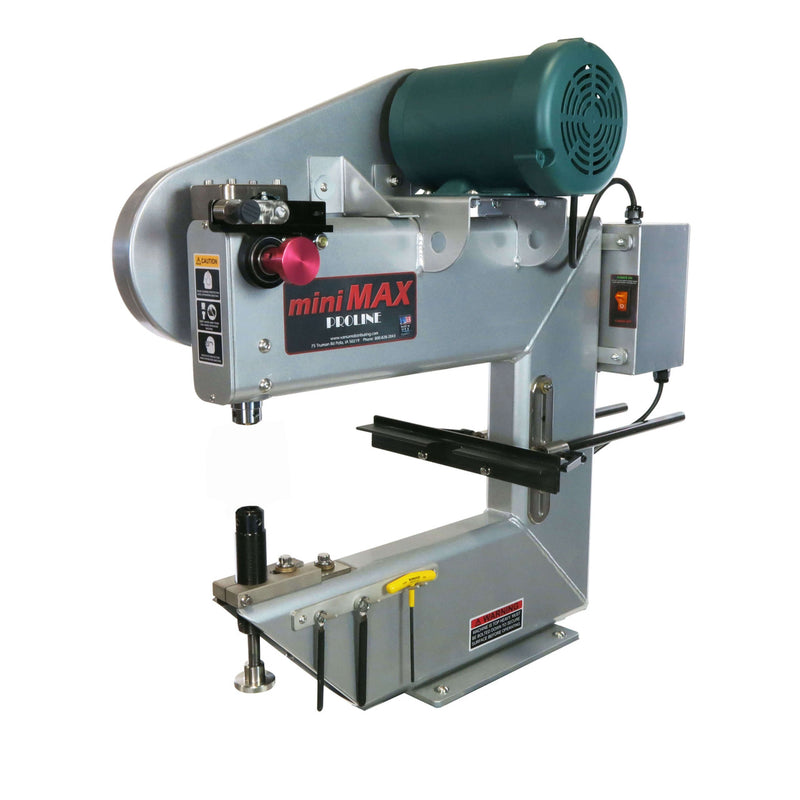

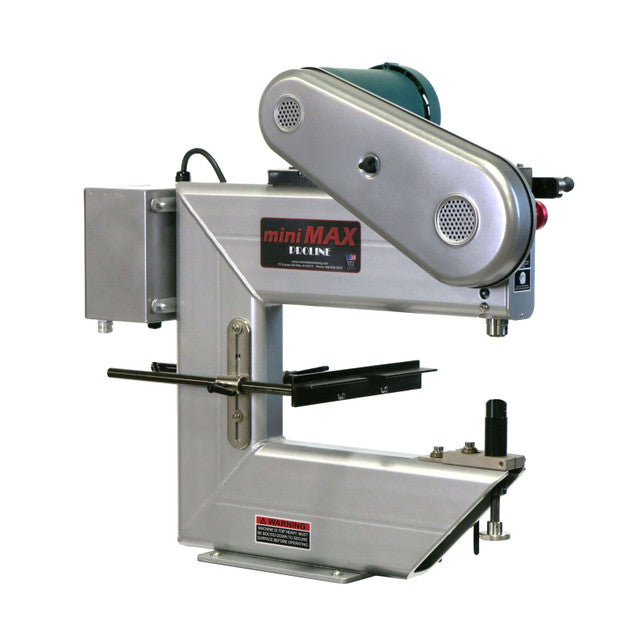

The mini-Max from Proline tools is a modern interpretation on the age-old Pullmax Power Hammer. With all the capabilities such as shrinking, stretching, edge turning, doming, beading and more only limited by your creativity, the mini-Max lets you form metal up to 16 gauge thick in a bench-mount or stand mount footprint.

With a variable-speed motor and foot-pedal control allowing you to control the strike rate between 0 and 1150 strokes per minute, the mini-Max is easy to use safe at the same time.

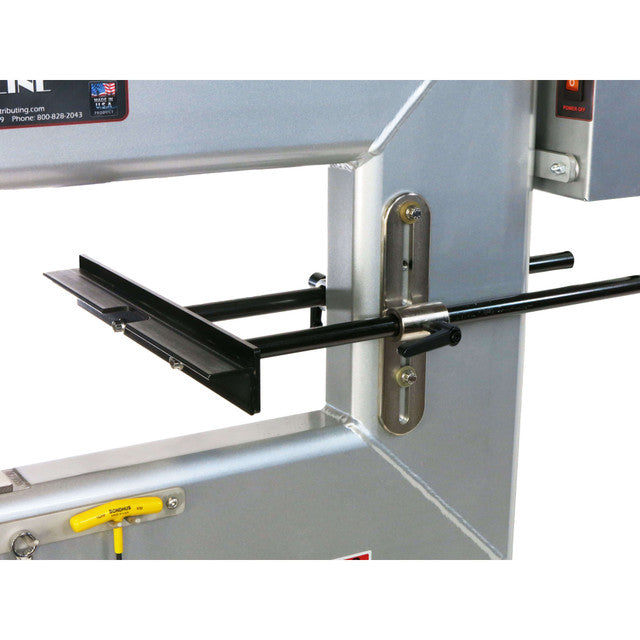

Using 16mm square shank Pullmax tooling, there is a wide range of tool-dies available and you can also make your own giving you endless choice. The included straight and contour also ensure accurate and repeatable work.

mini-Max Details

  • 3/4 hp single phase, 110 volt motor
  • Rated for up to 16 gauge mild steel
  • 0.090" stroke
  • User controllable 0-1150 strokes per minute

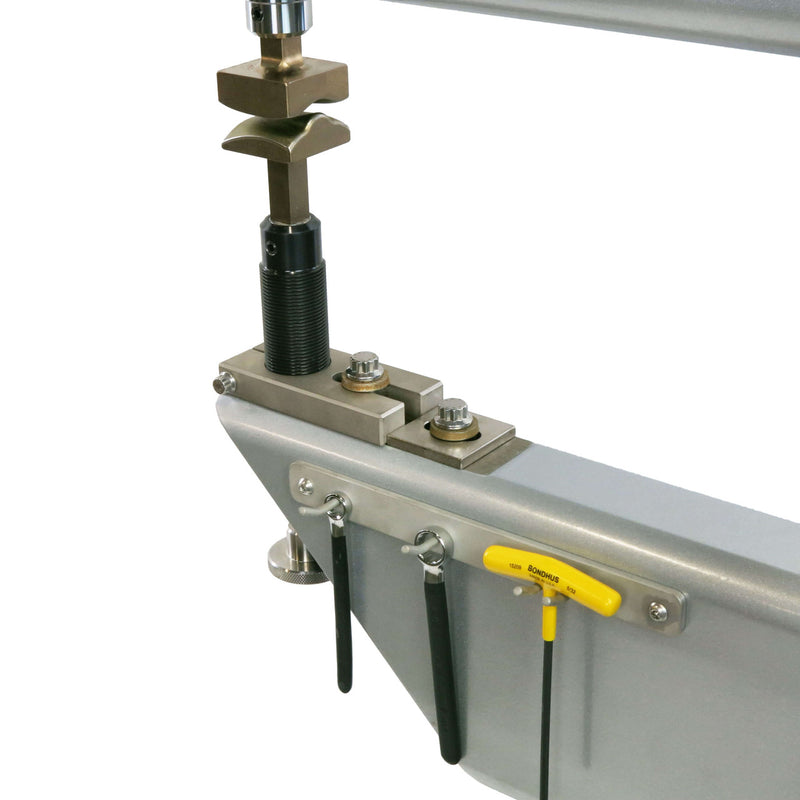

  • Height adjustable lower die holder offers quick tooling changes.
  • 18in throat depth with 9in height.
