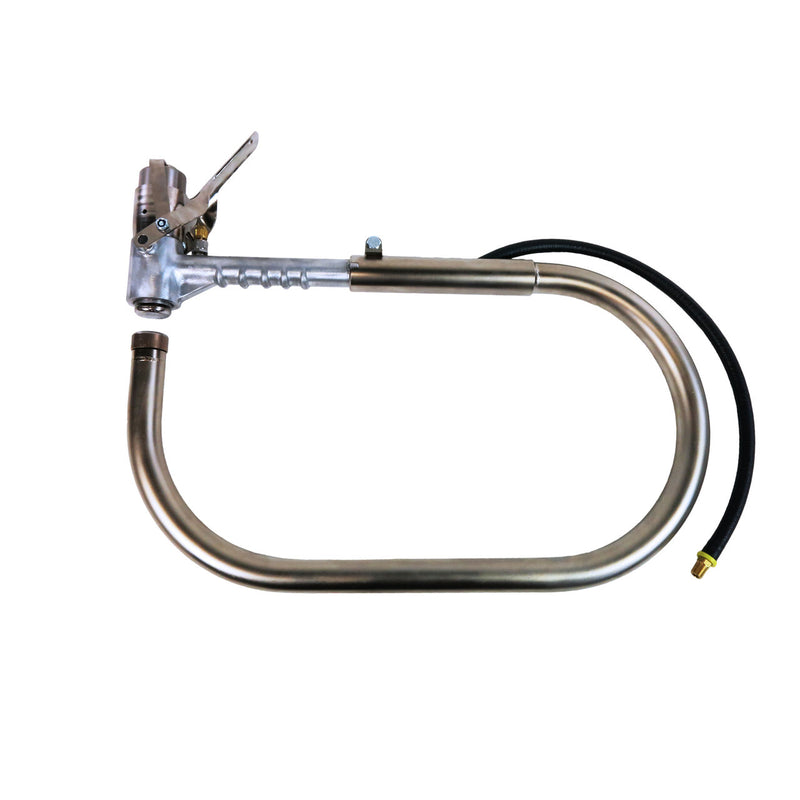

ProLine 180-90 Hand-Held Planishing Hammer

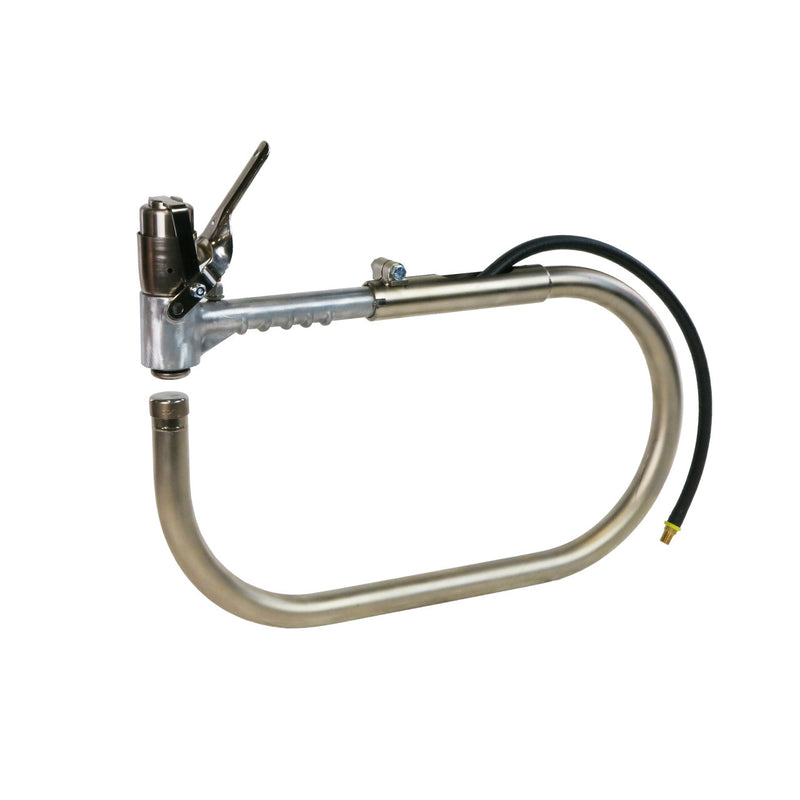

ProLine 180-90 Hand-Held Planishing Hammer Angle

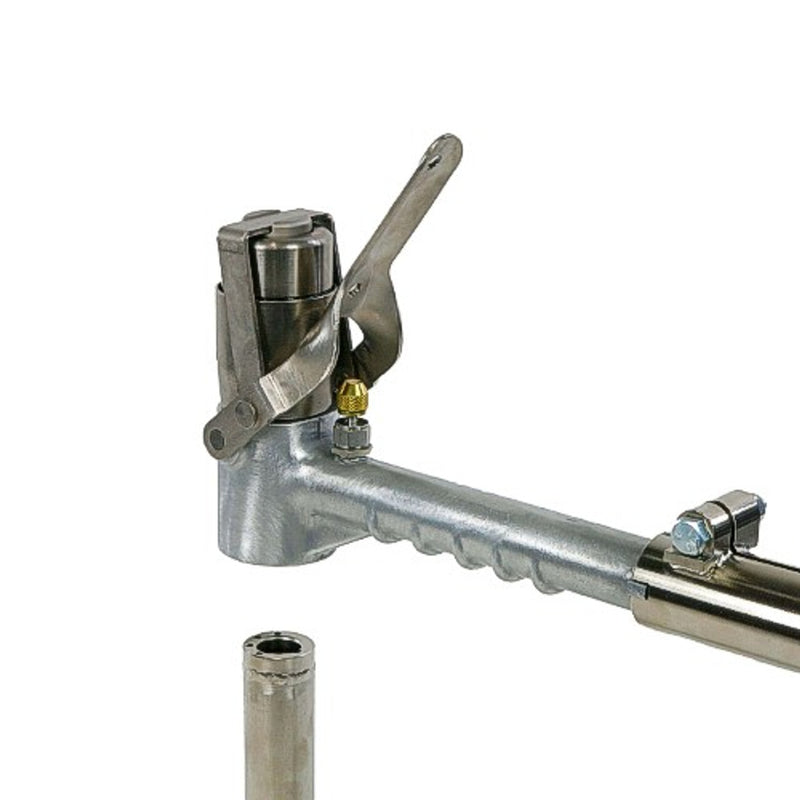

ProLine 180-90 Hand-Held Planishing Hammer Air Motor

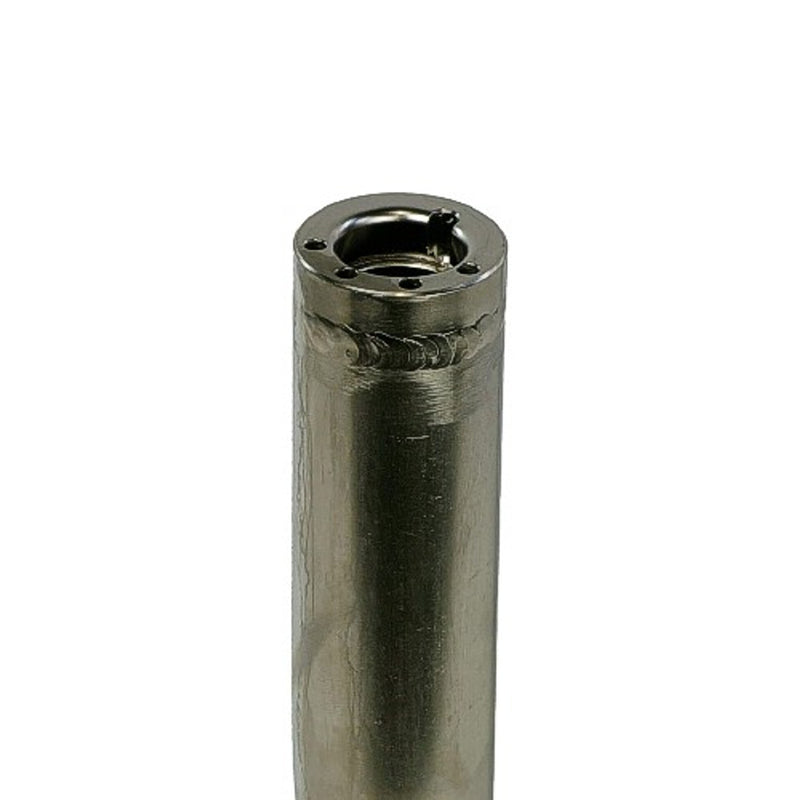

ProLine 180-90 Hand-Held Planishing Hammer CP Style Tooling Holder

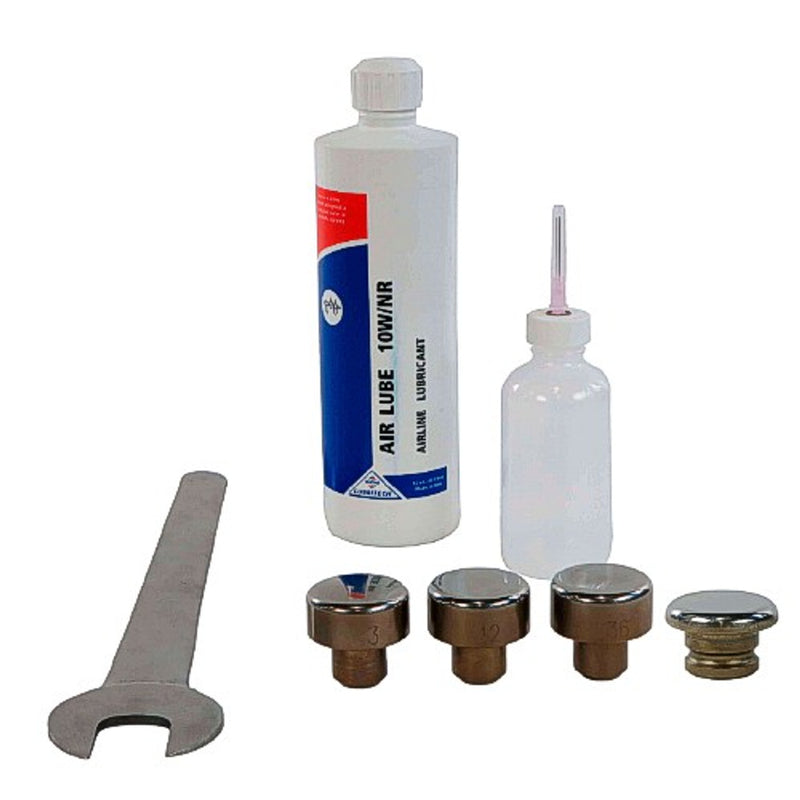

ProLine 180-90 Hand-Held Planishing Hammer Tools and Accessories
ProLine 180-90 Hand-Held Planishing Hammer
ProLine 180-90 Hand-Held Planishing Hammer Angle
ProLine 180-90 Hand-Held Planishing Hammer Air Motor
ProLine 180-90 Hand-Held Planishing Hammer CP Style Tooling Holder
ProLine 180-90 Hand-Held Planishing Hammer Tools and Accessories

ProLine 180-90 Hand-Held Planishing Hammer

SKU: 030078  by ProLine
Made in the USA

$2,995.00 - $2,995.00
$2,995.00
$2,995.00 - $2,995.00
$2,995.00
Availability:
5+ in stock, ready to be shipped

Call for our Best Deal (855) 605-4599

  • Yoke angles: 180° / 90° — flat-panel and tight-radius access
  • CP-style tooling — compatible with the full ProLine and aftermarket CP die range
  • Includes upper die plus 3R, 12R, and 36R lower dies
  • Shares air motor with the ProLine 90-120-60 — yokes interchangeable on one body
  • 22.75" throat depth, 10.5" throat height
  • 17 lbs — lightweight for in-situ handheld use
  • Requires 80-120 PSI @ 13 CFM shop air
  • 1-year manufacturer warranty
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Product Downloads

Download ProLine3 Hand-Held Planishing Hammer Manual

ProLine 180-90 — CP-Style Handheld Yoke (180° / 90°)

The ProLine 180-90 is one of two yoke configurations available for the ProLine handheld pneumatic planishing hammer platform. The 180° / 90° yoke angles work best for flat-panel and tight-radius access — reaching deep into a panel along a straight or near-straight line where the wider angles of the 90-120-60 don't fit.

It runs the same purpose-built air motor as the 90-120-60 yoke configuration — the air motor and head can be interchanged between yokes quickly, so shops that need access to multiple angles often run both yokes on a single air-motor body.

CP-Style Tooling

The ProLine handheld platform uses standard Chicago Pneumatic-style tooling, giving you access to a wide range of die options from multiple sources, including ProLine's own die range and aftermarket CP-compatible dies.

ProLine 180-90 Details

  • Yoke angles: 180° / 90°
  • 22.75" throat depth, 10.5" throat height
  • CP-style tooling — includes upper die plus 3R, 12R, and 36R lower dies
  • Includes die extraction tool, oil, and special oil bottle
  • Weighs 17 lbs — lightweight for in-situ handheld use
  • Requires 80-120 PSI / 13 CFM shop air
  • 1-year manufacturer warranty

For the alternative yoke configuration, see the ProLine 90-120-60. To browse all ProLine planishing hammers including pedestal and cast-iron production models, see ProLine planishing hammers.
