ProLine 18 Piece Planishing Hammer Die Set

SKU: 080019  by ProLine
Made in the USA
Save $115.00 Save $115.00
Original price $1,440.00
Original price $1,440.00 - Original price $1,440.00
Original price $1,440.00
Current price $1,325.00
$1,325.00 - $1,325.00
Current price $1,325.00
  • No Sales Tax (Except for CO)
  • Realtime Shipping Quotes including LTL
  • Authorized Dealer
  • Backed by Manufacturer's Warranty
  • Expert Advice & Free Lifetime Support
Availability:
5+ in stock, ready to be shipped

Call for our Best Deal (855) 605-4599

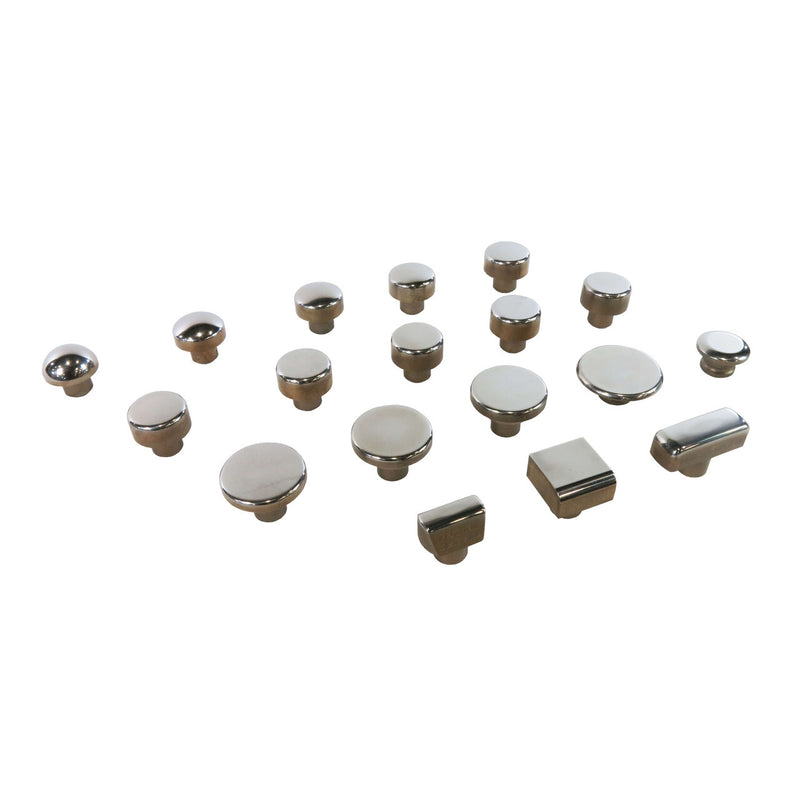

18 Piece Planishing Hammer Die Set to Suit ProLine / Chicago Pneumatic Planishing Hammers

This 18 piece planishing hammer die set from ProLine is a high quality set of dies made from hardened and polished S7 tool steel to not only give you a great finish but also last a life time.

The 18 piece set complements the dies that come with your ProLine Planishing Hammer to form a complete set but can also be used with any Chicago Pneumatic / CP style planishing hammer.

Kit Includes:

  • 2.375in OD flat face top die
  • 1.5in OD reverse curve top die
  • 1.5in OD lower dies - .78in, 1in, 1.5in, 2in, 4in, 5in, 6in, 9in and 24in radius and flat
  • 2.0in OD lower dies - 12in, 24in and 36in radius
  • Linear Stretch Die
  • Rectangular die - 0.875in x 2.5in : approx 24R x 4R
  • Square die - flat with one edge 0.3R approx.

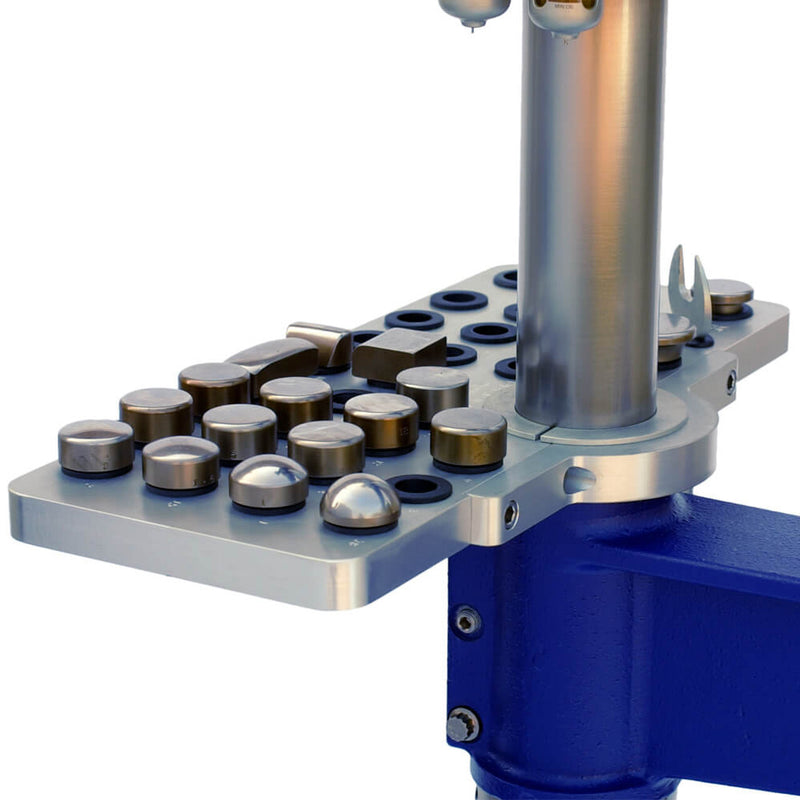

*Shown with optional die rack
