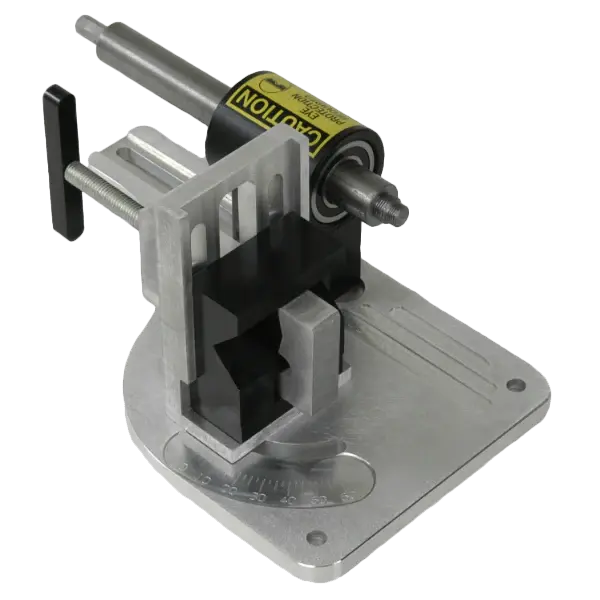

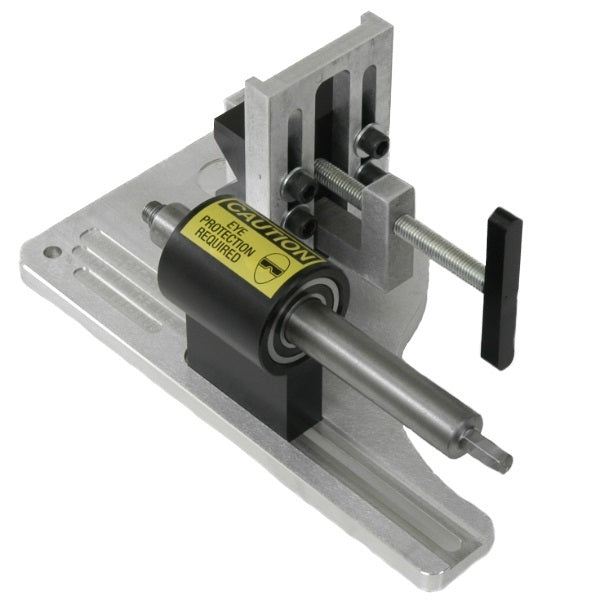

Pro-Tools Pro+ Pipe and Tube Notcher
Pro-Tools Pro+ Pipe and Tube Notcher Front
Pro-Tools Pro+ Pipe and Tube Notcher Side
Pro-Tools Pro+ Pipe and Tube Notcher

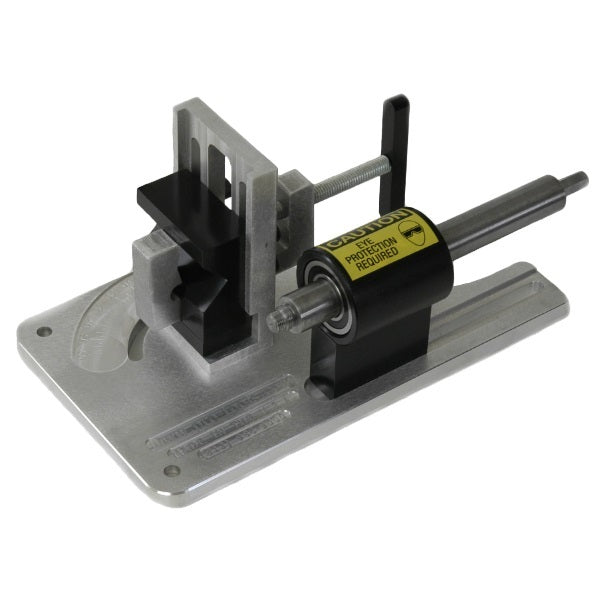

Pro-Tools Pro+ Pipe and Tube Notcher Front
Pro-Tools Pro+ Pipe and Tube Notcher Side

Pro-Tools Pro+ Pipe and Tube Notcher

SKU: N-501  by Pro-Tools
Made in the USA
$389.00 - $389.00
$389.00
$389.00 - $389.00
$389.00
  • ✅ No Sales Tax (Except for CO)
  • ✅ Authorized Dealer
  • ✅ Save 3% with ACH / Wire Payment
  • ✅ Expert Advice & Free Lifetime Support
Availability:
5+ in stock, ready to be shipped

Call for our Best Deal (855) 605-4599

Pro-Tools Pro+ Pipe and Tube Notcher Capacaties

Round Tube:

  • Min outside diameter - 1/2"
  • Max outside diameter - 2"

Pipe:

  • Min Size - NPS 1/4"
  • Max Size - NPS 1-1/2"

Pro-Tools Pro+ Pipe and Tube Notcher Specs

  • Notch Angle - 0-60 degrees
  • Offset Notching - Up to 1/2 the OD of your pipe or tube
  • Minimum Drill Chuck Size - 1/2"
  • Minimum Chuck-to-Table Clearance in Drill Press - 16"
  • Arbor Thread Sizes - 1/2-20 and 5/8-18
  • CNC Engraved degree finder - lets you quickly and accurately set your notch angles.
  • 100% USA Made - Designed, Machined and Assembled in the USA
  • Hand-Drill or Drill Press Operation - easily cope pipe and tube with either a hand-drill or in a drill press - including hte ability to perform offset nothcing in the drill press.
  • 1-Year Manufacturer Warranty
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Perform Straight, Angled and Offset Pipe and Tube Notching

The Pro-Tools Pro+ Pipe and Tube Notcher incorporates an adjustable vice that lets you change the height of the pipe or tube you are notching to perform offset notches, allowing you to mate different sized pipes together in configurations off-center.

With capacity for up to 2" Tube and 1-1/2" Pipe, quick change tooling, a 1" shaft that rides on dual ball-bearings and CNC machined parts, the Pro-Tools Pro+ Pipe and Tube Notcher is ready for day to day coping and notching.
