Pro-Tools Hydraulic 105 Series Heavy Duty Pipe and Tube Bender - Base Kit

Pro-Tools Hydraulic 105 Series Heavy Duty Pipe and Tube Bender - Base Kit

by Pro-Tools
SKU B-105-HD-HYD-1
$594.99 - $794.98
$594.99
$594.99 - $794.98
$594.99

Questions? Call (855) 605-4599

Degree Ring

Pro-Tools 105-HD Specifications

Round Tube

  • Minimum Outside Diameter - 1/2"
  • Maximum Outside Diameter - 2"
  • Maximum Wall Thickness - 0.134"

Pipe

  • Minimum Size - 1/4"
  • Maximum Size - 1-1/2"
  • Rated for bending Schedule 40 Mild Steel - please contact us for other applications.

Square Tube

  • Minimum Size - 1/2"
  • Maximum Size - 1-1/2"
  • Minimum Wall Thickness - 0.065"
  • Maximum Wall Thickness - 0.125"

Other Details

  • Minimum Centerline radius (CLR) - Approx 3 x OD
  • Maximum Centerline Radius - 7"
  • Maximum Bend Angle - 180° (dependent on die)
Made in the USA
Request a quote
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

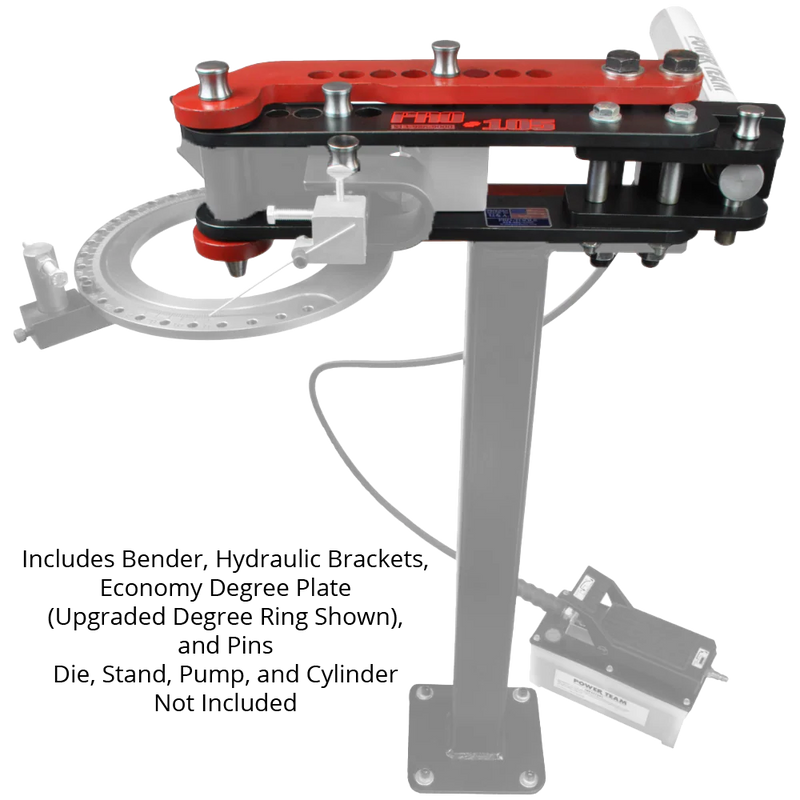

Hydraulic Pipe and Tube Bender Basic Kit

Made in the USA

This Basic Kit from Pro-Tools gives you the platform to build a hydraulic pipe and tube bender. The kit includes the following:

  • Pro-Tools 105 Heavy Duty Pipe and Tube Bender
  • Brackets and hardware for mounting hydraulic cylinder
  • Economy Degree Plate with Pointer
  • All Pins
  • Tensioning Bolt

To complete this bender, you need to add the following:

  • 10-ton Hydraulic cylinder
  • Air-hydraulic or electric-hydraulic pump
  • Stand
  • Die(s)

Suitable for bending round tube from 1/2" to 2", square tube from 1/2" to 1-1/2" and schedule 40 pipe from 1/4" to 1-1/2", the Pro-Tools 105-HD is ideal for roll-cage fabrication, chassis fabrication, hand rails and more.

Hundreds of Dies to Choose From

In addition to a great bender, Pro-Tools also has a full range of dies in various centerline radius (CLR) to suit your needs.
