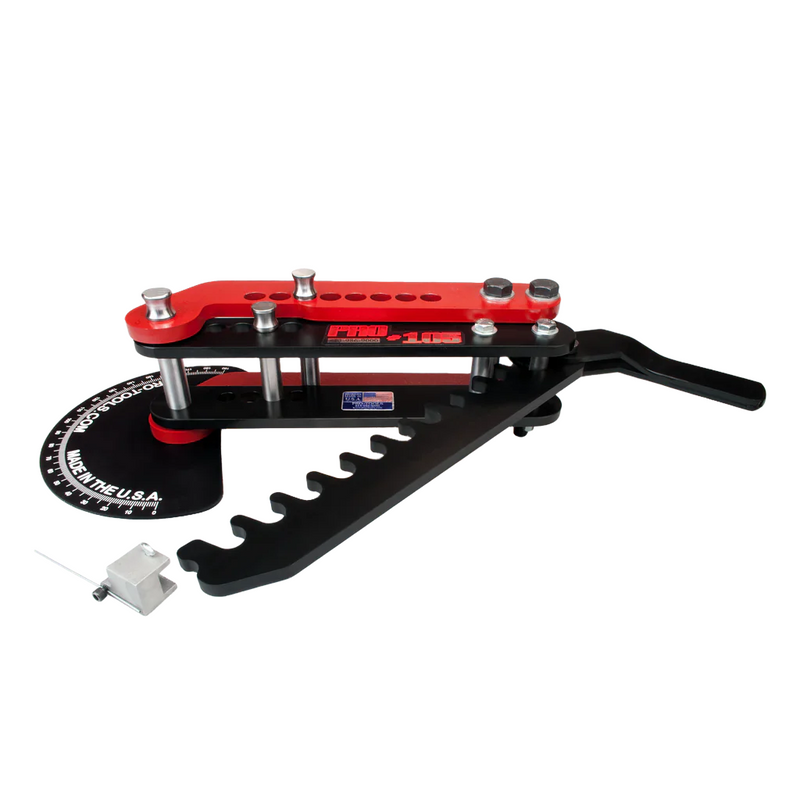

Pro-Tools 105-HD Pipe and Tube Bender

Pro-Tools 105 Series Heavy Duty Pipe and Tube Bender

by Pro-Tools
SKU B-105-HD/DPPTR
$499.00 - $499.00
$499.00
$499.00 - $499.00
$499.00

Questions? Call (855) 605-4599

Pro-Tools 105-HD Specifications

Round Tube

  • Minimum Outside Diameter - 1/2"
  • Maximum Outside Diameter - 2"
  • Maximum Wall Thickness - 0.134"

Pipe

  • Minimum Size - 1/4"
  • Maximum Size - 1-1/2"
  • Rated for bending Schedule 40 Mild Steel - please contact us for other applications.

Square Tube

  • Minimum Size - 1/2"
  • Maximum Size - 1-1/2"
  • Minimum Wall Thickness - 0.065"
  • Maximum Wall Thickness - 0.125"

Other Details

  • Minimum Centerline radius (CLR) - Approx 3 x OD
  • Maximum Centerline Radius - 7"
  • Maximum Bend Angle - 180° (dependent on die)
Made in the USA
Request a quote
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Manual Pipe and Tube Bender Made in the USA

The Pro-Tools 105-HD Pipe and Tube Bender is 100% Designed, Machined and assembled right here in the USA, ensuring you get the highest quality bender.

Suitable for bending round tube from 1/2" to 2", square tube from 1/2" to 1-1/2" and schedule 40 pipe from 1/4" to 1-1/2", the Pro-Tools 105-HD is ideal for roll-cage fabrication, chassis fabrication, hand rails and more.

Hundreds of Dies to Choose From

In addition to a great bender, Pro-Tools also has a full range of dies in various centerline radius (CLR) to suit your needs.

Pro-Tools HD-105 Includes:

  • CNC Machined Bender
  • Economy Degree Plate and Pointer
  • U-Strap Pin, Center-Axis Pin, Backing Block Pin, Large Swing Arm Pin, Ratchet Handle Pin and Small Swing Arm Pin
  • Tensioning Bolt
  • 1Yr Manufacturer Warranty
