Mittler Bros. Ultimate Tube Notcher - Single Speed

Name: Mittler Bros. Ultimate Tube Notcher - Single Speed
Brand: Mittler Bros.
SKU: 400-S
Price: 4695.0 USD
Availability: InStock

by Mittler Bros.

SKU 400-S

$4,695.00 - $4,695.00

$4,695.00

$4,695.00 - $4,695.00

$4,695.00

Call now for a Deal (855) 605-4599

Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Quantity

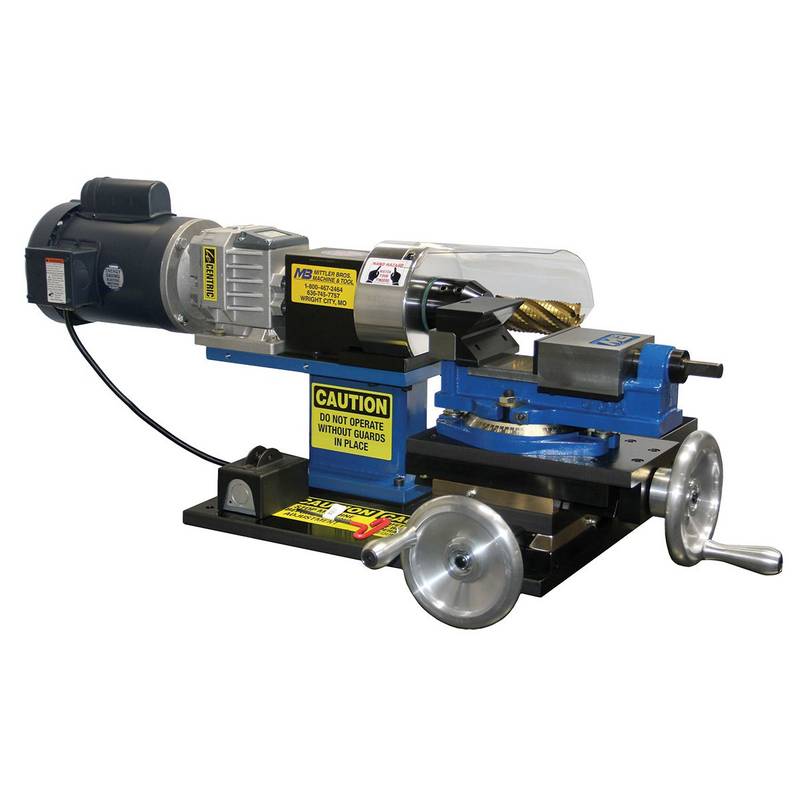

The Ultimate way to Cope and Notch Pipe and Tube

With its end-mill design and 130rpm 1HP motor, the Ultimate Tube Notcher from Mittler Bros. provides quick, accurate and quite tube notching for tube sizes 3/4in to 2in with the highest quality ready to TIG joints in minimal time.

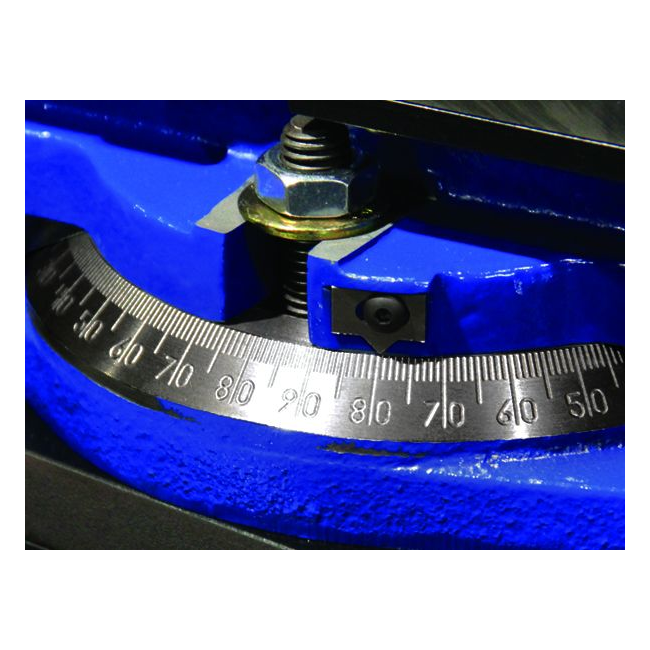

1-degree Swivel Vise with V-Block Clamping

The V-Block design offers quick and easy clamping of your tube and ensures the tube is centered every time. Coupled with swivel base with degree wheel showing 1-degree increments means you can setup your tube for the desired angle without fuss, saving time and getting tho job done quickly.

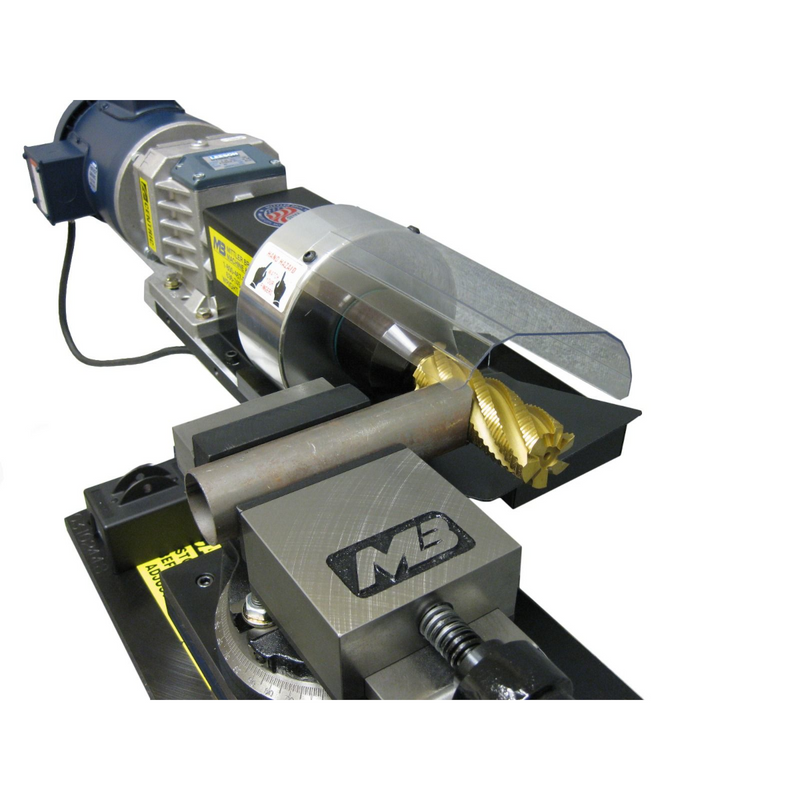

End Mill Design Offers High Speed Metal Removal

The End Mill design allows you to engage the tool across the entire length of the cope letting you remove metal quickly and get the notch done in record time. Titanium Nitride (TiN) coated end mills provide long life cutting without the need for coolant, making the process clean and minimizing clean up - simply empty out the included chip tray and dust the machine down to ensure long machine life.

Ultimate Tube Notcher Details:

1 HP 115V Single Phase motor lets you work in any workshop or can be run off a generator for mobile applications.
Vise Capacity - 3/4in to 2in tubing.
- Standard Vise - optional height adjustable vise available for offset notching.
V-block clamping design ensures tube is always centered.
End-mill design ensures rapid metal removal and minimal deburring, giving TIG weld ready joints in most applications without post-cleanup.
Long life TiN coated end-mills. No replacing Hole-saws every other cut.
- Full range of end-mills available from 1/2in to 2-3/8in tube
- Pipe sized end mills available from 1in to 2in.
No coolant needed ensuring easy cleanup.
