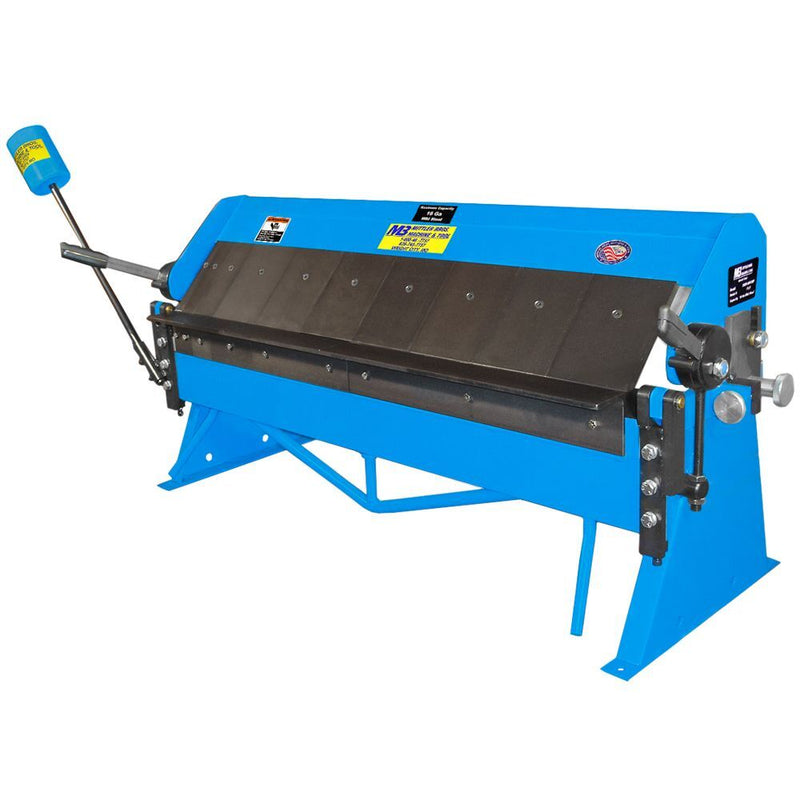

Mittler Bros. Ultimate 48" 16-Gauge Box & Pan Brake (2800-48-16)

SKU 2800-48-16
Original price $3,950.00 - Original price $3,950.00
Original price
$3,950.00
$3,950.00 - $3,950.00
Current price $3,950.00

Questions? Call (855) 605-4599

  • 48" Wide with 49" clearance
  • Unique 3-finger design with removable upper, apron and bed fingers allowing maximum flexibility with bends.

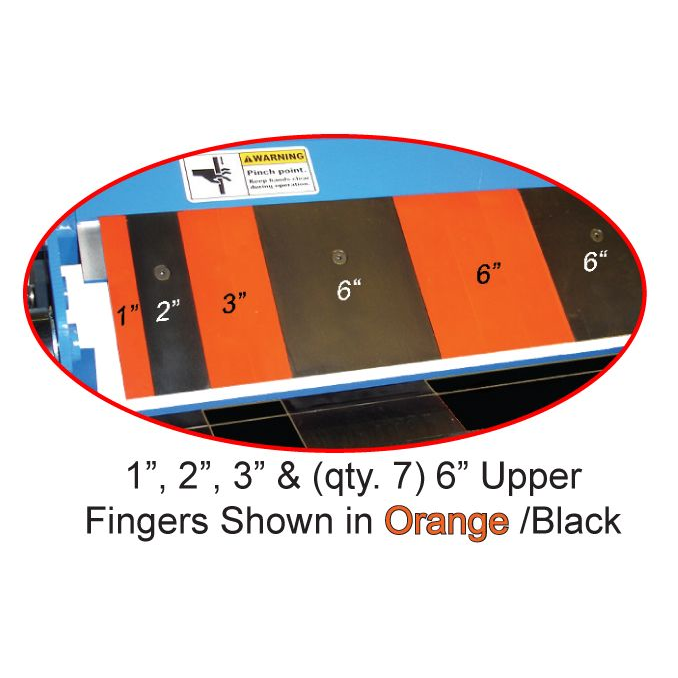

  • 1", 2" 3" and 7 x 6" Upper Fingers

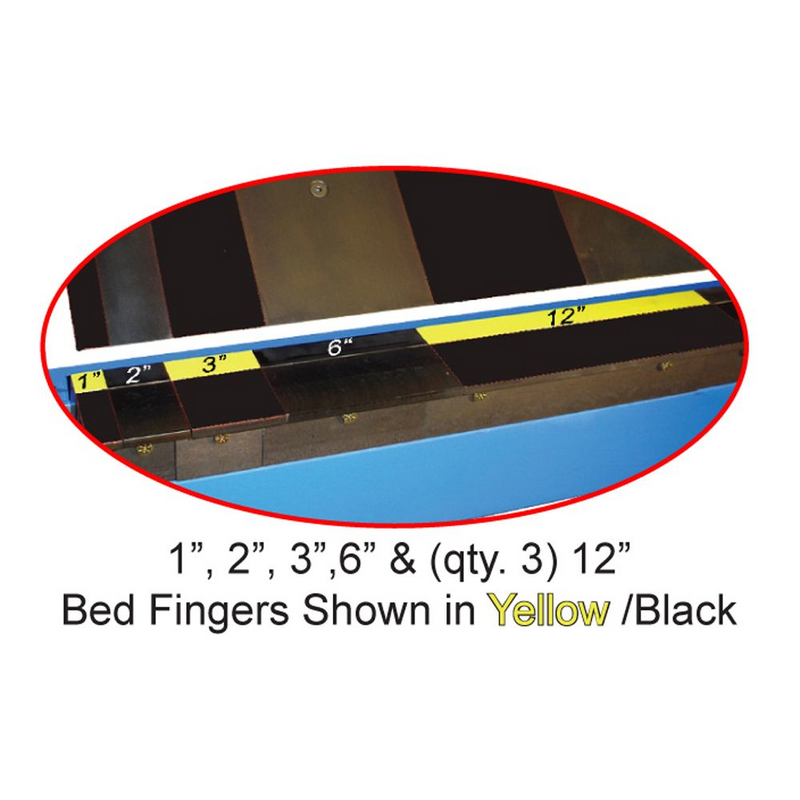

  • 1", 2", 3", 6" and 3 x 12" Bed Fingers

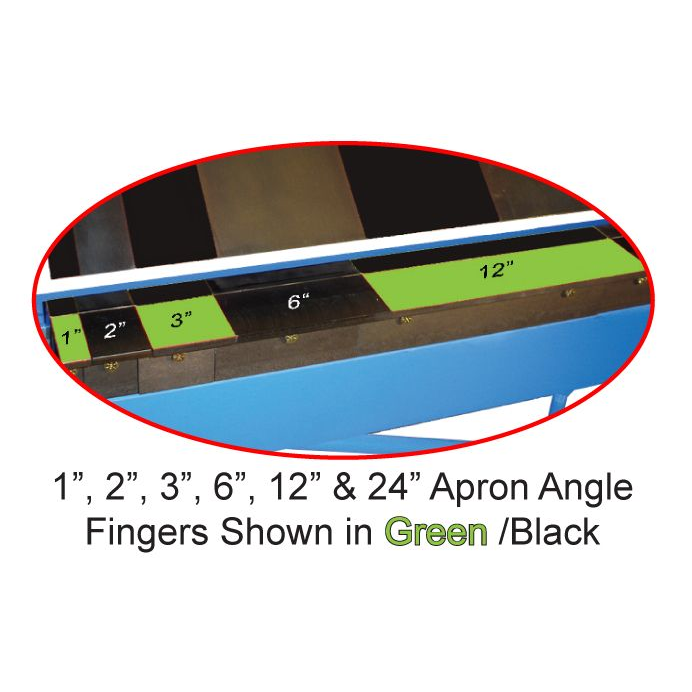

  • 1", 2", 3", 6", 12" and 24" Apron Angle Fingers
  • 16-gauge Mild Steel, 12-gauge Aluminum and 20-gauge stainless capacity.
  • 3-1/2" Box Depth
  • 1-1/2" lift of beam
  • 125° Bend Angle
  • Min 1/4" reverse bend with optional 1/4" Apron Fingers.

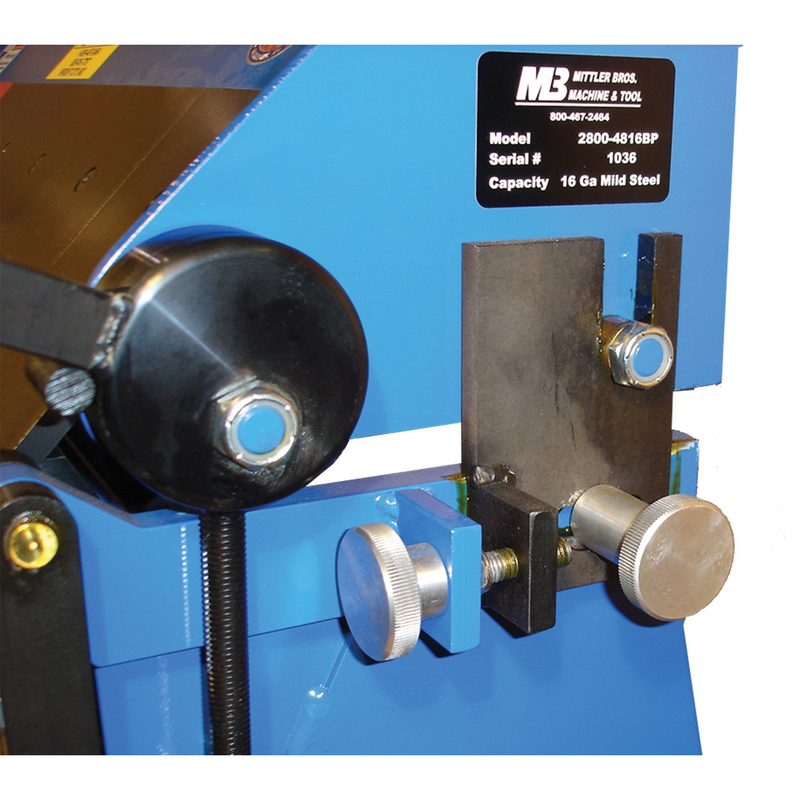

  • Tool-less 1" Front to Rear Adjustment to cater for different materials.
  • Optional Radius Fingers available.
  • Weighs 585 lbs
Request a quote
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Made in the USA

Mittler Bros. Ultimate Box and Pan Brake Makes Bends other Sheet Metal Brakes Wont.

With is adjustable and removable Upper, Apron and Lower fingers, the ability to change apron fingers for different thickness fingers and the option for radius upper fingers, the Mittler Bros. Ultimate Box and Pan Brake allows you to make bends not possible on other brakes making it ideal for automotive fabrication shops.
