Mittler Bros. Precision Machined English Wheel Parts Kit

Precision DIY English Wheel Parts Kit from Mittler Bros.

Looking to build your own English Wheel and need a good base to start from? The Precision Machined English Wheel Part Kit from Mittler Bros. gives you all the core items required for a DIY English Wheel leaving you to fabricate a frame of your own design.

7-inch upper, 2-inch wide wheels ideal for DIY English Wheel Builds

With a 7-inch wide upper wheel and 2-inch wide x 2-1/2inch diameter lower anvils, all precision machined and hardened, the 2900-KM kit is ideal for all DIY English Wheel builds from smaller bench-top designs all the way up to larger 35-40-inch throat depth machines.

Precision Adjustable Lower Yoke and Cam-Action Upper Wheel

The precision machining doesn't stop with the wheels, this kit also includes the same high quality lower yoke with adjustable anvil angle as used on all Mittler Bros. English Wheels to get your wheels lined up, high quality pressure adjustment and kick-wheel along with quick release cam-action top wheel so you can change wheels with ease.

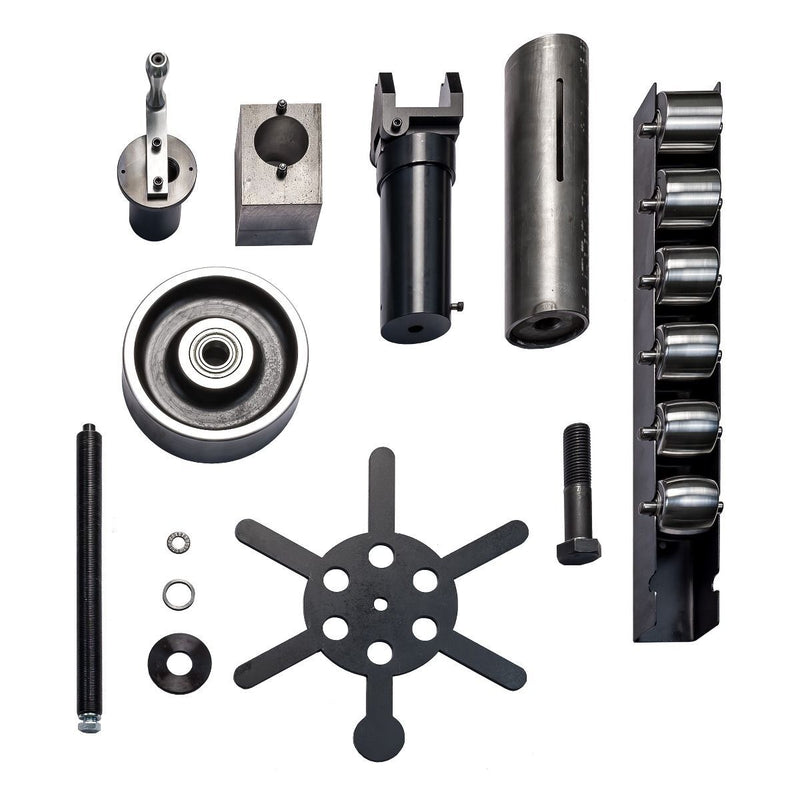

What's included with the 2900-KM:

• 7-inch x 2-inch precision CNC machined upper wheel.
• 6 x 2-inch wide, 2-1/2-inch diameter flat-top lower anvils
  • Flat
  • 12-inch radius x 3/4-inch flat top
  • 8-1/2-inch radius x 1/2-inch flat top
  • 5-inch radius x 3/8-inch flat top
  • 3-1/4-inch radius x 1/4-inch flat top
  • 2-3/8-inch radius x 1/8-inch flat top
• Lower Anvil Cradle
• Cam actuated quick-release top-wheel for quick and easy anvil changes.
• Full machined lower anvil yoke with wheel angle adjustment for precision wheel alignment.
• Kick wheel adjuster
• 16-gauge mild steel and 10-gauge aluminum capacity.
