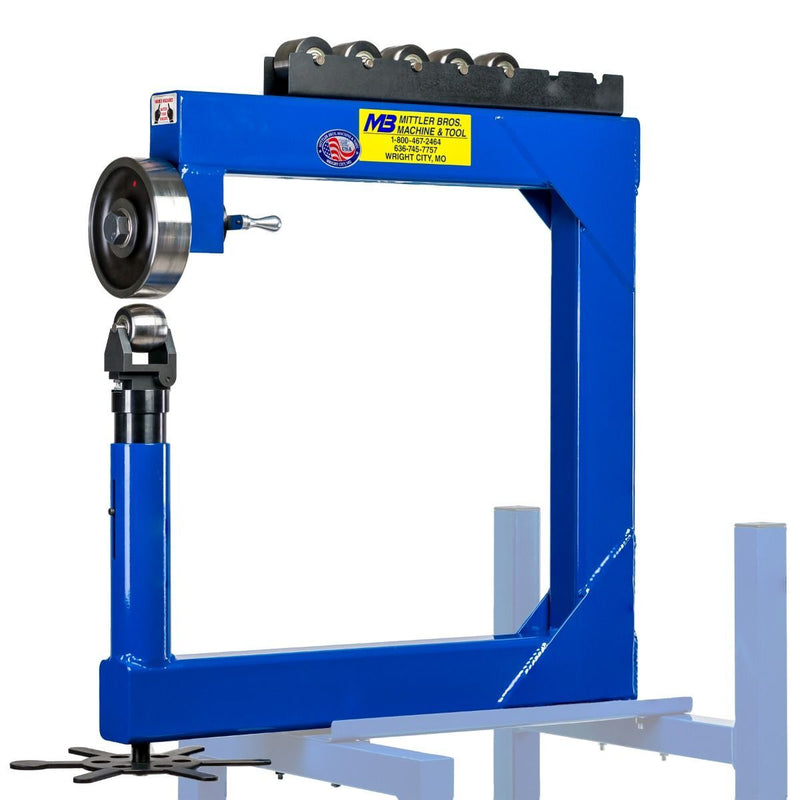

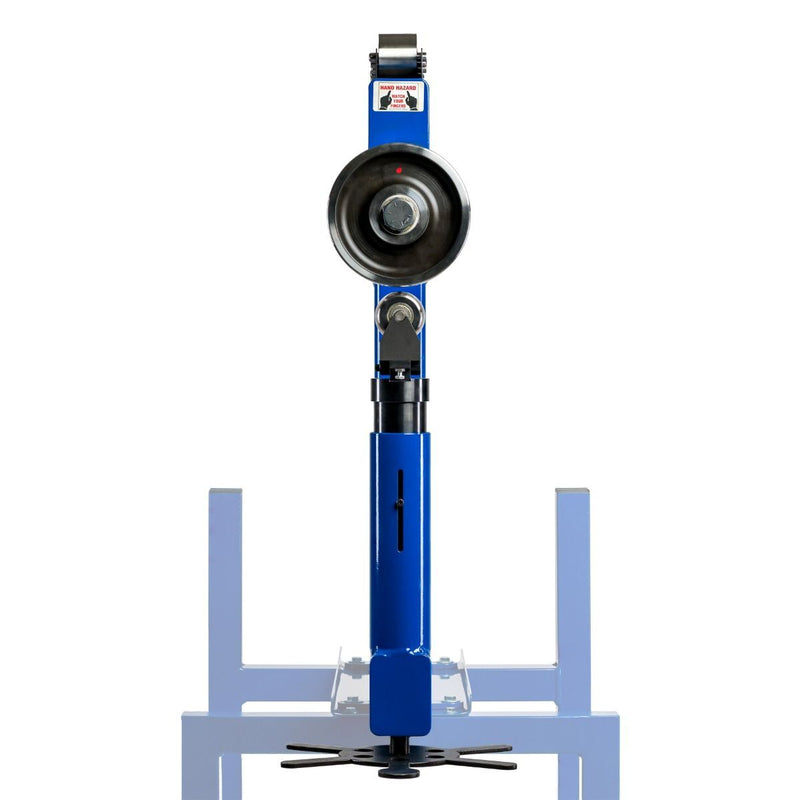

Mittler Bros. Bench Mount English Wheel (2900)

Benchtop English Wheel from Mittler Bros with 26-1/2 inch Throat Depth

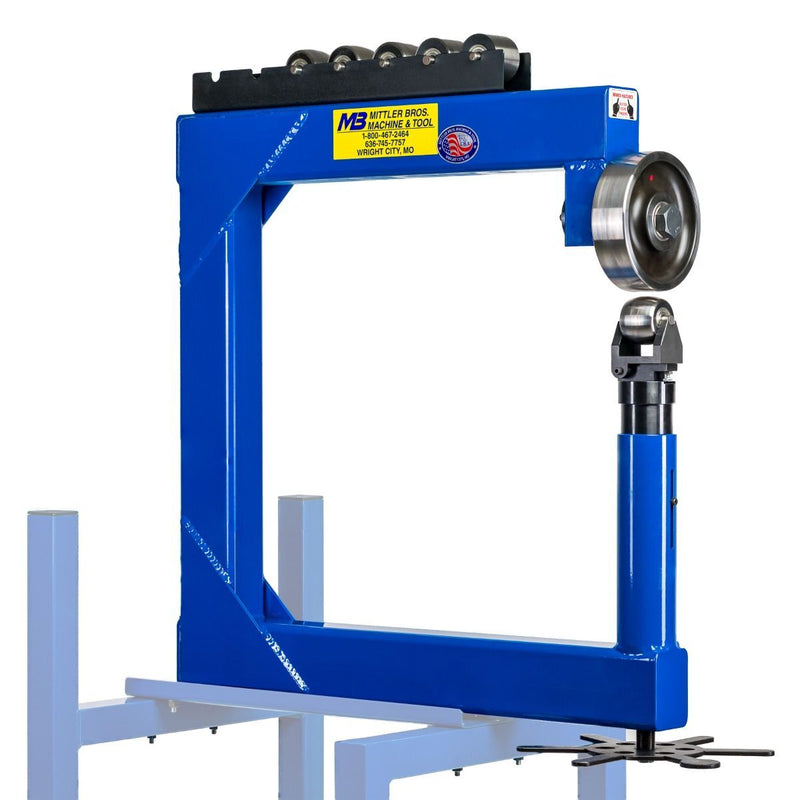

Despite its size, the 2900 Bench Mount English Wheel from Mittler Bros. is a precision English Wheel with capabilities to match larger more expensive wheeling machines.

Made from 3 x 4 x 1/4-inch steel tubing, the frame provides the rigidity required to support the 7-inch x 2-inch upper wheel and adjustable lower 2-inch anvils allowing you to shape up to 16-gauge mild steel or 10-gauge aluminum.

CNC machined and Heat-Treated Wheels

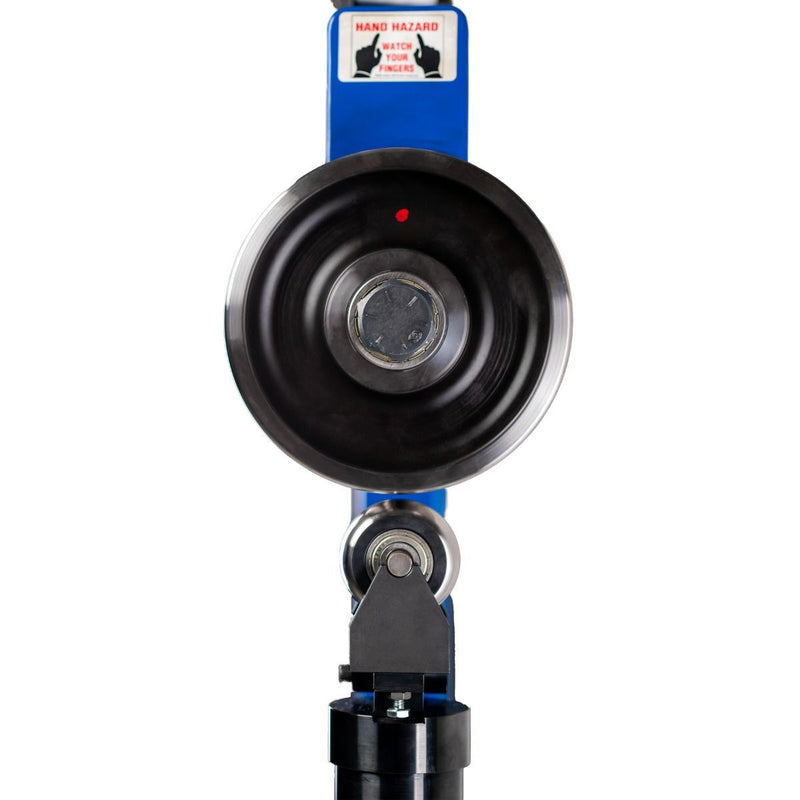

Both upper and lower wheels are precision CNC machined, heat-treated and then hard-turned and polished to ensure the lowest run-out, long service life and great surface finish to provide the highest level of workmanship.

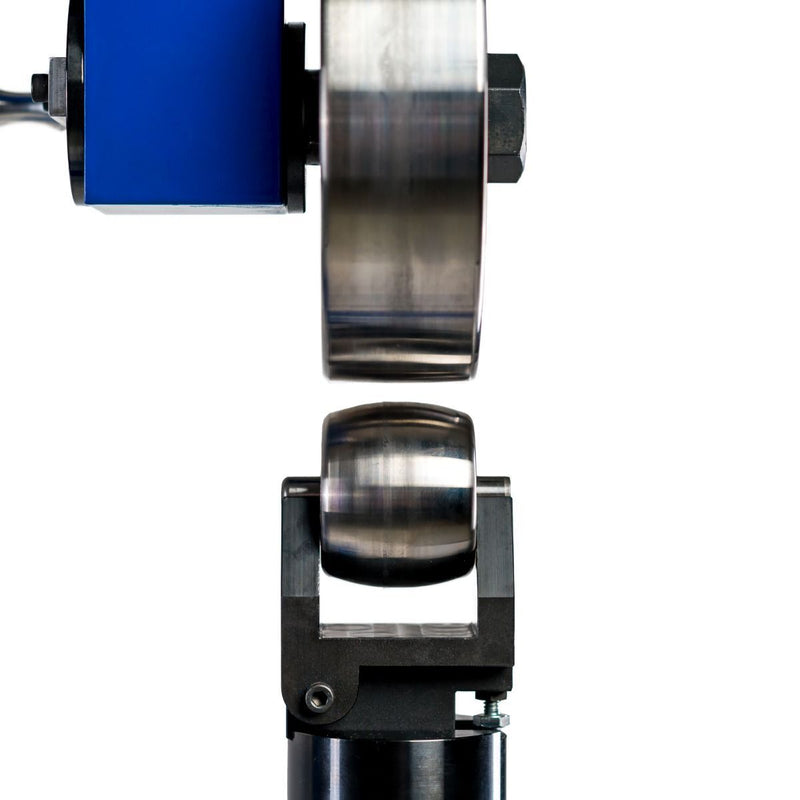

The upper wheel rides on a cam-actuated quick release mechanism allowing you to change lower anvils with ease and the lower anvils ride on a precision machined adjustable yoke allowing you to align upper and lower wheels accurately.

Mittler Bros Bench Mount English Wheel Details:

• Easily mount to a bench-top of in a vise. Optional Stand also available

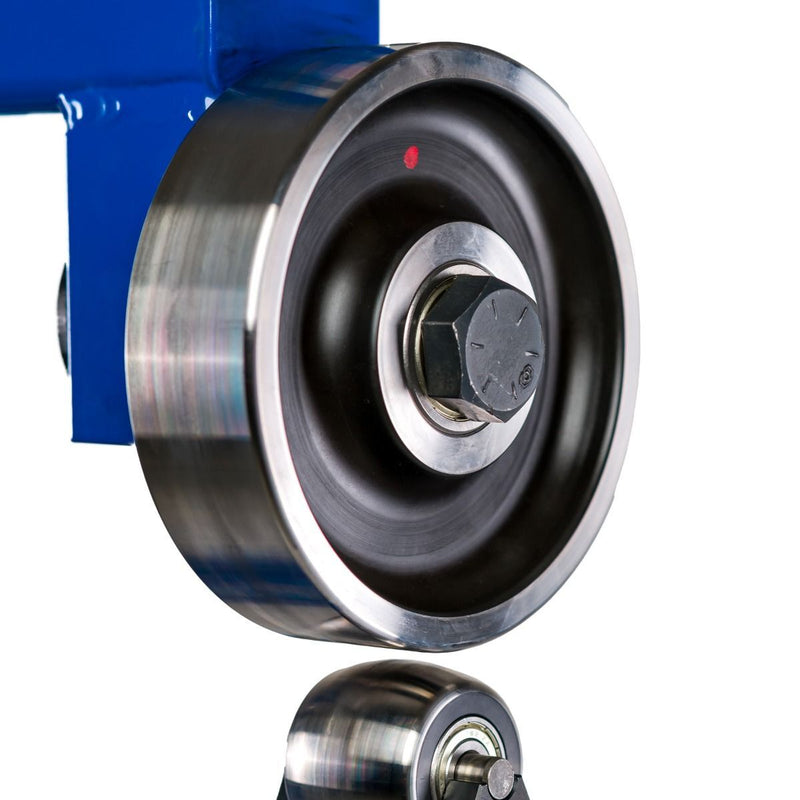

• 7-inch x 2-inch precision CNC machined, heat treated, hard-turned and polished upper wheel.
• 6  2-inch wide, 2-1/2-inch diameter precision CNC machined, heat treated, hard-turned and polished flat-top lower anvils
  • Flat
  • 12-inch radius x 3/4-inch flat top
  • 8-1/2-inch radius x 1/2-inch flat top
  • 5-inch radius x 3/8-inch flat top
  • 3-1/4-inch radius x 1/4-inch flat top
  • 2-3/8-inch radius x 1/8-inch flat top

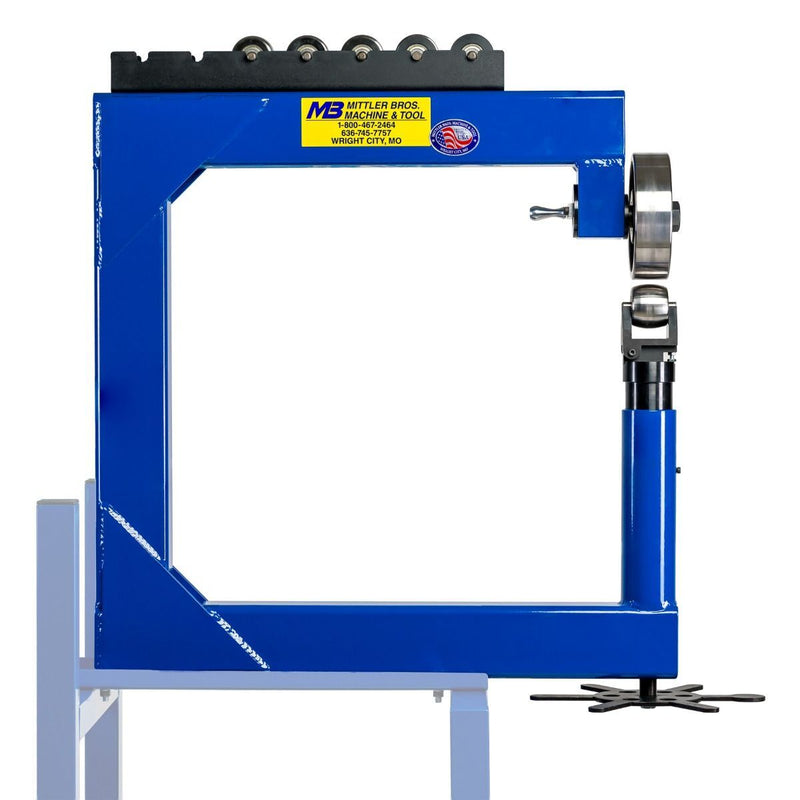

• 26-1/2-inch throat depth accommodating small to medium sized workpieces
• Rigid 3 x 4 x 1/4-inch frame construction.
• Adjustable lower anvil yoke allows for easy alignment of upper and lower wheels.

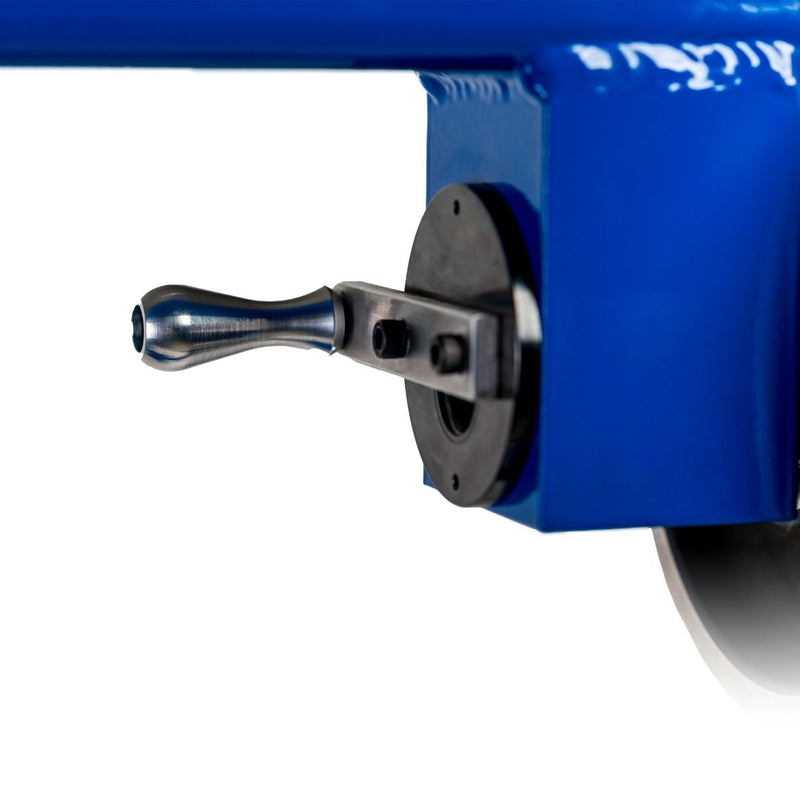

• Cam Action Quick Release on upper wheel allows for easy lower anvil changes.

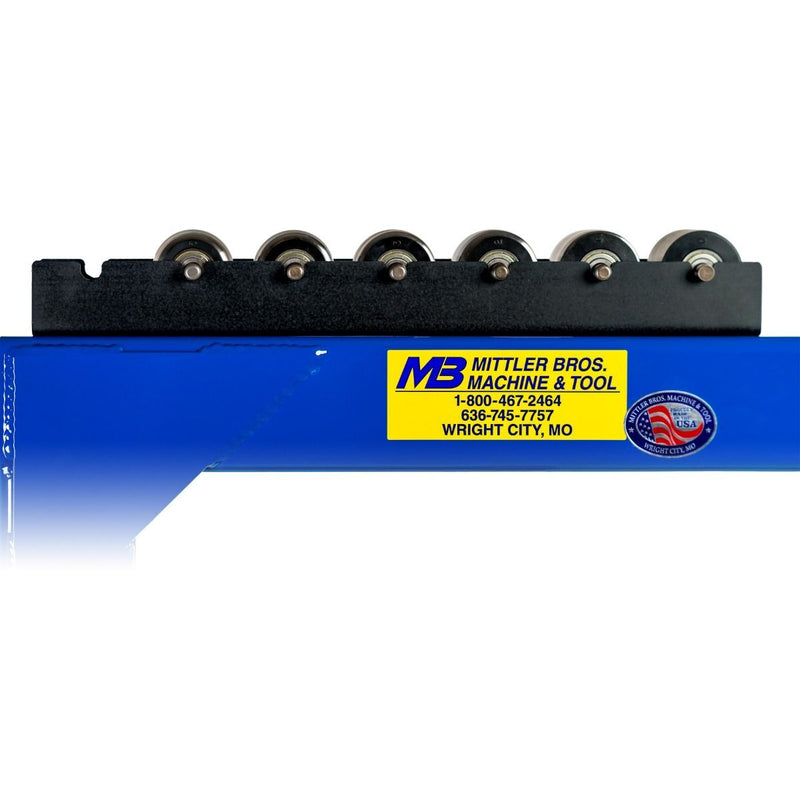

• Convenient lower anvil rack keeps all anvils at hand for easy access.
