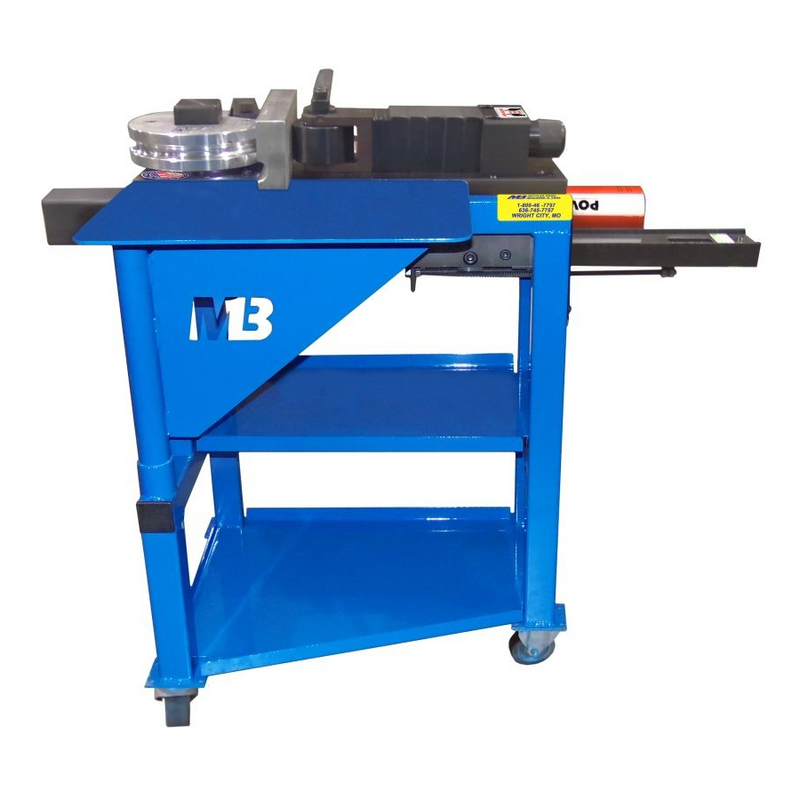

Mittler Bros. 180° Hydraulic Tube Bender
Questions? Call (855) 605 4599
Ships via LTL / Truck Freight
Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.
We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.
LTL Freight has a number of options, depending on your ability to unload the goods.
The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.
Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.
Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.
All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.
If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.
You can view our Shipping Policy Here

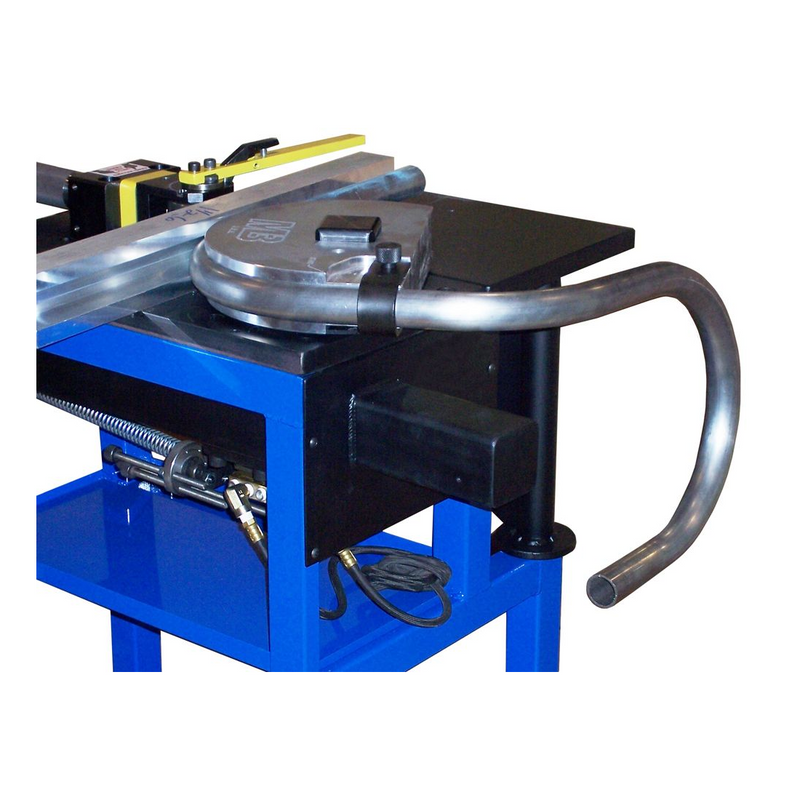

25 Ton Hydraulic Power for 180 degree Tube Bends in 40 Seconds
With its 25 ton Hydraulic Ram, the Mittler Bros. 180° Hydraulic Tube Bender can bend mild steel, stainless, aluminum, 4130 and more up to 180 degrees in as little as 40 seconds making it ideal for roll-cage fabrication, hand-rails, chassis fabrication, nudge bars and more.
Accurate repeatable tube bending
With its digital readout accurate to 1 degree, you can easily create precise bends, with repeatability, each and every time, ensuring high quality production bends time after time.
Mittler Bros. 2500-HD Hydraulic Tube Bender Details
- Bends up to 180 degrees as little as 40 seconds
- Digital readout provides easy to read accuracy and repeatability.
- Rugged Rack and Pinion drive ensures long service life and quick bends.
- Includes portable storage cabinet with shelves and lockable casters
- Max Capacity
- 2" OD Tubing 0.125" Wall
- 1-1/2" Pipe (1.90" OD) 0.145 Wall
- 0.065" Min Wall Thickness
- Square Tubing 3/4" to 2"
- Weighs 500 lbs.
- Requires Air-Hydraulic or Electric-Hydraulic Pump.
