A planishing hammer that can shrink?

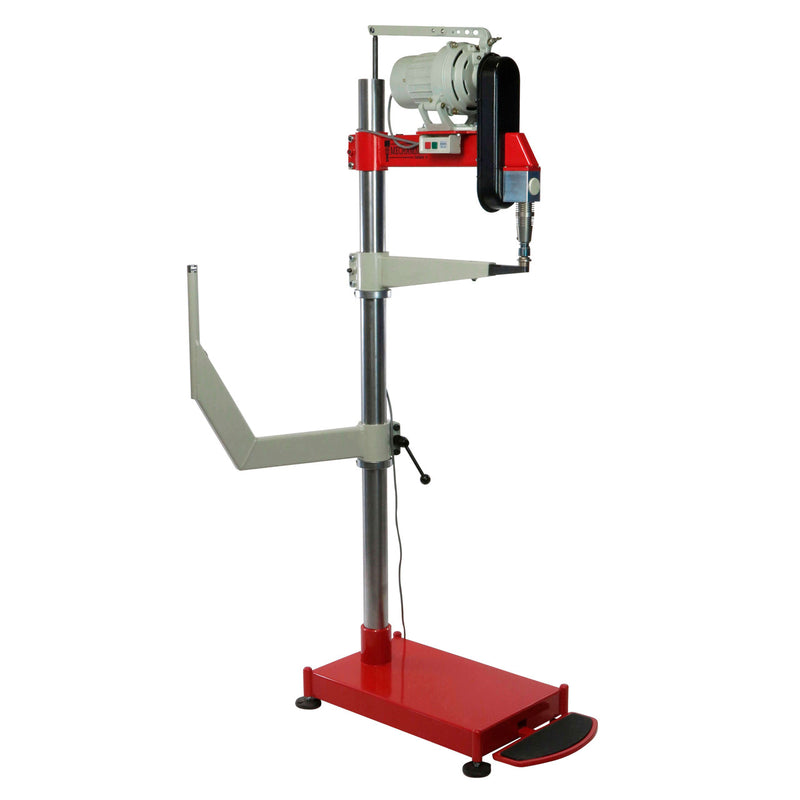

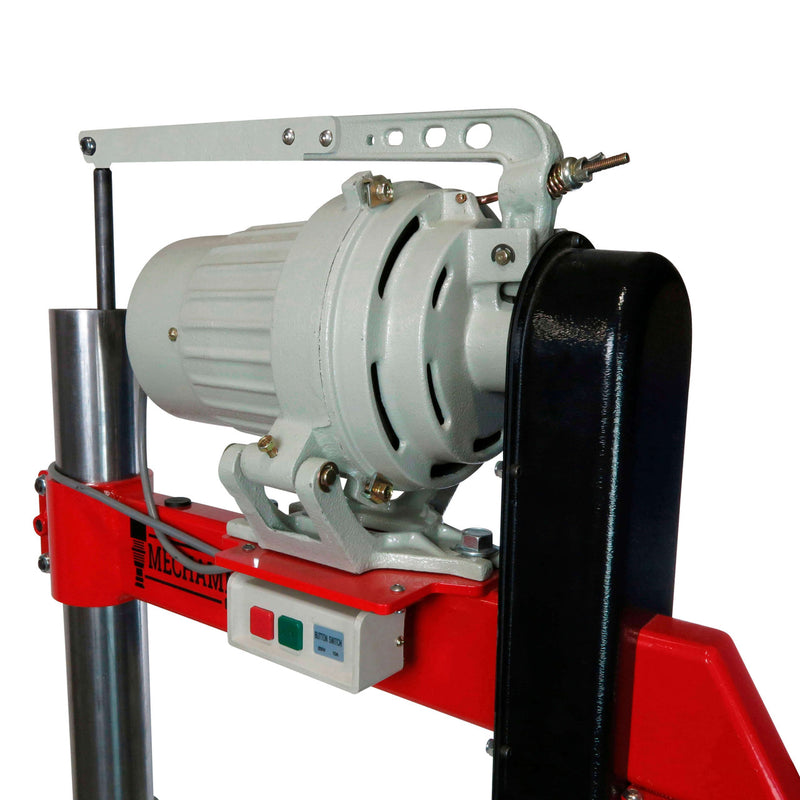

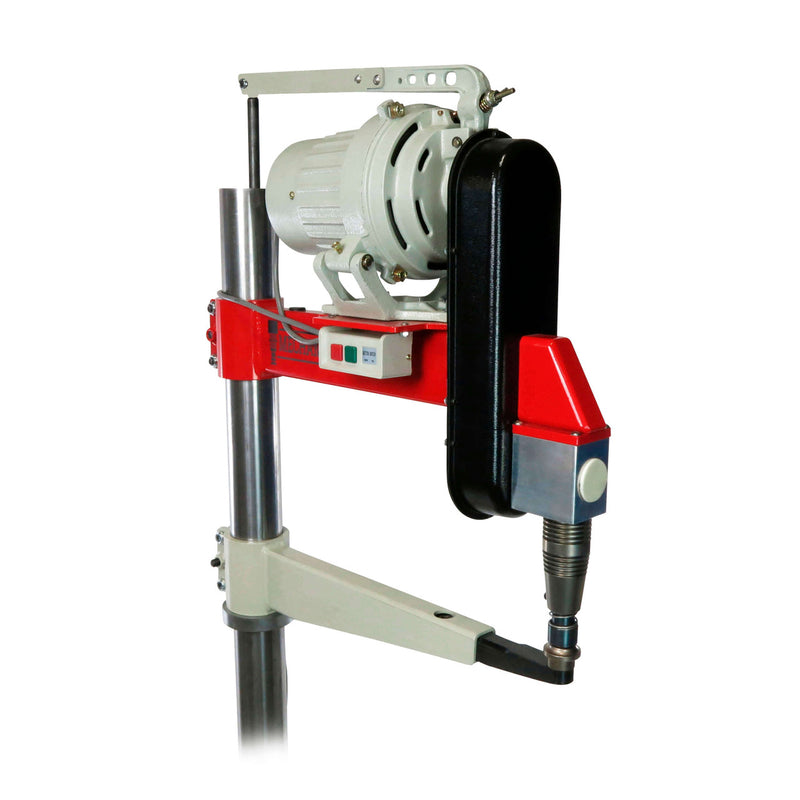

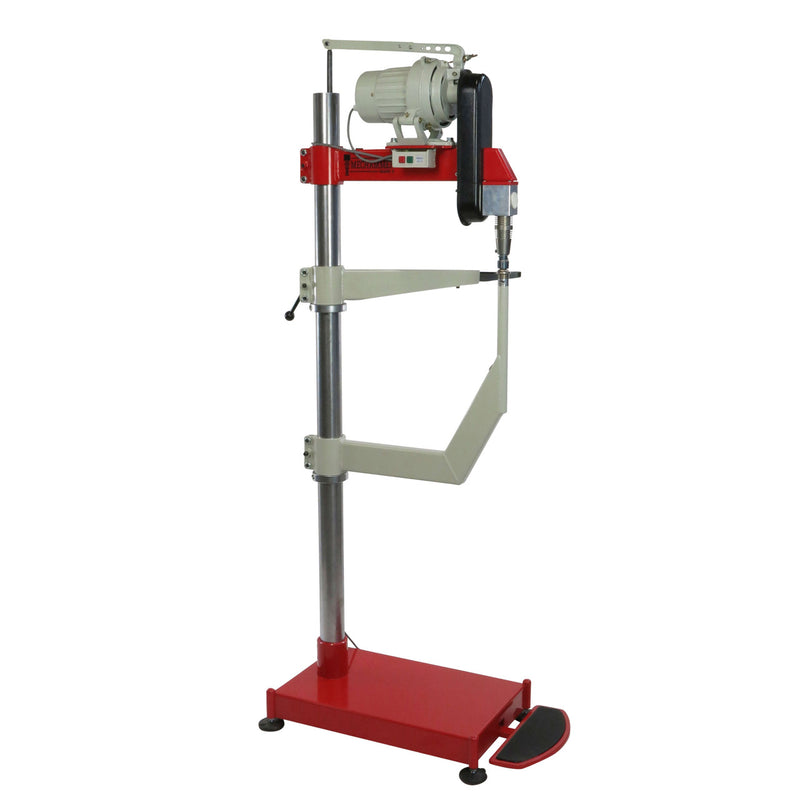

The Mechammer Mark II Planishing Hammer is different to any other planishing hammer on the market due to its unique hybrid drive system. Whilst power and speed / impact rate are controlled by a variable speed electric motor, that rotary motion is converted into linear motion by an air motor that controls the reciprocating piston.
Adjustable impact force
The unique design incorporates different weight pistons allowing the user to control the impact force and provide a cushioned impact to your panel, letting you choose the force you need for the type of work you are doing and the thickness of the panel you are working including a light weight piston for fine planishing work and work on aluminum.
The way the tools interact with the work-piece without any clamping means you have full control over the impact process allowing you to perform all the usual tasks of a planishing hammer but also use the machine for tasks like shrinking when using the optional thumbnail dies. This makes the Mechammer an invaluable tool for any workshop and can often replace both a regular planishing hammer and a power hammer.

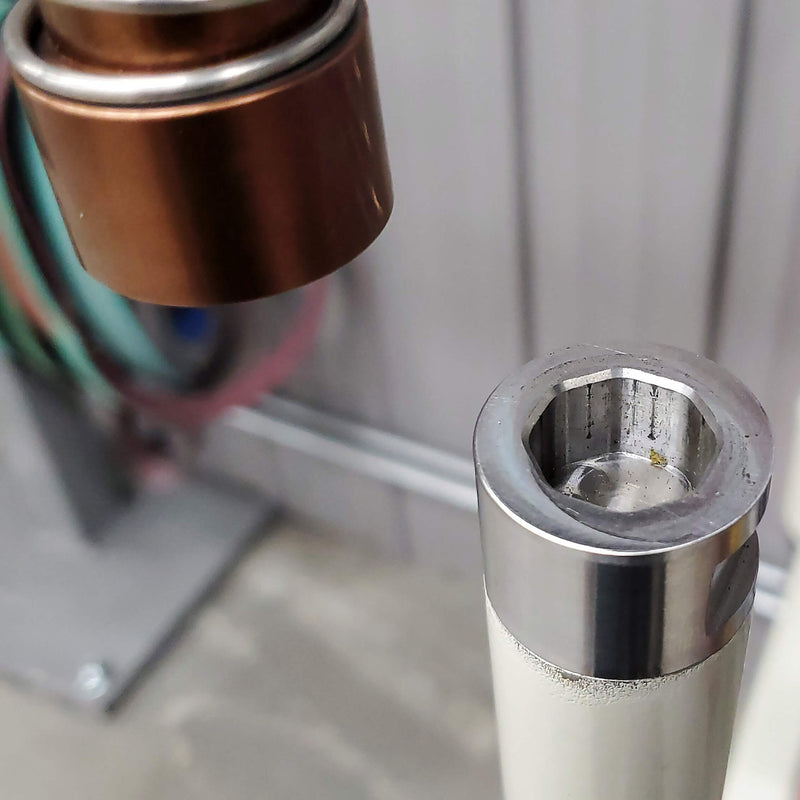

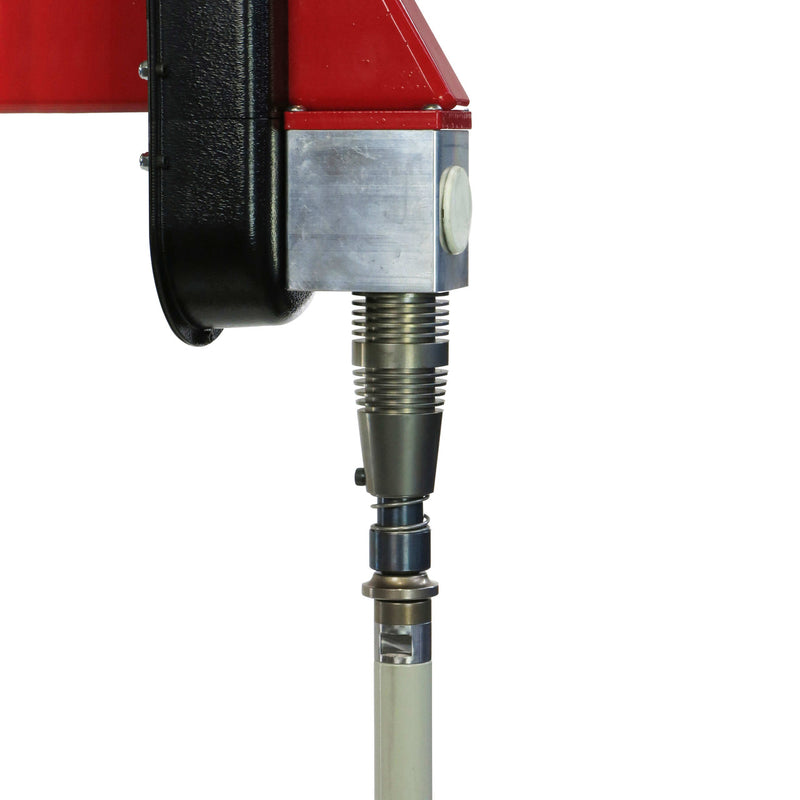

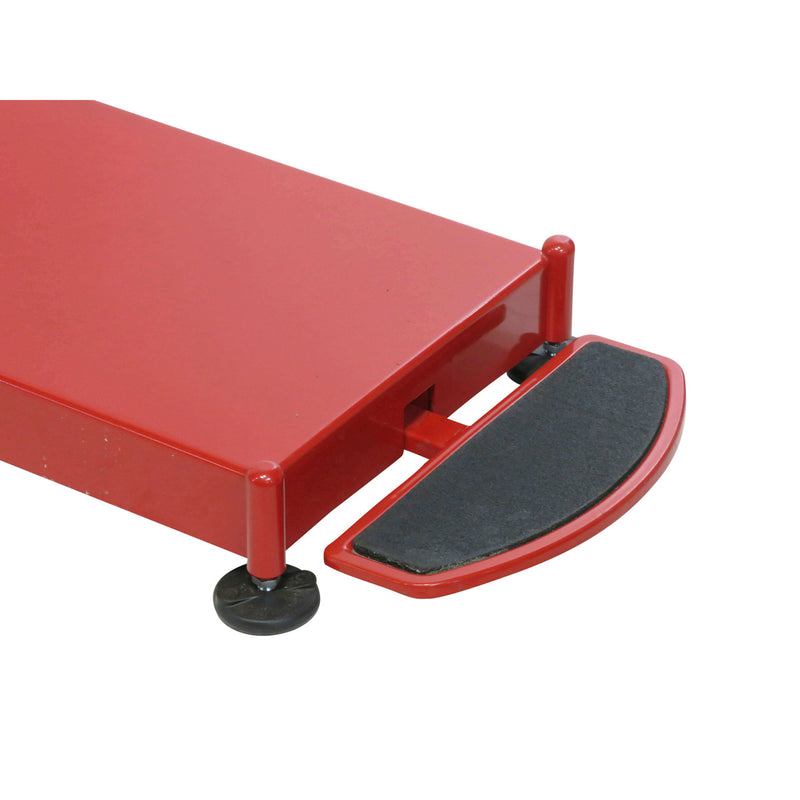

There is no need to make adjustments for each job - simply insert your chosen tool dies into the quick change tool holders, rotate the lower tool arm into position and step on the pedal.
Extensive Tooling
A wide range of tooling is available including tool dies for standard tasks like planishing, shaping, tipping, flagging, linear and radial stretch. Unlike regular planishing hammers, there are also thumbnail dies for shrinking, beading dies and more.
Mechammer Details
- Included Dies - 40mm flat upper, 3in radius lower die, 12in radius lower die, 36in radius lower die.
- 20in throat depth
- 22in throat height lets you work larger shaped panels.
- Variable speed control from 0 to 3000 strokes per minute
- 110v electric motor.
- Capacity for up to 16 gauge steel.
- Weighs 325 lbs
