The Original Magnabend - And Still the Best
Based on the original Australian design dating back to 1975, the Magnabend continues to be made by Roper Whitney in the USA to this day distinguishing it from the competition.
Unrivaled Bending Capabilities
The unique electromagnetic clamping system used on the Magnabend gives you unrivaled bending capabilities when compared to traditional sheet metal brakes, letting you form complex shapes with ease.
Not only do you get a regular sheet metal brake, the un-obstructed sides and rear let you form unlimited depth boxes and pans and the magnetic clamping lets you clamp round and other profiles as "dies" letting you form rolls and other shapes up to 4-foot wide with ease.
Electromagnetic Clamping
The Electromagnetic clamping system pioneered by the Magnabend eliminates the obstruction caused by an upper beam in traditional sheet metal brakes, freeing you to create larger and more complex shapes from only one machine, saving space in your workshop and increasing productivity. The clamping force lets you bend up to 18-gauge mild-steel 4' wide and up to 10-gauge for shorter widths.
The Triple-Hinge System design of the Magnabend ensures you have a light-weight operation whilst still ensuring long-term durability and stability.
An Integrated Bend-Angle Gauge with integrated stop lets you easily bend precise angles with repeatability, great for production-run work. The additional Back-Gauge further ensures repeatability to set depths time and time again.

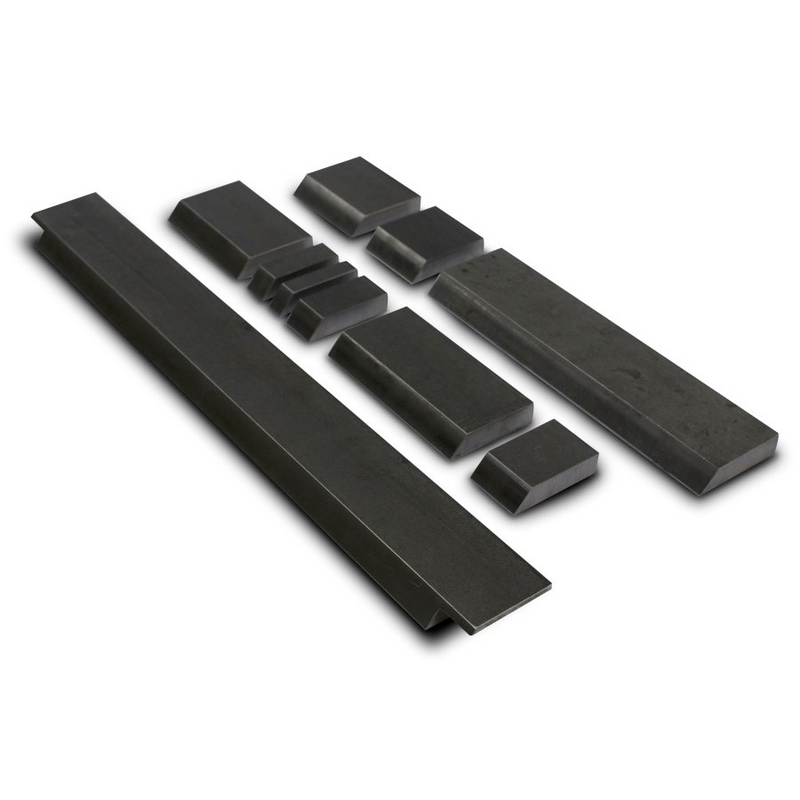

Magnabend 4' Includes:
- Full-length 52.5in Bending Bar
- 26" Bending Bar
- 12" Bending Bar
- 6" Bending Bar
- 4" Bending Bar
- 3" Bending Bar
- 2" Bending Bar
- 1.5" Bending Bar
- 1" Bending Bar
- 0.75" Bending bar
Magnabend Details:
- 115V - can be run in just about any workshop
- Max Bending Width - 49 inch
- Max Box Depth - Unlimited
- Finger Nose Angle - 67.5 degrees
- Max Bending Capacities:
- Mild Steel - 18 gauge at 48in wide
- Mild Steel - 16 gauge at 36in wide
- Mild Steel - 14 gauge at 24in wide
- Mild Steel - 12 gauge at 12in wide
- Stainless Steel - 22 gauge at 48in wide
- 3 Year Manufacturer Warranty
- Weighs 275 lbs
