Eckold GL2 Handheld Planishing Hammer

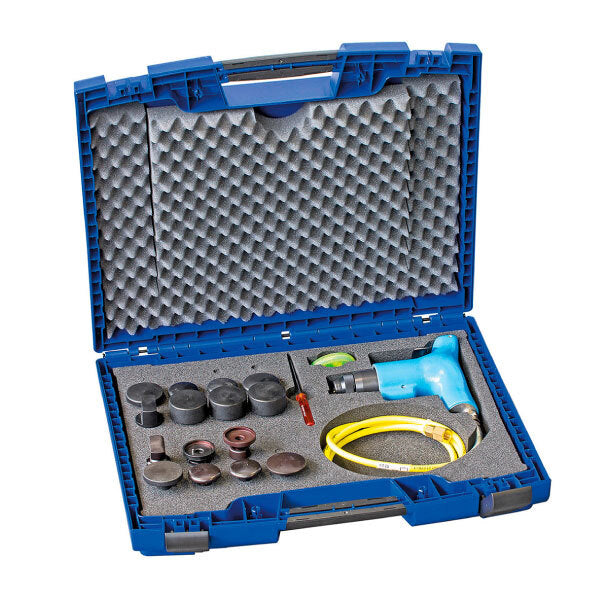

Eckold GL2 Handheld Planishing Hammer Kit

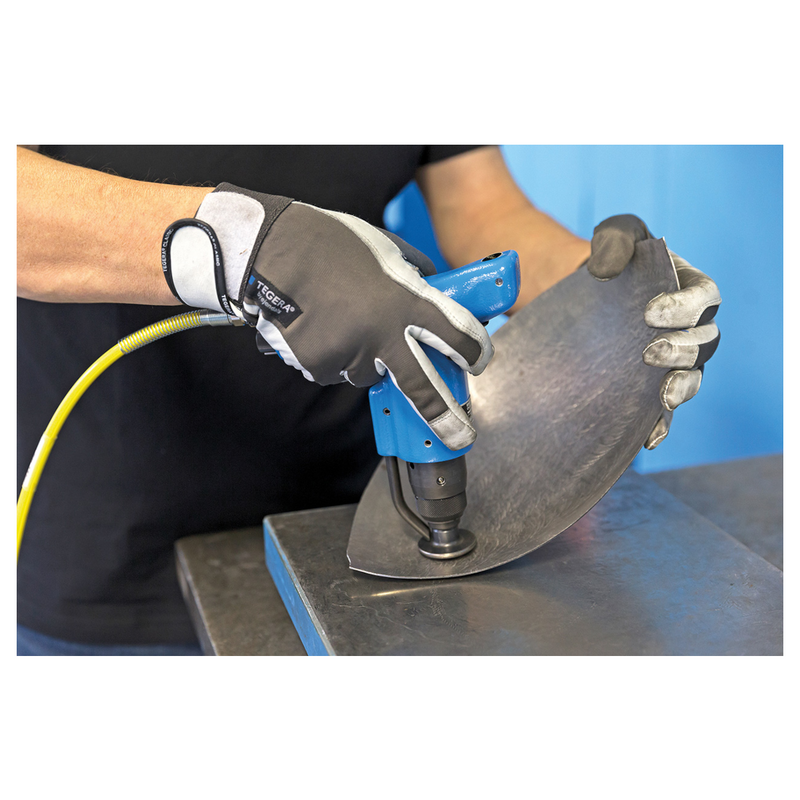

Eckold GL2 Handheld Planishing Hammer In Use

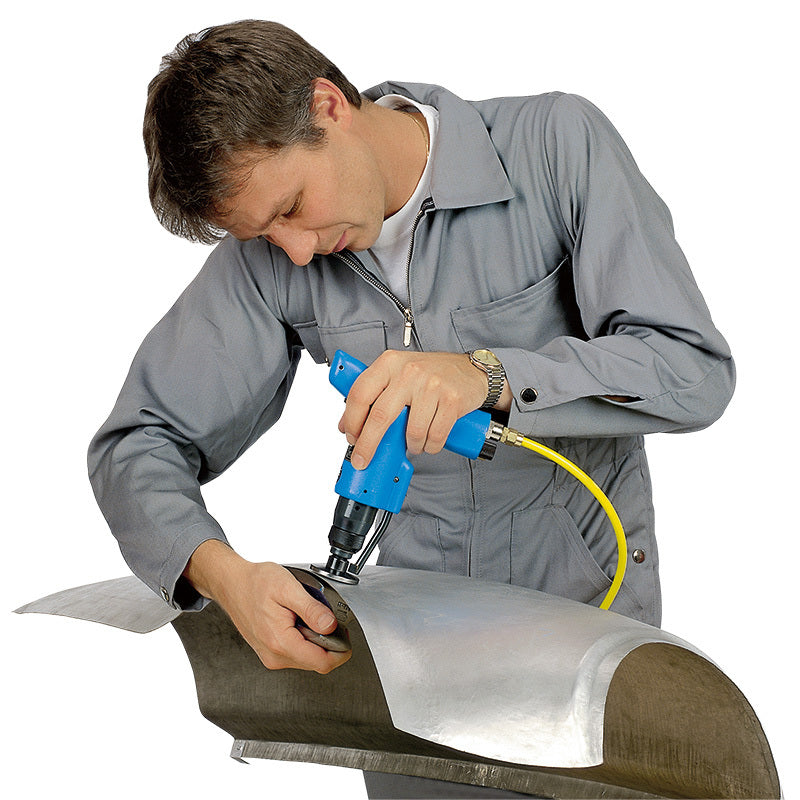

Eckold GS2 Handheld Planishing Hammer In Use on Panel
Eckold GL2 Handheld Planishing Hammer
Eckold GL2 Handheld Planishing Hammer Kit
Eckold GL2 Handheld Planishing Hammer In Use
Eckold GS2 Handheld Planishing Hammer In Use on Panel

Eckold GL2 Max Handheld Planishing Hammer Kit

SKU: 023.200.2529  by Eckold
$5,250.00 - $5,250.00
$5,250.00
$5,250.00 - $5,250.00
$5,250.00

Call for our Best Deal (855) 605-4599

  • Handheld — planish panels in-situ without removing them from the vehicle
  • Includes 9 dies plus 4 blanks for custom profiles
  • Steel and plastic/synthetic die options for hard and soft materials
  • Includes SA 40 fixed shaft and GS 40 swivel shaft (12° swivel for tight spots)
  • Complete kit in storage case with air hose
  • Made in Germany — 12-month warranty
Ships via UPS

This item ships via UPS - items leave the warehouse 1-2 days after order and are usually delivered in 3-5 days for the regular UPS Ground service which is our cheapest delivery option.

For international shipments, the customer is responsible for any import fees, duties or taxes.

If you need it quicker, we also offer 2nd Day Air and Next Day Air Saver which can be selected at check-out.

You can view our Shipping Policy Here

Hand Planish Panels In-Situ - Eckold GL2 Handheld Planishing Hammer

With the GL2 Handheld Planishing Hammer from Eckold, you can easily finish and re-shape panels whilst still on the vehicle or on your workbench, getting to areas that regular frame-based or pedestal based planishing hammers cannot reach.

9 Included Dies + Blanks

The Eckold GL2 Max Kit included 9 dies plus 4 blanks, giving you tooling up-front to perform planishing, stretching and curving and also giving you the ability to form your own dies to suit your unique requirements. Included is a set of synthetic / plastic dies for use on softer materials like aluminum.

The GL2 Max Kit is great for those restoring vehicles that need to get into tight places or repair a panel without removing it from the vehicle, making fuel tanks and fenders for motor-cycles and those looking for a easily portable planishing tool to work sheet metal in a variety of situations.

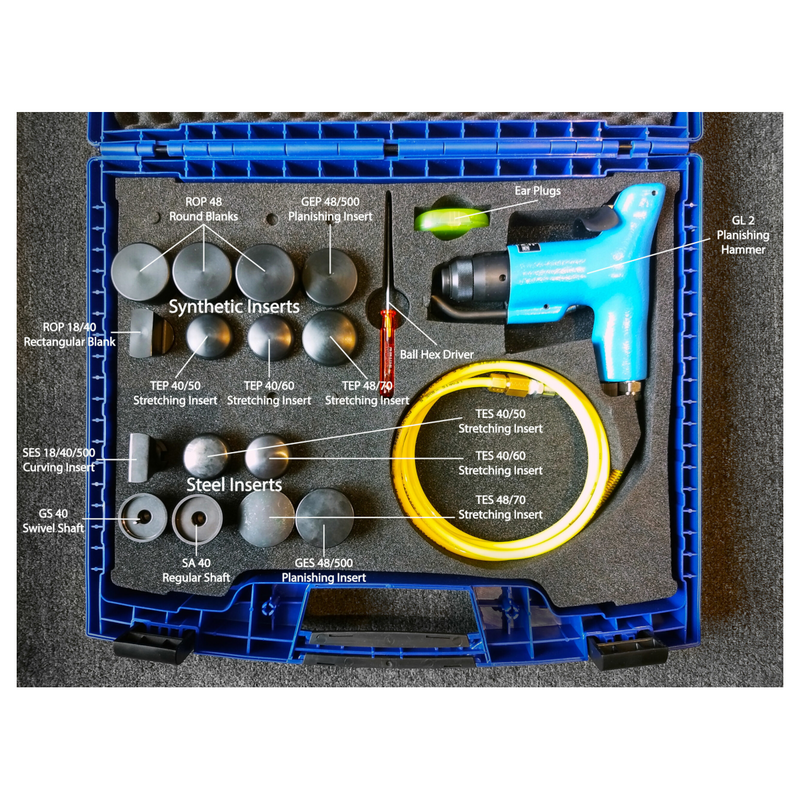

Eckold GL2 Max Kit Details

  • Includes 9 dies
    • 1 x Steel Planishing Die - 48mm dia x 500mm radius
    • 1 x Plastic / Synthetic Planishing Die - 48mm dia x 500mm radius
    • 1 x Steel Rectangular Curving Die - 18mm x 40mm x 500mm radius
    • 1 x Steel Stretching Die - 40mm dia x 60mm radius
    • 1 x Plastic / Synthetic Stretching Die - 40mm dia x 60mm radius
    • 1 x Steel Stretching Die - 40mm dia x 50mm radius
    • 1 x Plastic / Synthetic Stretching Die - 40mm dia x 50mm radius
    • 1 x Steel Stretching Die - 40mm dia x 70mm radius
    • 1 x Plastic / Synthetic Stretching Die - 48mm dia x 70mm radius
  • 4 die blanks allowing you to create your own profiles
    • 1 x plastic / synthetic rectangular blank - 18mm x 40mm flat
    • 3 x round 48mm dia
  • 1 x SA 40 regular steel shaft
  • 1 x GS 40 swivel steel shaft - suitable for all synthetic dies, allowing swiveling up to 12 degrees to get into tight spots
  • Includes air hose and planishing hammer, in handy storage case
  • 12 month warranty
