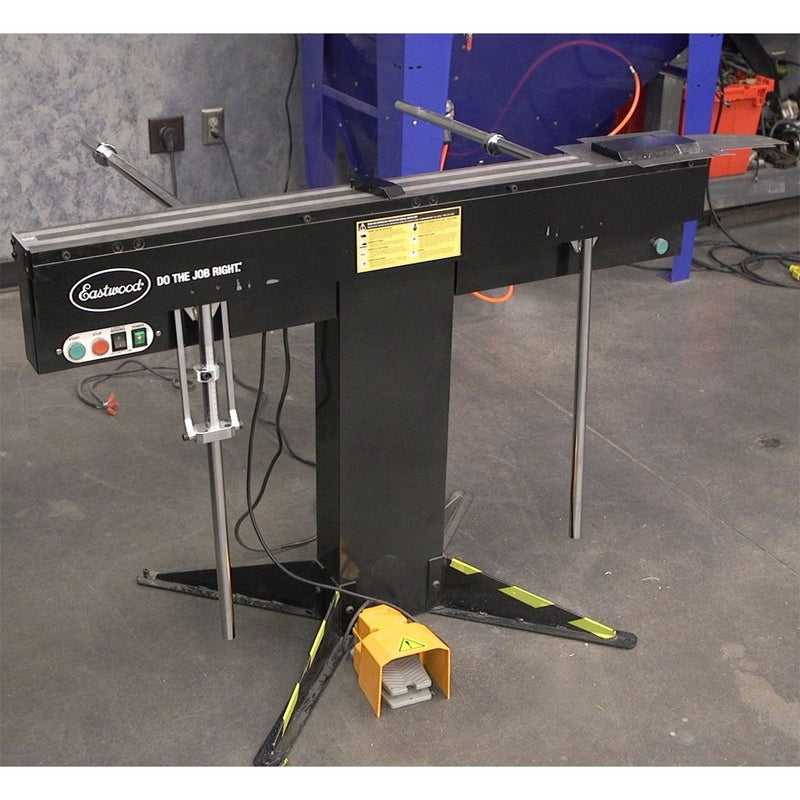

Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Front

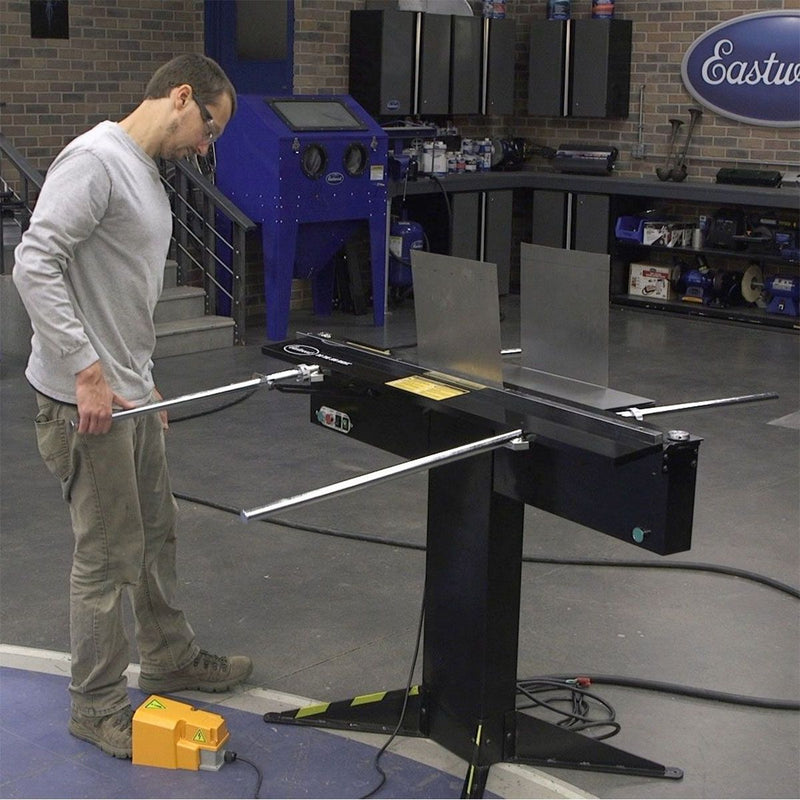

Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Foot Pedal In Use

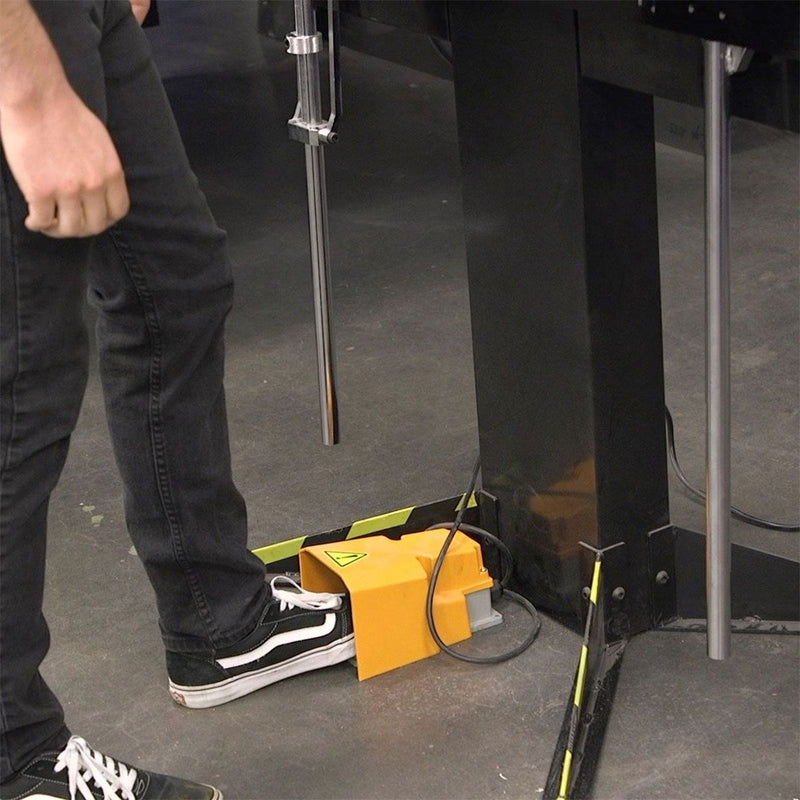

Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Foot Pedal Close Up

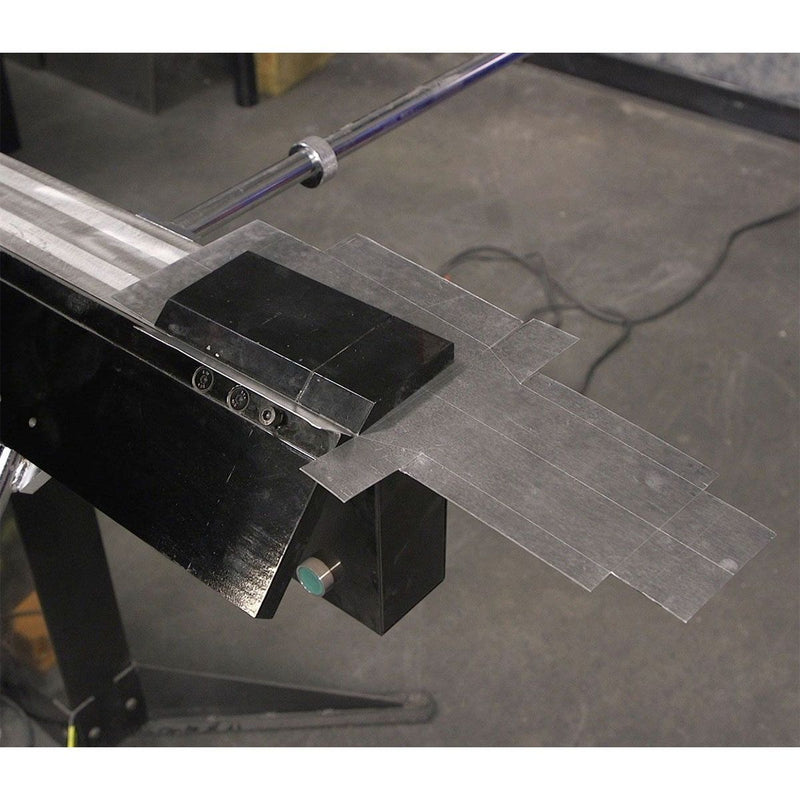

Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Pan Bending

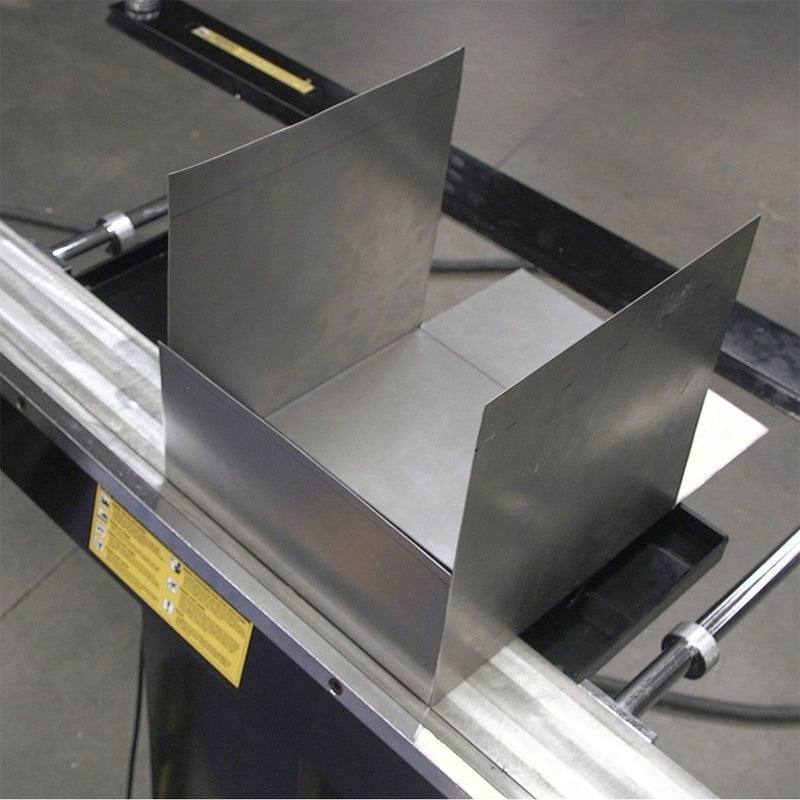

Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Box bending
Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake
Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Front
Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Foot Pedal In Use
Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Foot Pedal Close Up
Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Pan Bending
Eastwood 4-foot Electro-Brake Magnetic Sheet Metal Brake Box bending
Eastwood 48 inch Electro-Brake Overview
Eastwood 48 Inch Electro-Brake Detail Video

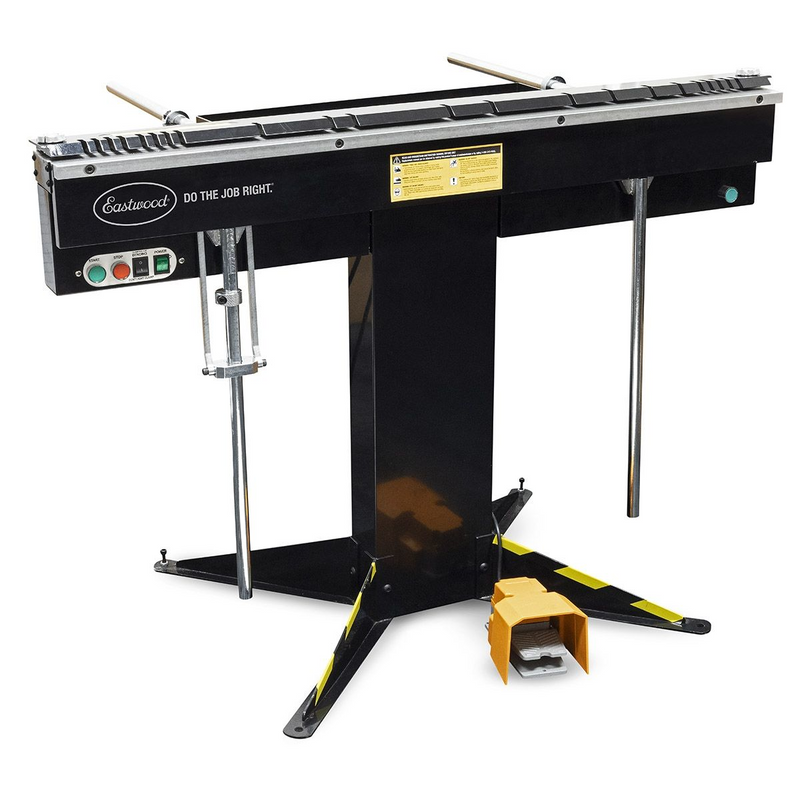

Eastwood 48 Inch Electro-Brake Magnetic Sheet Metal Brake (32601)

SKU: 32601  by Eastwood
Save $89.01 Save $89.01
$3,089.00
$3,089.00 - $3,089.00
$3,089.00
$2,999.99
$2,999.99 - $2,999.99
$2,999.99
  • ✅ No Sales Tax (Except for CO)
  • ✅ Realtime Shipping Quotes including LTL
  • ✅ Authorized Dealer
  • ✅ Backed by Manufacturer's Warranty
  • ✅ Expert Advice & Free Lifetime Support
Availability:
5+ in stock, ready to be shipped

Call for our Best Deal (855) 605-4599

  • 48 Inch wide - capacity for 4-foot sheets
  • Bends up to 16-gauge mild steel, 20-gauge stainless.
  • 6-tons of magnetic clamping force across entire width.
  • Bends up to 140°
  • Foot Pedal or Hand Control
  • Built in bend-angle guage and stop for repetable bending.
  • Single Phase power 208-240v
  • Unlimited box depth
  • Includes 52" x 4" Slotted Clamp Bar
  • Includes 52" x 4" Solid Clamp Bar
  • Includes 52" x 2" Solid Clamp Bar
  • Includes 1", 1.5", 2", 2.75", 5.5" and 11" "Finger" Clamp Bars
  • Any ferrous / magnetic metal can be used as a clamp - allows forming of unique shapes.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Eastwood 48 Inch Electro-Brake Manual

Magnetic Sheet Metal Brake with No Limitations

The Eastwood 48 Inch Electro-Brake provides 6-tons of clamping force across its entire width, letting you use the 2 or 4 inch clamping bars to hold sheet metal in ways not possible on regular box-and-pan brakes, making for unlimited box depths.

Included are a number of clamping bars covering full width bars as well as smaller "finger" bars and you can also use any ferrous / magnetic metal as a clamp, letting you create bends not possible on regular brakes such as curves and hems.

Running on Single Phase 208-240v power, you can run this magnetic brake in most garages and workshops.
