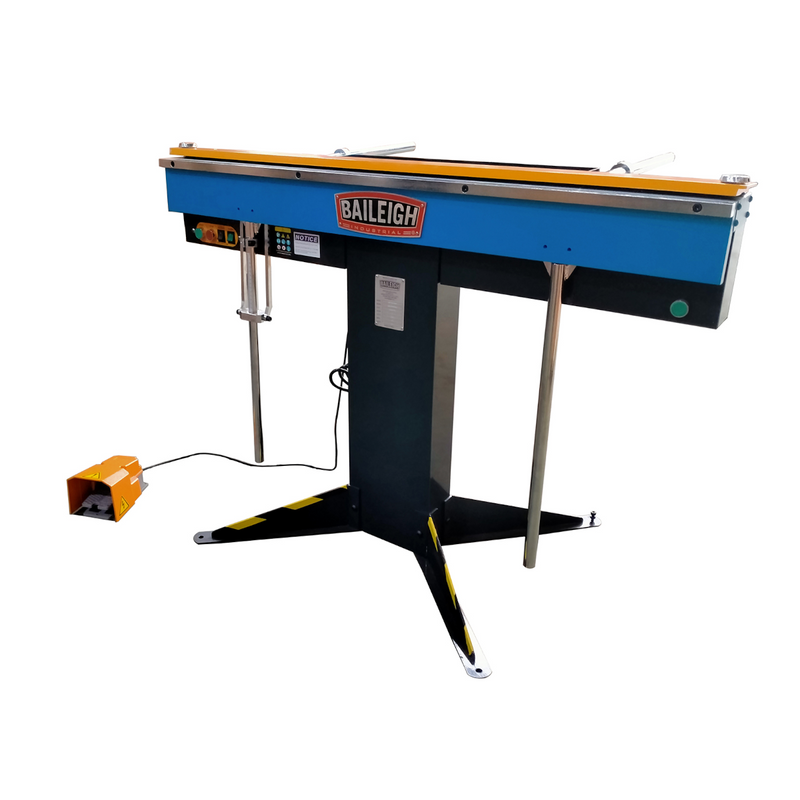

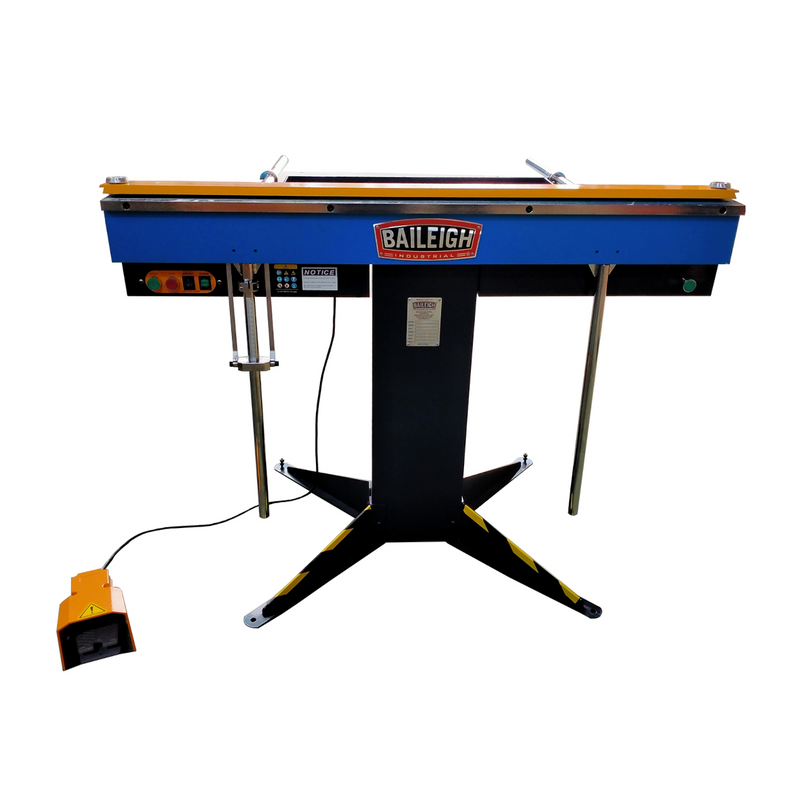

Bend to Your Will: Baileigh BB-4816M-V2 Magnetic Sheet Metal Brake

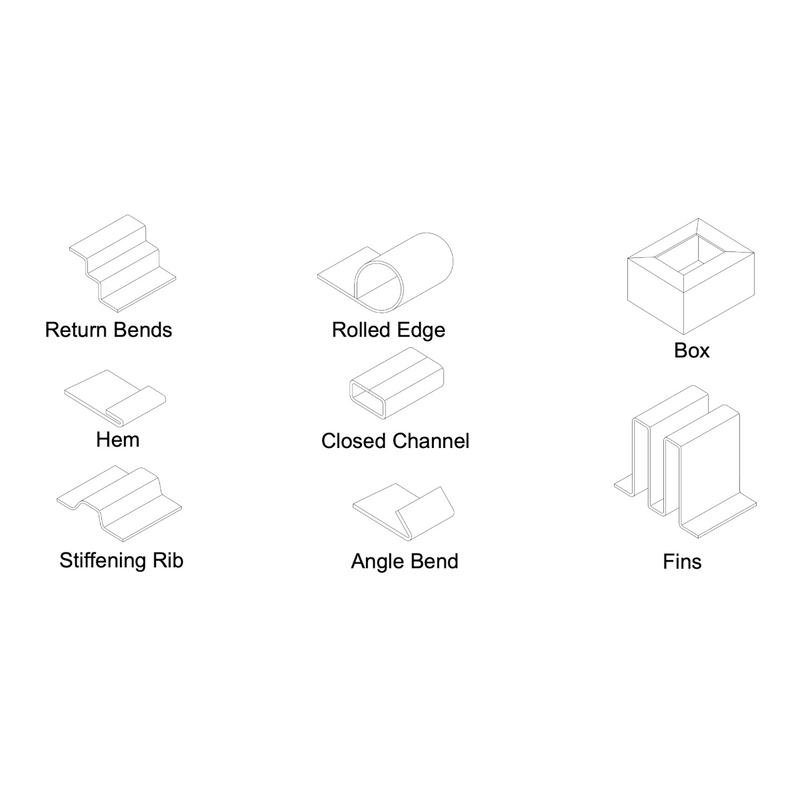

With its open-ended design, the Baileigh BB-4816M-V2 lets you bend shapes that are not possible on traditional box and pan brake, letting you create enclosed shapes such as ducts and boxes. The open-ended design also removes any depth limitations letting you bend boxes or pans to almost any depth as the usual finger depth limitation is removed.
6-ton clamping force over the entire 48" width
The powerful electro-magnetic power generates 6-tons of clamping force letting you bend mild steel up to 16 gauge and ensures that your bend lines are crisp from one side to the other, even in the middle.
Multiple clamping solutions to suit your needs
With a choice of 4 included clamping solutions and the option to use any magnetic material (e.g. steel tube, steel plate, steel bar etc) as a clamp, you are only limited by your imagination as to what you can bend.
The BB-4816M-V2 includes the following bending bars -

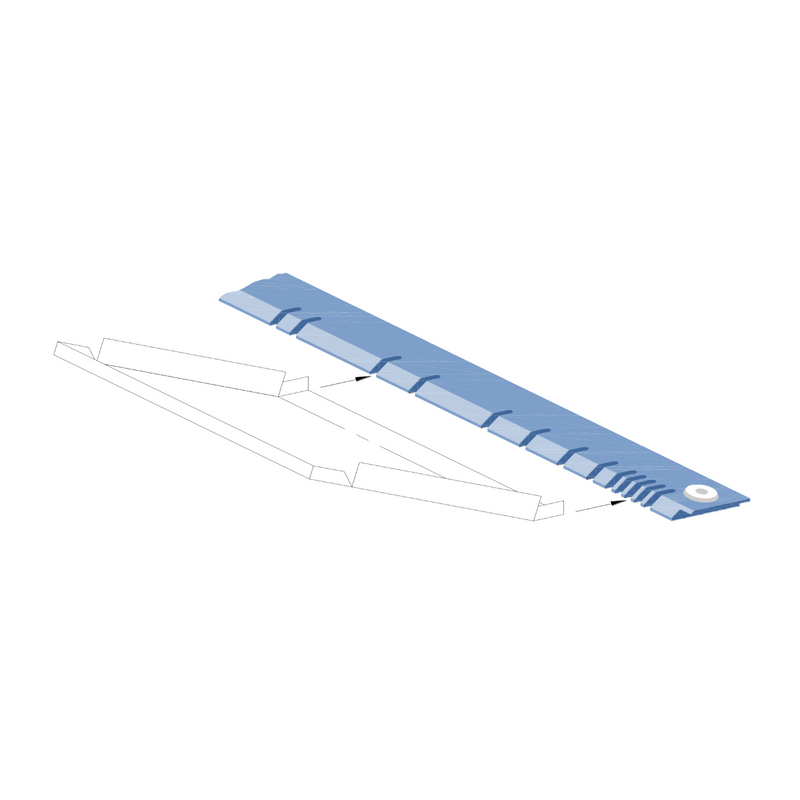

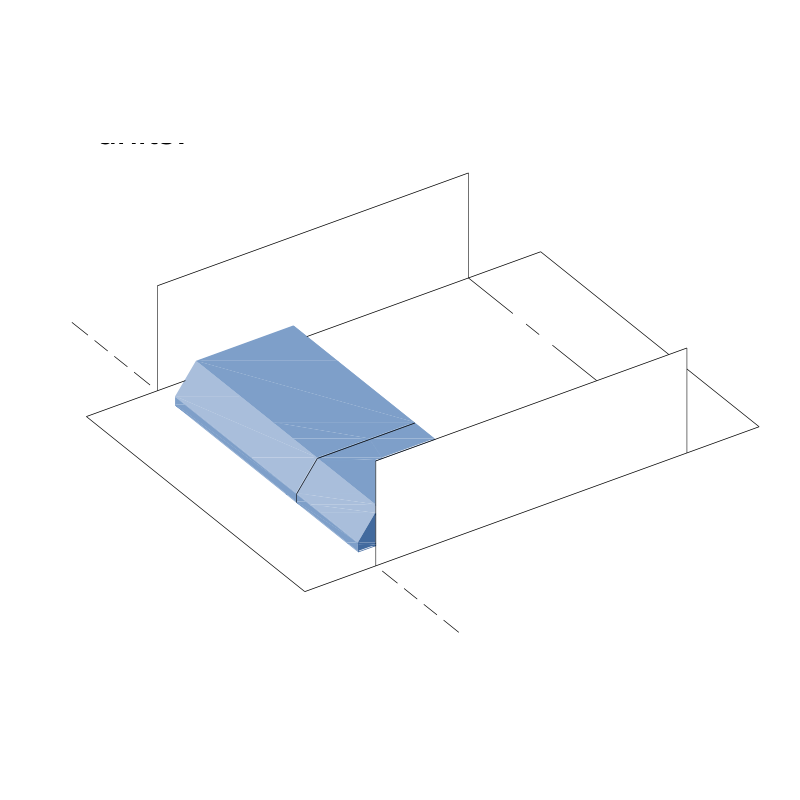

- Notched / slotted clamping bar - full width. Lets you easily bend pans and trays, or any form where an existing edge needs clearance for your current bend.
- Narrow clamping bar - full width. For bending between narrow spaces.
- Wide clamping bar - full width. For full clamping force.

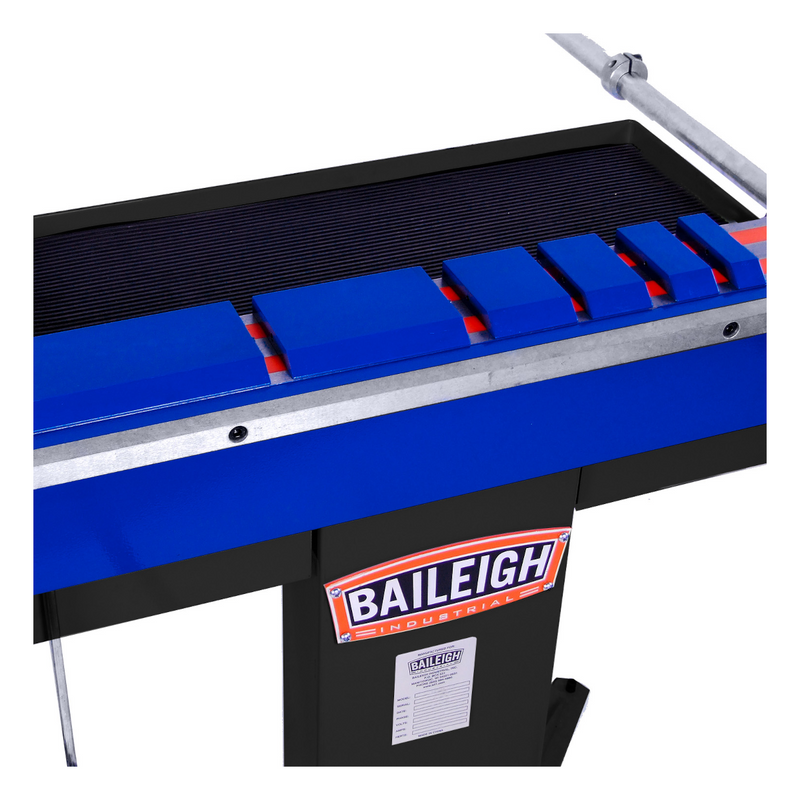

- Segmented / Finger clamping bars - assortment. Great for bending boxes.

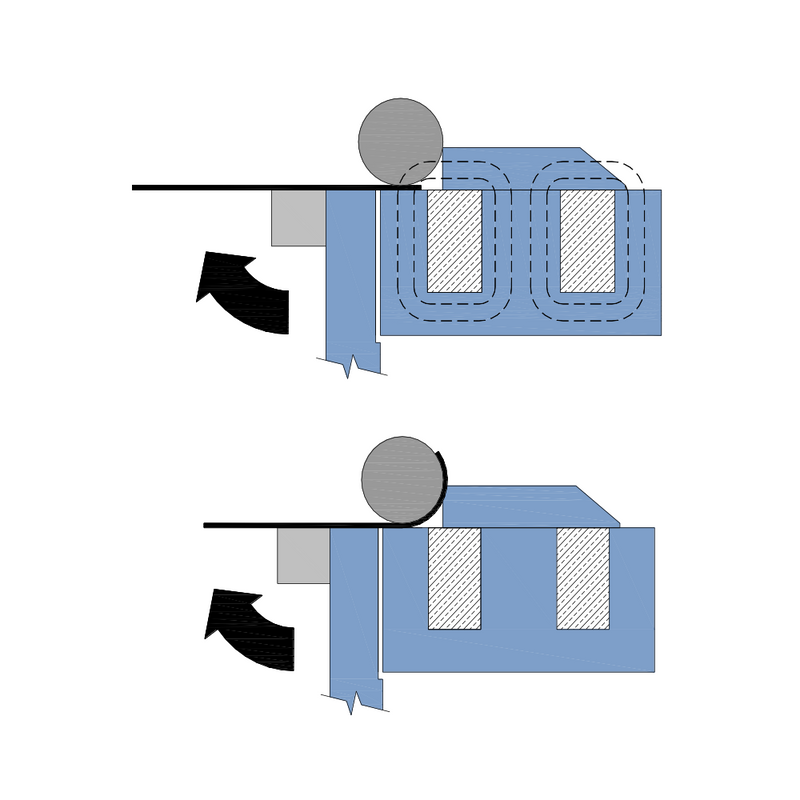

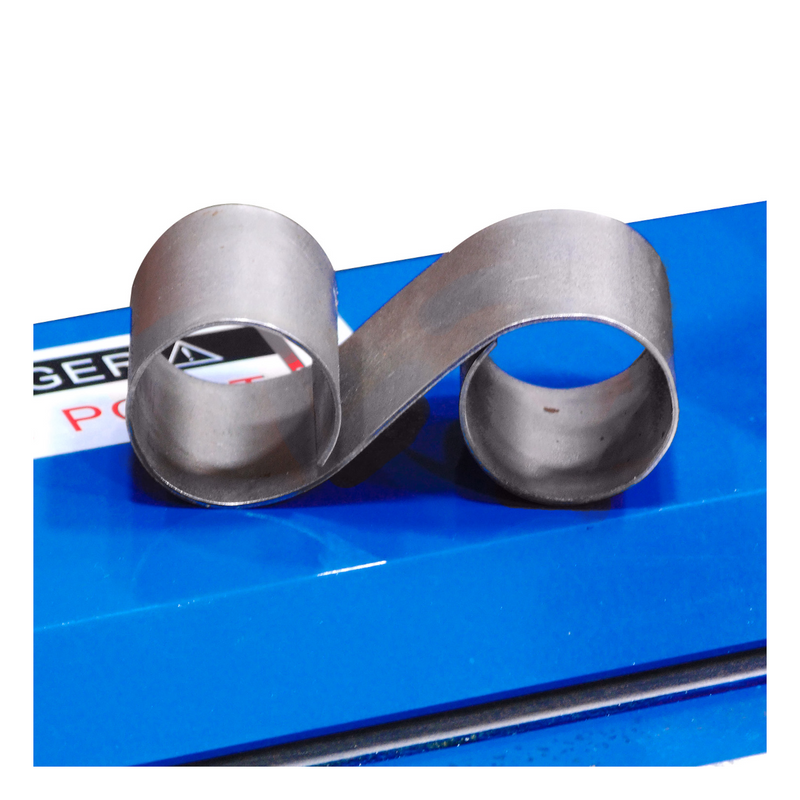

You can also bend radii by using a steel tube as the clamp and bending your profile around the tube.
BB-4816M-V2 Details
- 6 ton clamping force lets you bend up to 16 gauge mild steel with crisp edges the entire length.
- Requires 220v single phase power.

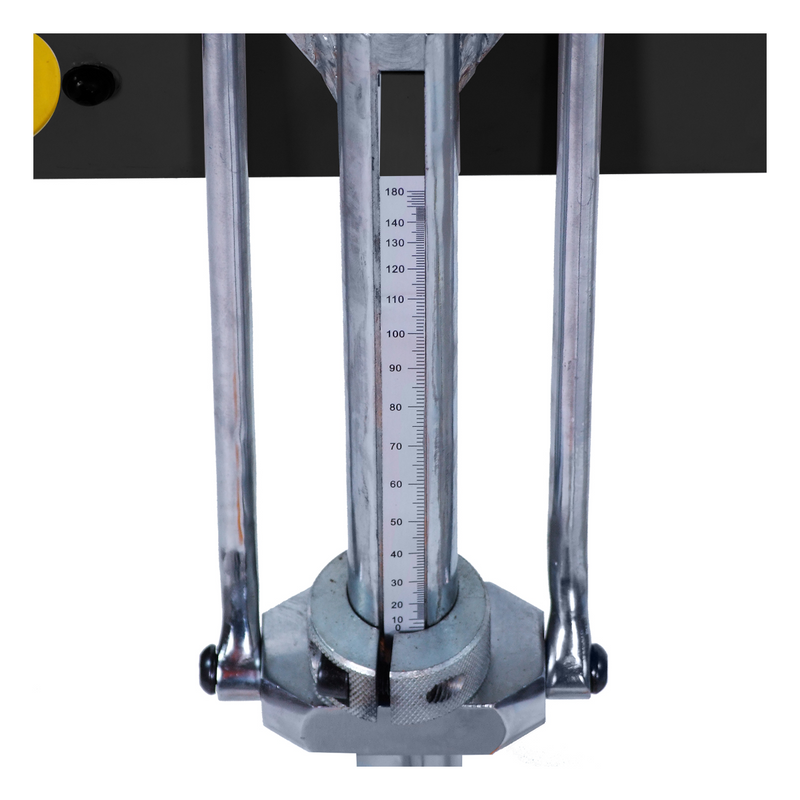

- Bends maximum 180 degrees
- Bends up to 48" wide
- Weighs 387 lbs.
Download Baileigh BB-4816M-V2 Manual
