Baileigh TN-300 Tube Notcher
Call Now for a Deal (855) 605 4599
Ships via LTL / Truck Freight
Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.
We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.
LTL Freight has a number of options, depending on your ability to unload the goods.
The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.
Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.
Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.
All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.
If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.
You can view our Shipping Policy Here

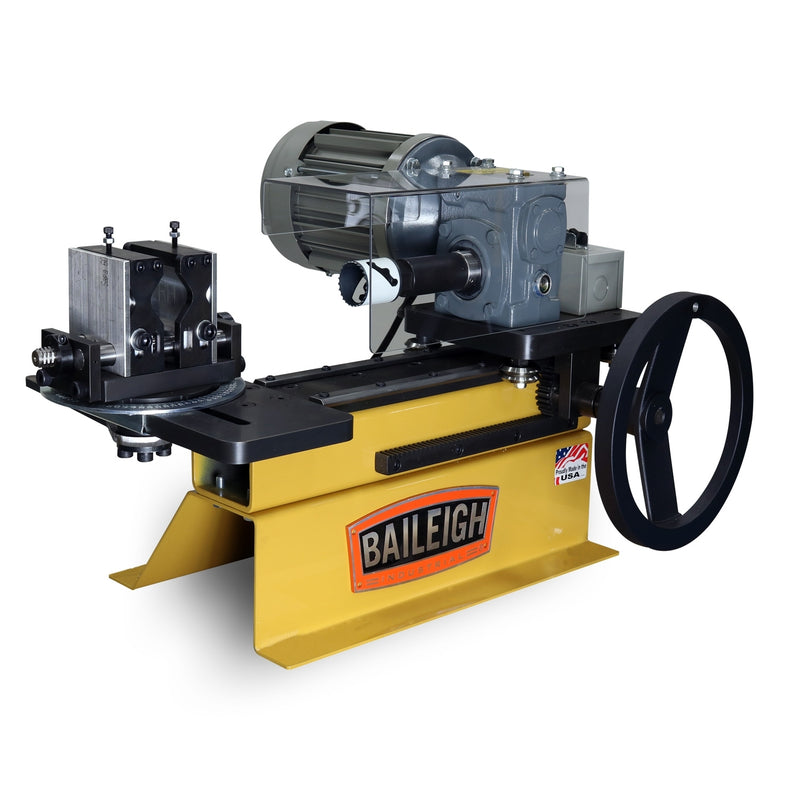

No more Hand-Drills: Streamline Tube Notching with the TN-300

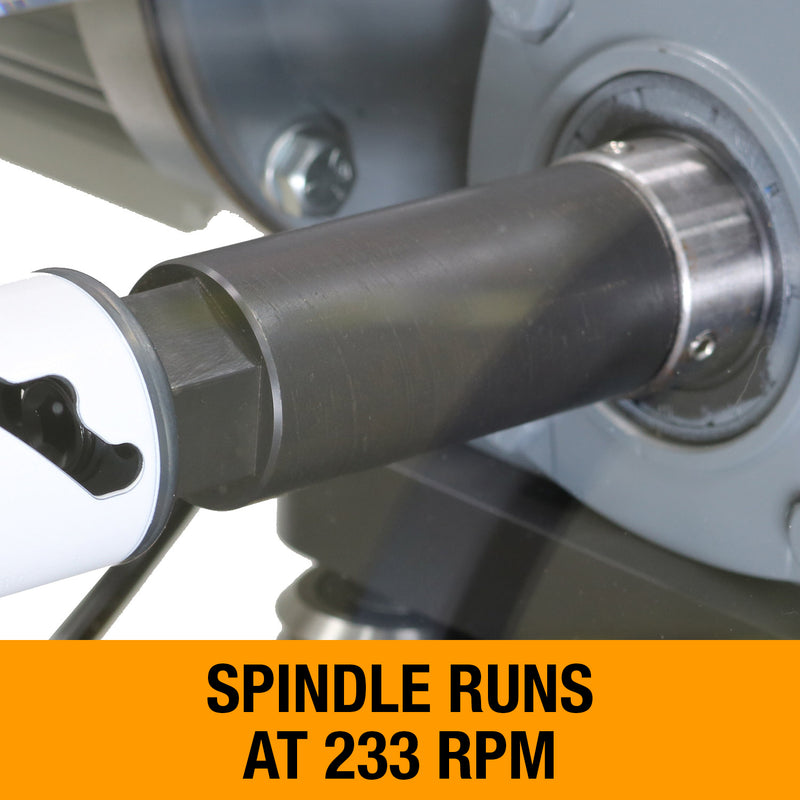

Incorporating an industrial 0.5 hp electrical motor and gearbox, the Baileigh TN-300 eliminates the need for a hand-drill or drill press when notching or coping tubes. The power and torque delivered through the gear-box means the TN-300 can run at an optimal 233 rpm greatly increasing hole-saw life whilst still keeping cutting speed up to get the job done quickly.

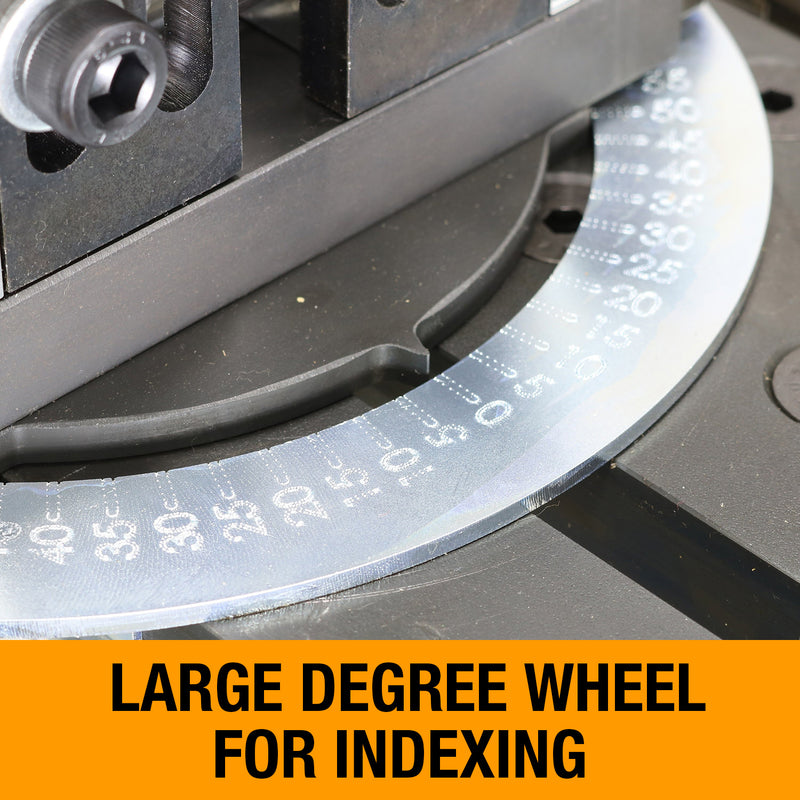

Large Degree Wheel for Accurate Angles

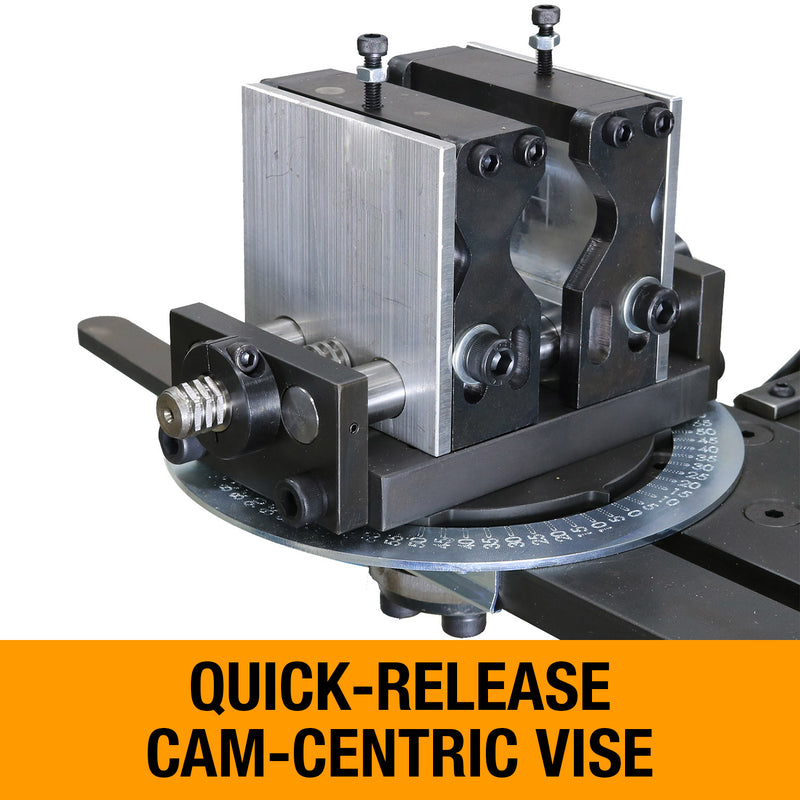

The self-centering vice incorporates a quick-release cam lock allowing you to adjust your angles quickly and the large degree wheel is easy to read and makes sure you get the angle you need. The vice is also adjustable vertically to allow for offset coping / notching and incorporates an acme-screw for quick tightening. With long hole-saws you can notch up to 75 degrees!
Gear Drive Carriage

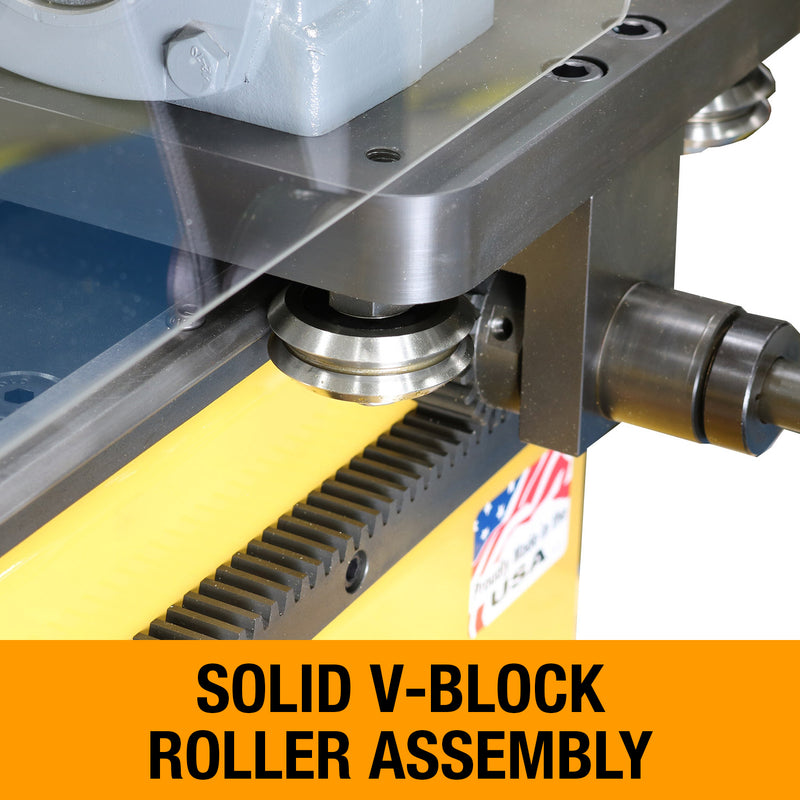

With the power to notch tubes up to 3", the is built from rigid steel plate and the carriage runs on a precision V-block assembly to ensure repeatable alignment between saw and tube. There is no pushing on your hand-drill here either, with the carriage moved forward / backwards on a gear drive with a large hand-wheel to reduce effort.
TN-300 Details
- 110V for easy use in any workshop.
- 0.5 HP electric motor runs through gear reducer for max-torque and tool-life friendly 233 rpm.
- Notches tube from 0.5" to 3"
- Quick-release cam-centric vise lets you setup angles in seconds without worrying about the tube moving.
- Large degree wheel lets you set your angles with ease.
- Heavy-duty rigid steel construction insures long life and repeatability.
- Made in the USA
- 1Yr Manufacture Warranty
- Weighs 220 lbs.
Who is the TN-300 for?
If you run a fabrication shop that is doing tube work day-in, day-out, then this is the Tube Notcher for you! It lasts a life-time, ensures longer life for your whole saws and lets you get the job done quicker, saving time and money!
