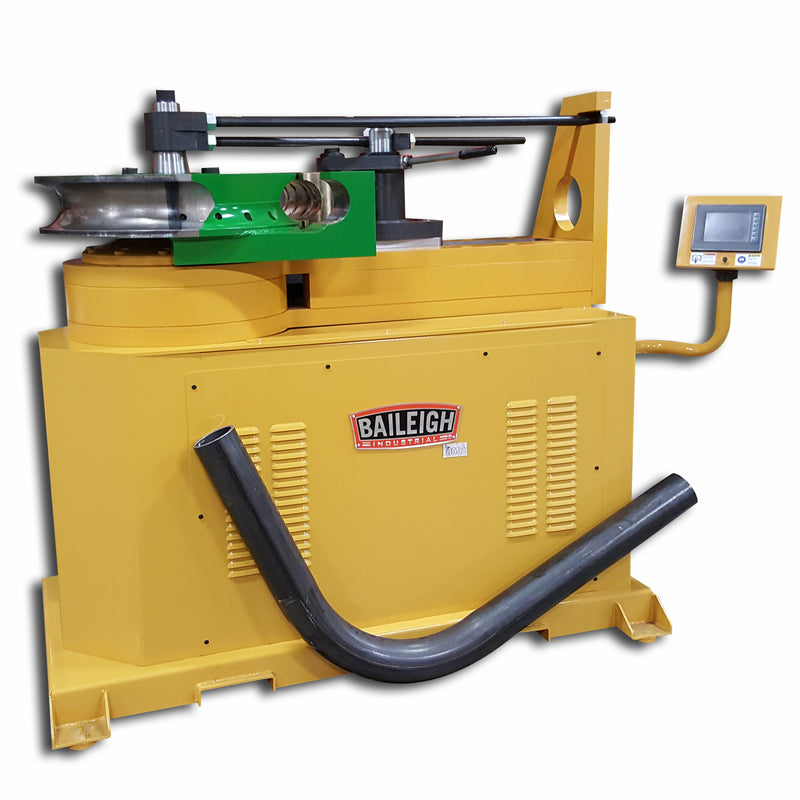

Baileigh RDB-480 Computer Controlled Pipe and Tube Bender

Baileigh RDB-480 5" Computer Controlled Tube Bender

by Baileigh
SKU BA9-RDB480220
$91,399.00 - $91,399.00
$91,399.00
$91,399.00 - $91,399.00
$91,399.00

Questions? Call (855) 605-4599

Computer Controlled Bending up to 5" Tube

RDB-480 Bending Capacity

  • Max 5" Mild Steel Tube up to 0.83 wall thickness
  • Max 4" Schedule 80 Mild Steel Pipe
  • Min 2.5" OD
  • Minimum Center Line Radius (CLR) - 6"
  • Maximum Center Line Radius (CLR) - 28"

RDB-480 Specifications

  • 220-volt (also available as 480-volt 3-phase) power
  • 10hp motor
  • Max bend angle - 180°
  • Max bend speed to 180° - 25 seconds
  • Easy touch-screen or foot-pedal control
  • Computer control stores with internal storage up to 170 programs with 10 bends each and unlimited external storage.

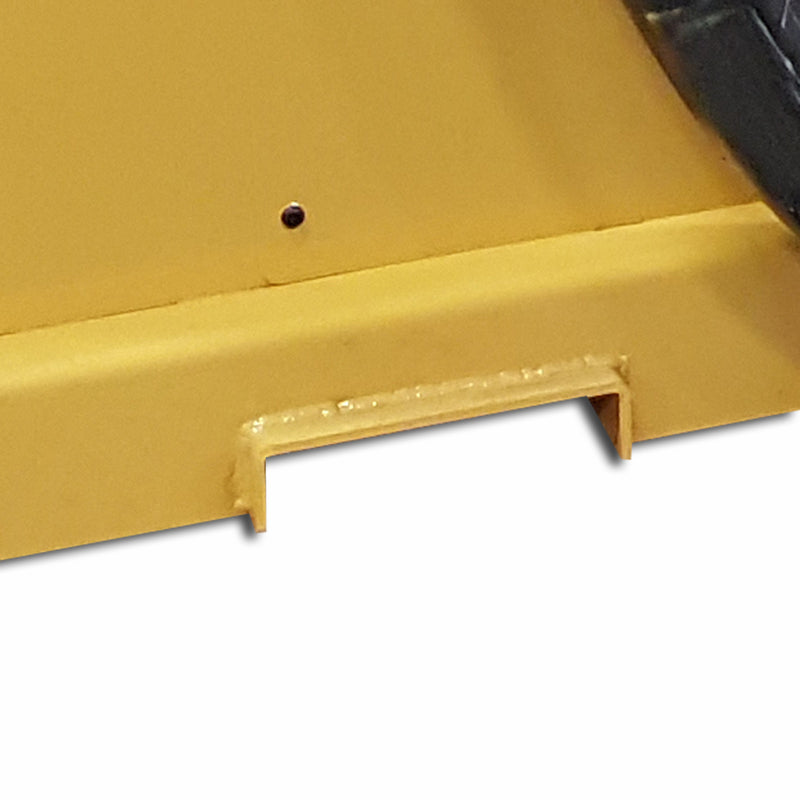

  • Integrated fork pockets allow easy moving.
Request a quote
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Made in the USA
Product Downloads

Download Baileigh RDB-480 Manual

Baileigh's Highest Capacity Pipe and Tube Bender

With a 10hp motor providing capacity for up to 4" Schedule 80 Pipe and 5" Tube, the RDB-480 can tackle the largest bending jobs.

Coupled with Baileigh's range of dies, the RDB-480 will handle center-line radius (CLR) bends from 6" up to 28", giving you the flexibility to get the bend you need.

Computer Controlled Bending

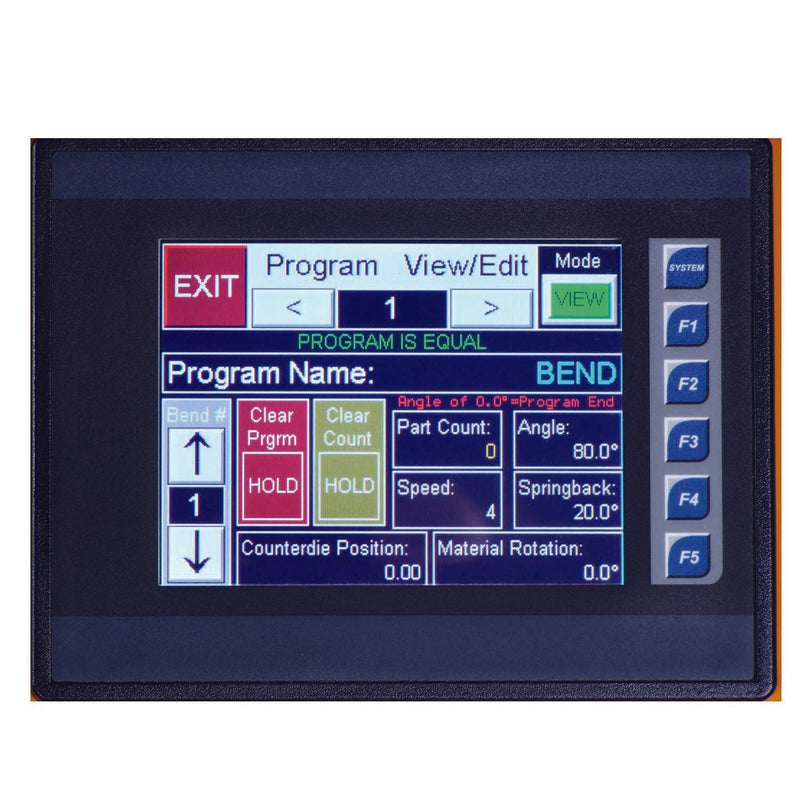

In addition to handling the largest jobs, the RDB-480 is also computer controlled, with a easy to use touch-screen letting you control the bend process and program up to 10 bends per job, making production work a breeze.
