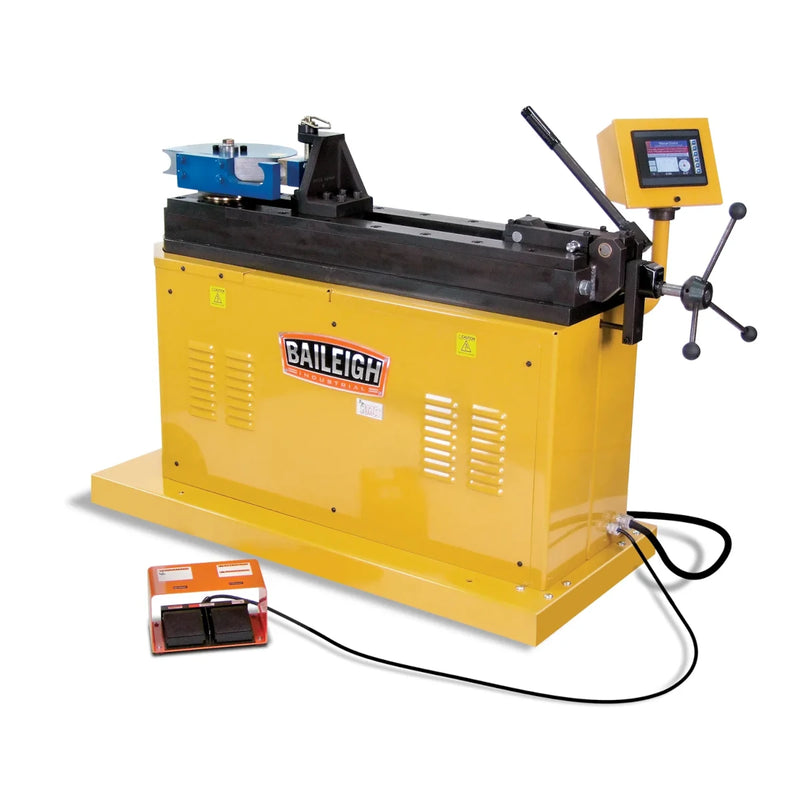

Baileigh RDB-350-TS - Computer Controlled Bending up to 3" Tube
With capacity for up to 3" Tube and 2.5" Schedule 40 Pipe, the RDB-350-TS is a powerhouse bender that also get the job done quickly - 180 degree bends are done in just 16 seconds.
Room for Large Radius Bends
Not only can you bend large tube / pipe with the RDB-250-TS, you can also bend large center line radius, with capacity for up to 24" CLR. It isn't much use if you don't have the dies to do the job though, so Baileigh has thousands of bending dies to suit the RDB-350-TS, covering round tube, pipe, square tube, rectangle, metric sizes and more.

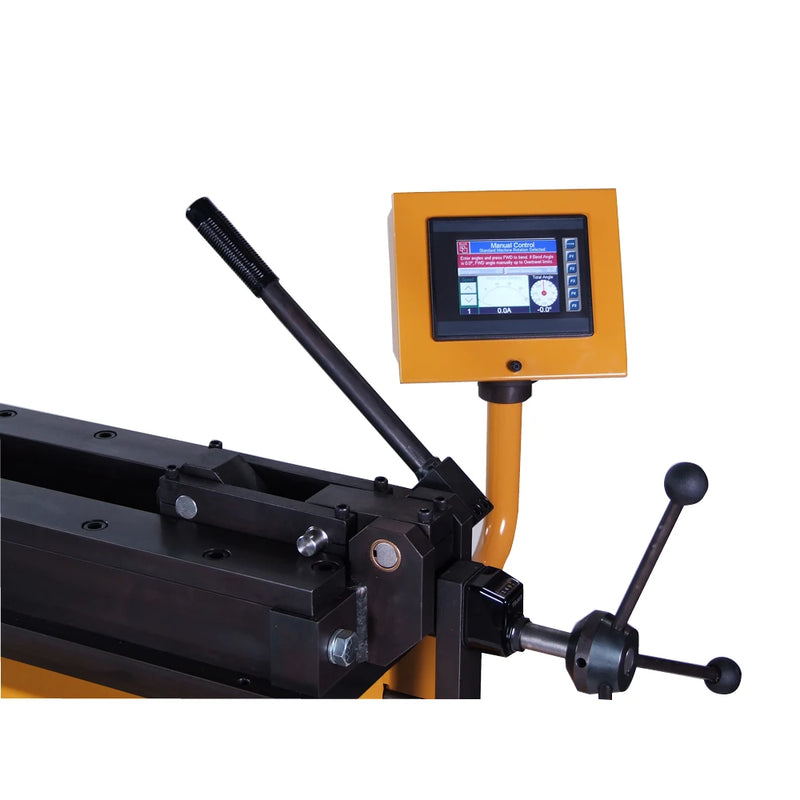

Computer Controlled for Accuracy and Repeatability
The RDB-350-TS is computer controlled, with internal memory letting you store up to 170 different bend programs with up to 10 bends per program, making it the ideal solution for high volume fab shops that have a variety of products with various bend requirements and need to churn out the same bends over and over, without having to worry about the bend being right.
If you need to store more programs, you can add Unlimited storage and backup view the micro-SD port.
The computer control lets you program bend angle, material spring-back and speed so you have full control over the job.

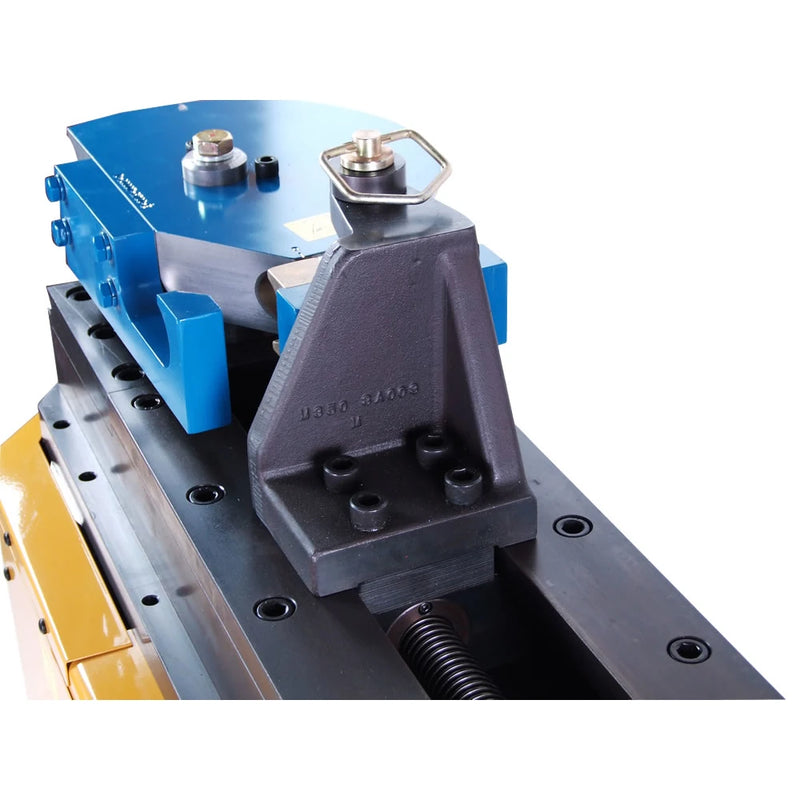

Baileigh Drop-In Die System
The drop-in die system from Baileigh lets you change dies quickly and easily, letting you change die sizes on the run without wasting time, letting you get more done in less time, making more money.
Baileigh RDB-350-TS Details
- 3 inch Tube Capacity - 0.178" wall thickness
- 3 inch Stainless Tube Capacity - 0.125" wall thickness
- 2.5 inch Mild Steel Schedule 40 Pipe Capacity
- 2 inch Stainless Schedule 40 Pipe Capacity
- Min CLR - 0.5 inch
- Max CLR - 24 inch
- Max speed to 180 degrees - 16 seconds
- Power - 220v 3-phase
- 1Yr Manufacturer Warranty
- Weighs 1484 lbs
