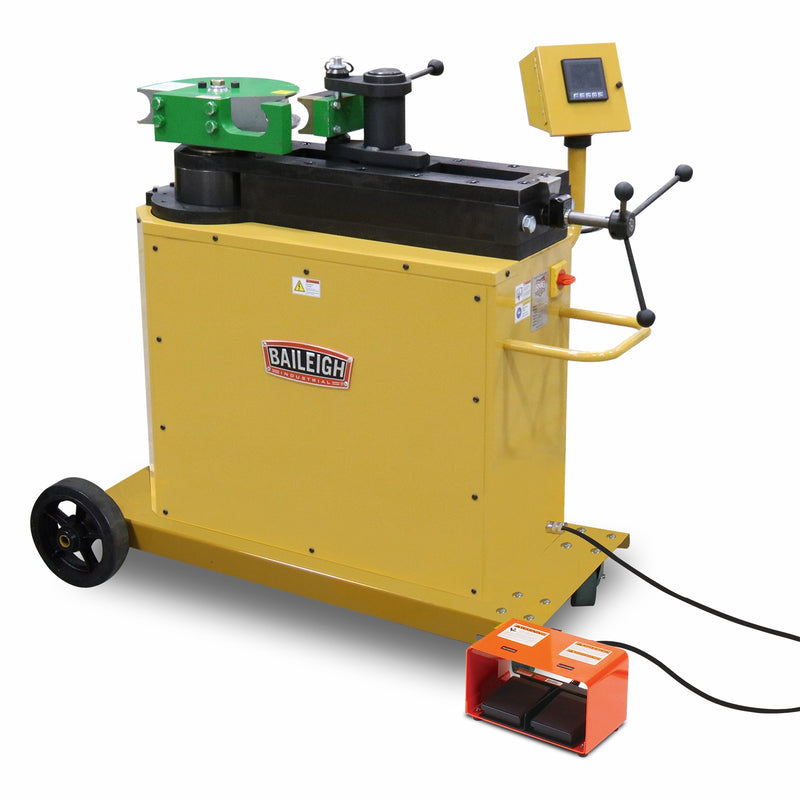

Baileigh RDB-325 Programmable PIpe Bender

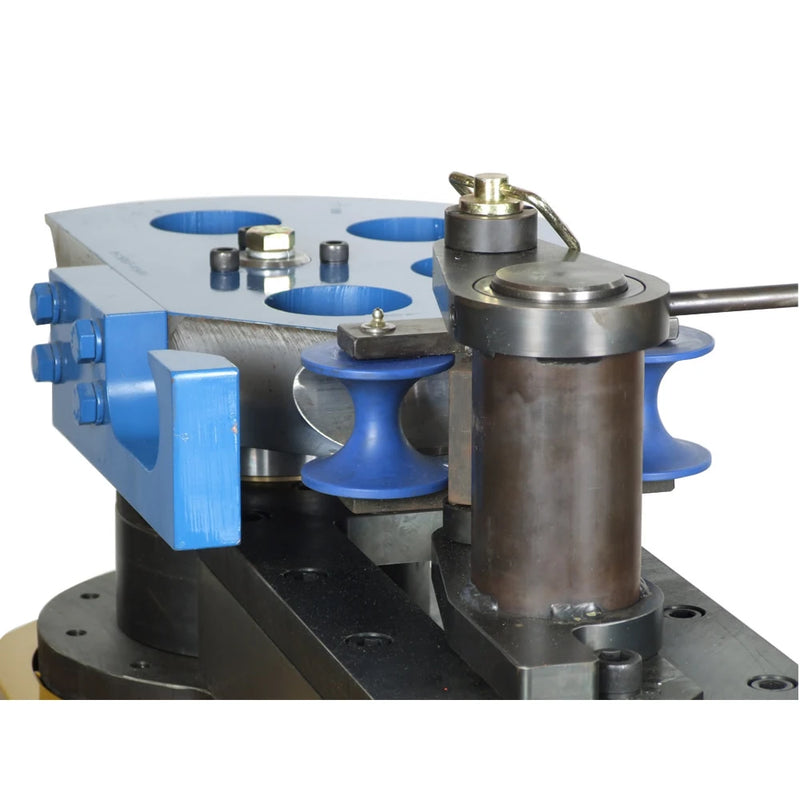

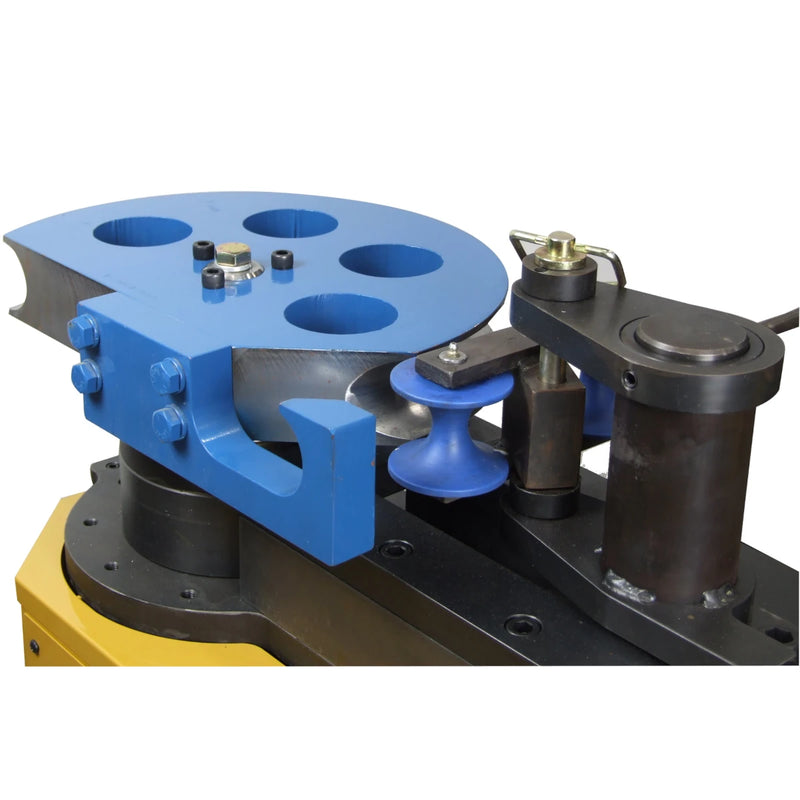

Baileigh RDB-325 Programmable PIpe Bender Die

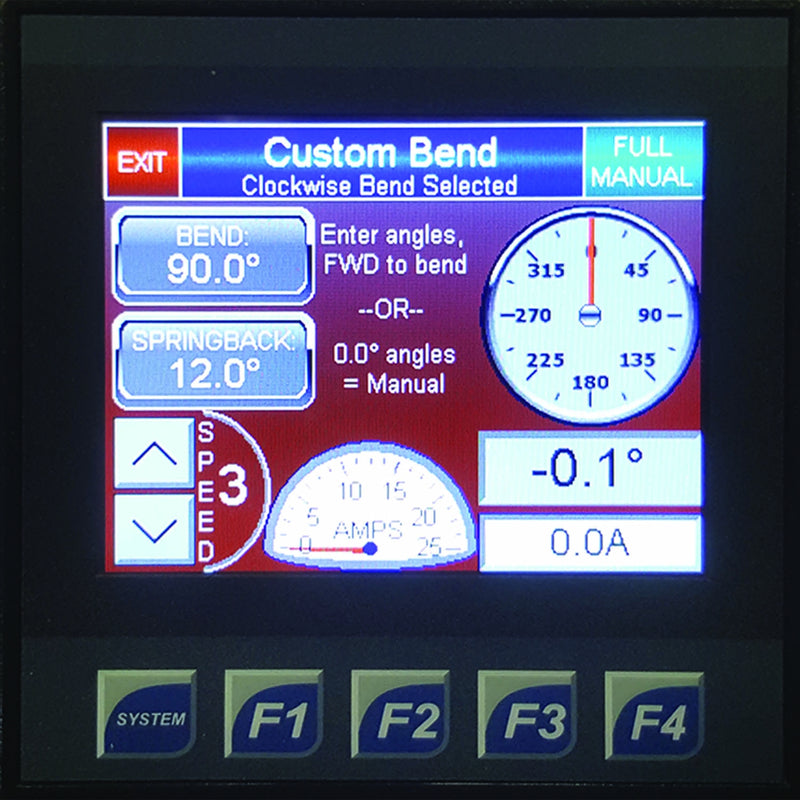

Baileigh RDB-325 Programmable PIpe Bender Touch Controller
Baileigh RDB-325 Programmable PIpe Bender Rear View
Baileigh RDB-325 Programmable PIpe Bender Side View

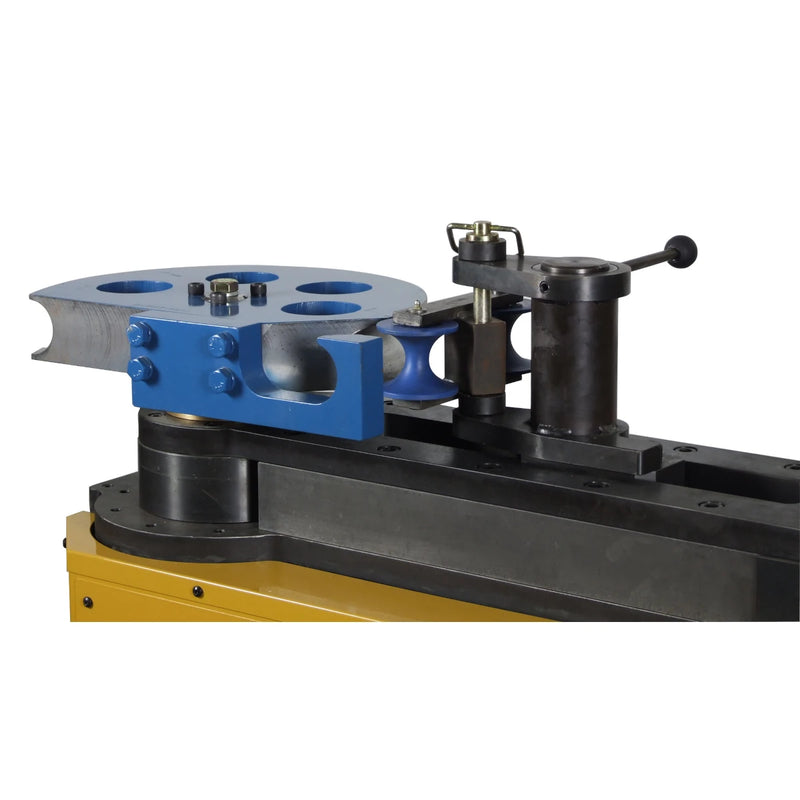

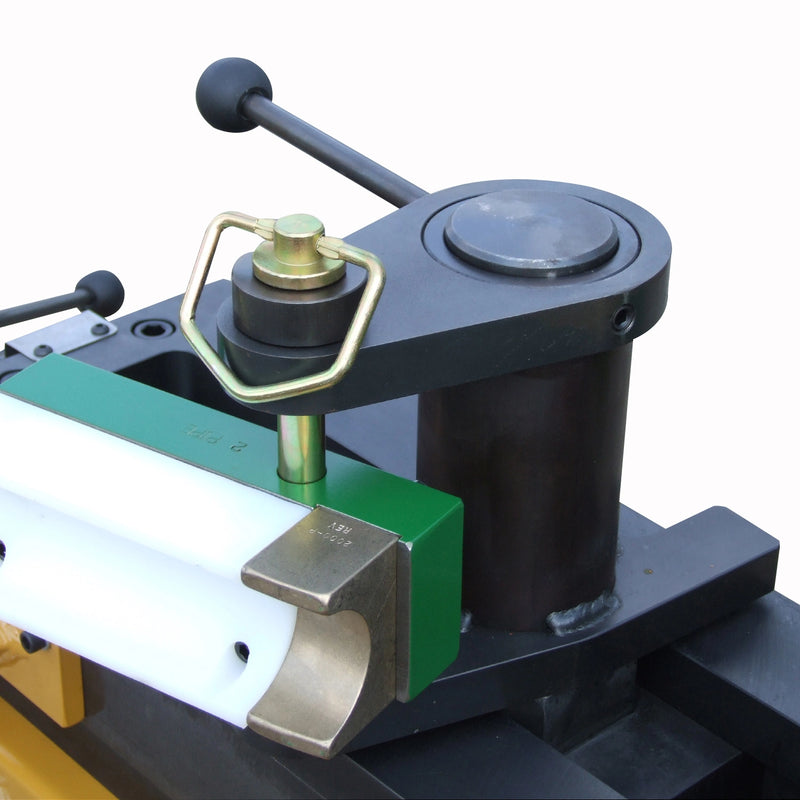

Baileigh RDB-325 Programmable PIpe Bender Follower

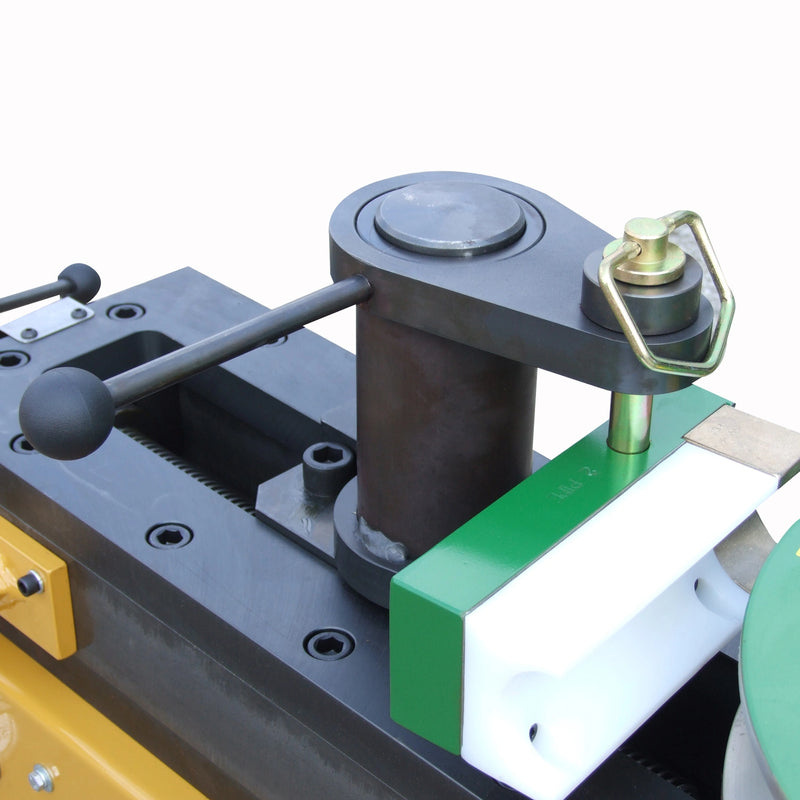

Baileigh RDB-325 Programmable PIpe Bender Follower Adjuster

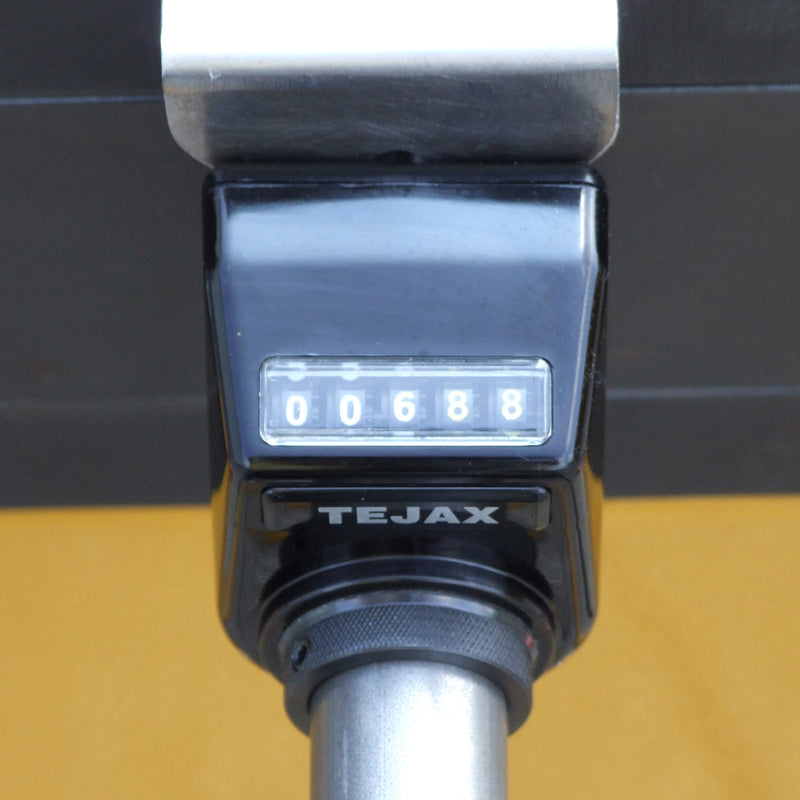

Baileigh RDB-325 Programmable PIpe Bender Counter

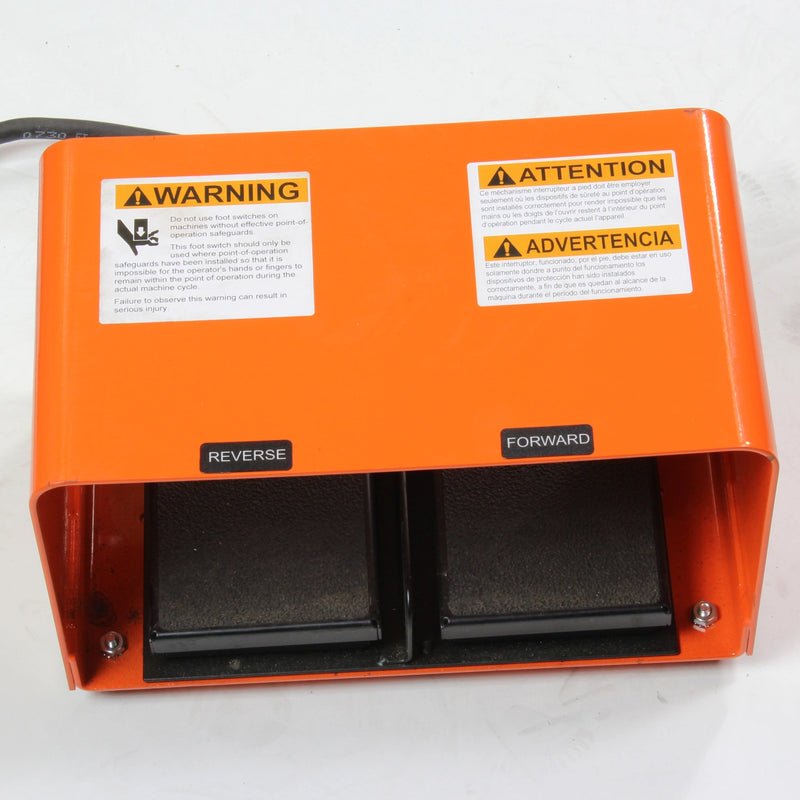

Baileigh RDB-325 Programmable PIpe Bender Foot Pedal

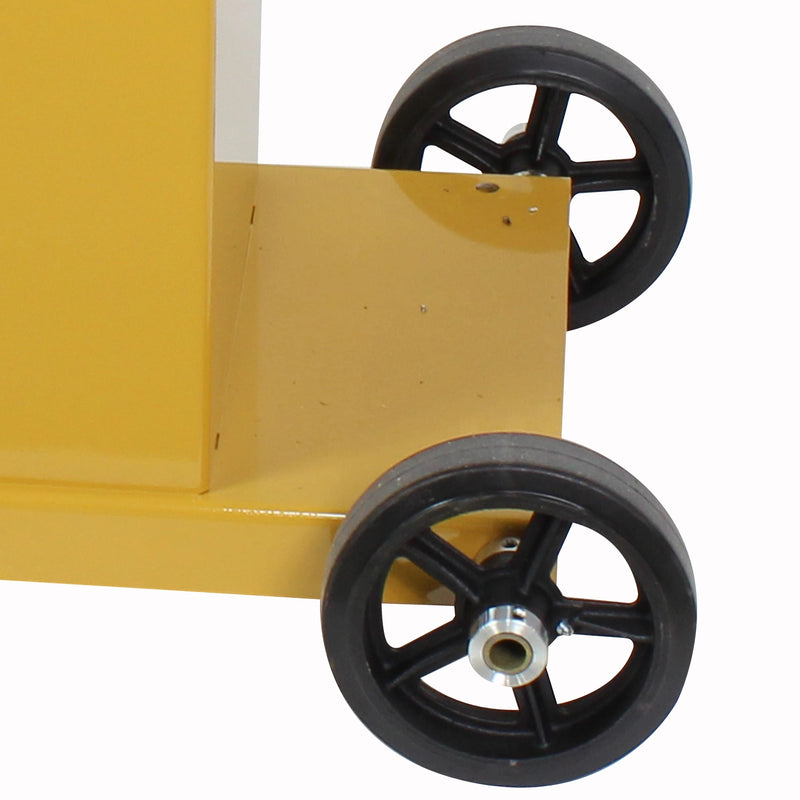

Baileigh RDB-325 Programmable PIpe Bender Wheels
Baileigh RDB-325 Programmable PIpe Bender
Baileigh RDB-325 Programmable PIpe Bender Die
Baileigh RDB-325 Programmable PIpe Bender Touch Controller
Baileigh RDB-325 Programmable PIpe Bender Rear View
Baileigh RDB-325 Programmable PIpe Bender Side View
Baileigh RDB-325 Programmable PIpe Bender Follower
Baileigh RDB-325 Programmable PIpe Bender Follower Adjuster
Baileigh RDB-325 Programmable PIpe Bender Counter
Baileigh RDB-325 Programmable PIpe Bender Foot Pedal
Baileigh RDB-325 Programmable PIpe Bender Wheels

Baileigh RDB-325 Programmable Pipe Bender

SKU: BA9-RDB325220  by Baileigh
Made in the USA
$20,199.00 - $20,199.00
$20,199.00
$20,199.00
$20,199.00 - $20,199.00
$20,199.00
Availability:
In stock

Call for our Best Deal (855) 605-4599

Baileigh RDB-325 — Programmable Rotary Draw Bender

  • 2" Schedule 80 pipe capacity — the working ceiling for chassis, handrail, and structural pipe work.
  • 3" round tube — mild steel and stainless to .095" wall, chromoly to .083", aluminum to .203", on one machine with the right die.
  • Stores 170 programs, 10 bends each — recall a repeat job and reproduce every bend angle without re-dialing.
  • 16.5" maximum centerline radius — sweeping bends as well as tight ones, set by the die in use.
  • Touchscreen programmable control — enter bend angle, springback, and rotation per bend; foot-pedal forward/reverse.
  • 180° bend in about 9 seconds — bends up to 205° with the right tooling.
  • 220V single-phase — runs on common shop power, no three-phase required.
  • 1,100 lb welded steel frame — mass and rigidity hold bend accuracy across a production run.
  • Made in the USA — backed by Baileigh's 1-year parts warranty and lifetime phone tech support.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh RDB-325 User Manual

Baileigh RDB-325 Programmable Pipe & Tube Bender — 2" Schedule 80 Capacity, 170-Program Memory

The RDB-325 is a fully programmable rotary draw bender built for shops producing the same bend, or the same multi-bend part, over and over. You program each bend — angle, springback allowance, and material rotation — on the touchscreen, and the machine reproduces it off the foot pedal. It stores up to 170 programs of 10 bends each, so a job you ran last month comes back exactly as you set it.

Capacity covers 2" schedule 80 pipe and 3" round tube — mild steel and stainless to .095" wall, chromoly to .083", aluminum to .203" — with a maximum 16.5" centerline radius. Rotary draw means a matched bend die and counter die pull the material around a fixed radius — the clean, repeatable method for roll cages, headers, handrail, and chassis work where every bend has to match the print. Baileigh offers a deep range of dies across diameters and CLRs, so the machine grows with the work.

The 1,100 lb welded steel frame is what makes the repeatability hold — mass and rigidity keep the geometry from walking across a production run. It runs on 220V single-phase power, so it drops into most fabrication shops without a three-phase service. A 180° bend takes about 9 seconds; the control will take it to 205° with the right tooling. The RDB-325 is made in the USA and backed by Baileigh's 1-year parts warranty and lifetime phone tech support.

The RDB-325 takes Baileigh's rotary draw tube dies and pipe dies — match the die to the diameter and centerline radius you're bending. To compare it against the rest of the range, see the pipe & tube benders collection.
