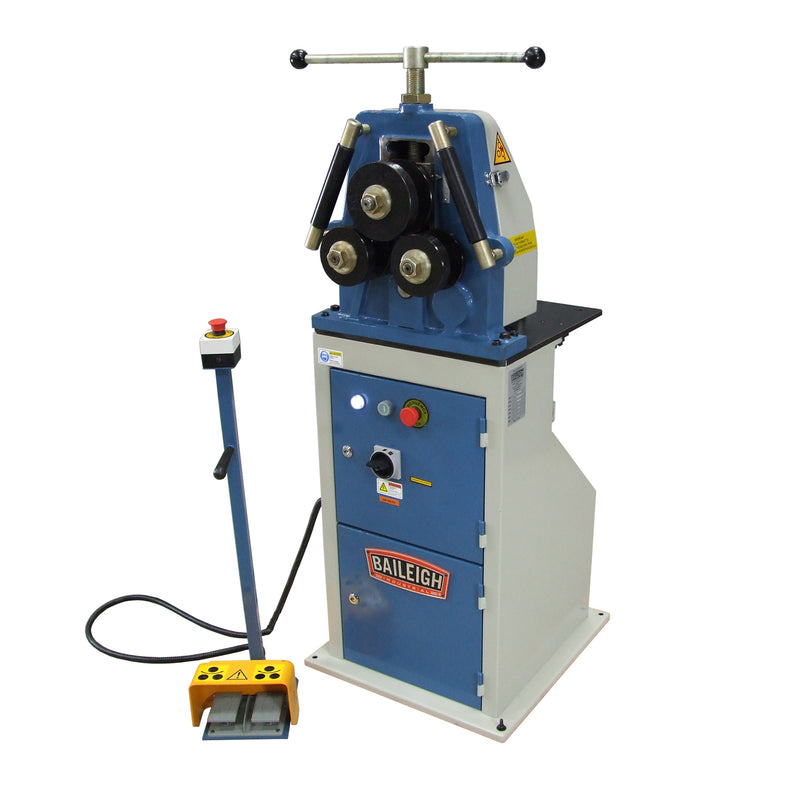

Baileigh R-M10E Ring Roller

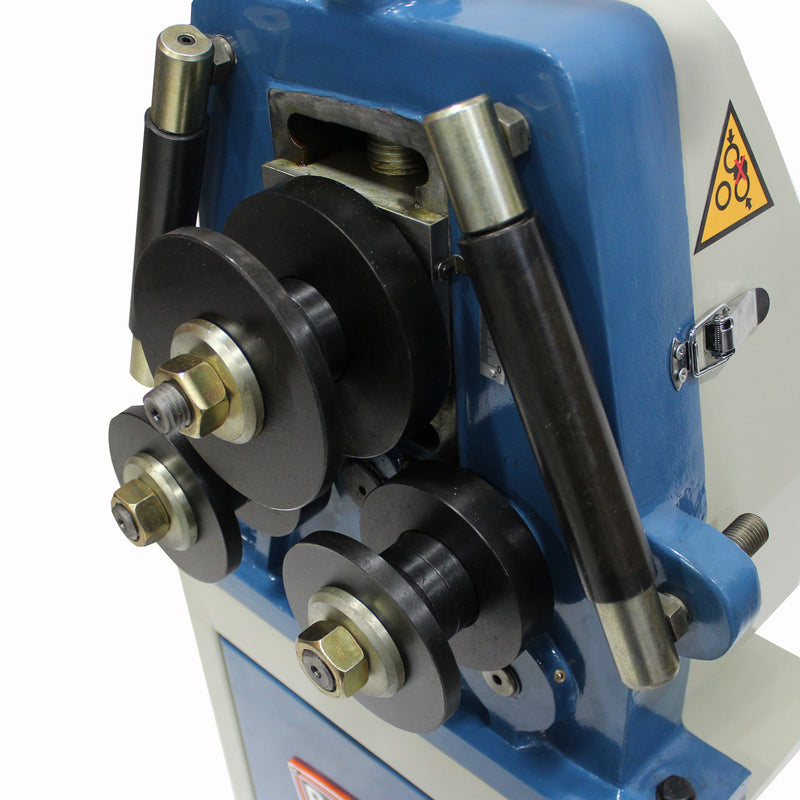

Baileigh R-M10E Ring Roller Tooling

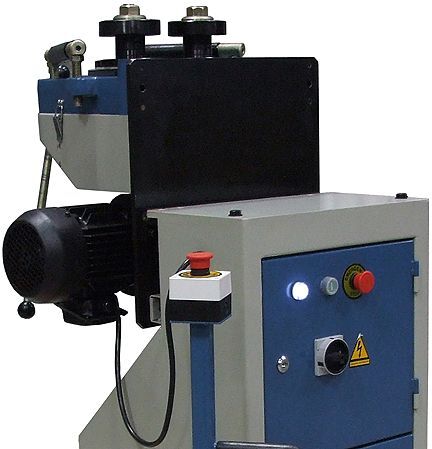

Baileigh R-M10E Ring Roller Head Horizontal

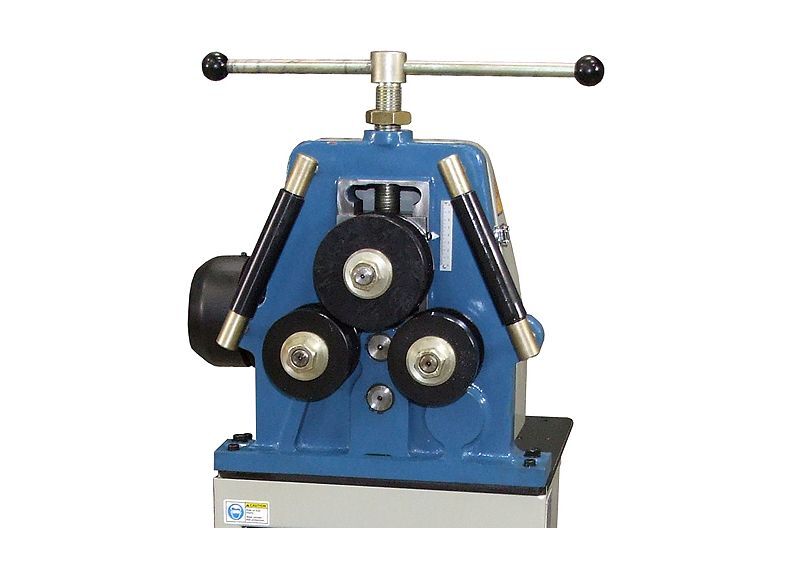

Baileigh R-M10E Ring Roller Head Vertical

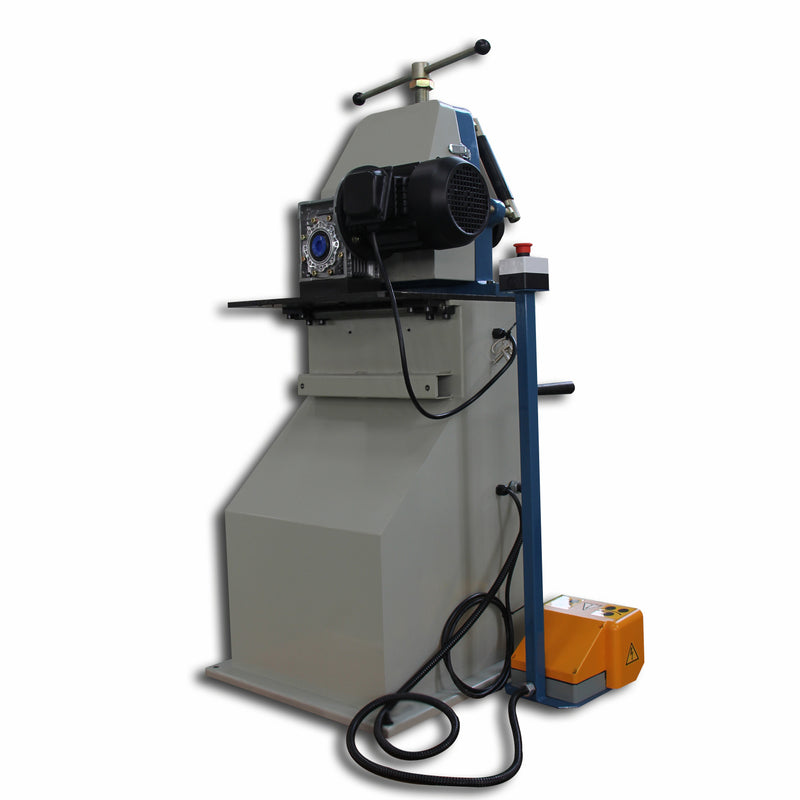

Baileigh R-M10E Ring Roller Rear

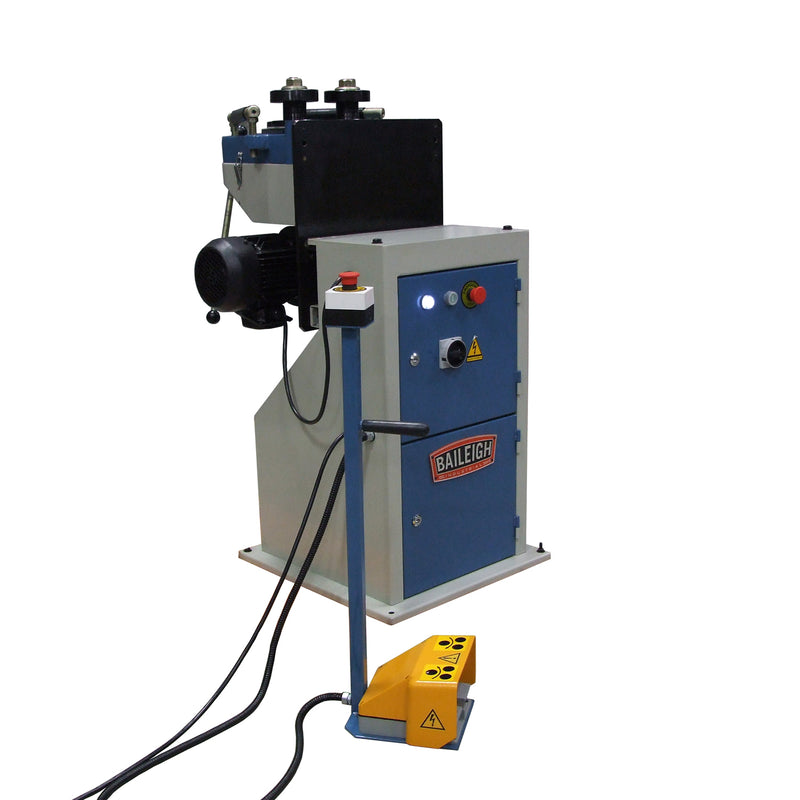

Baileigh R-M10E Ring Roller Head Tilted

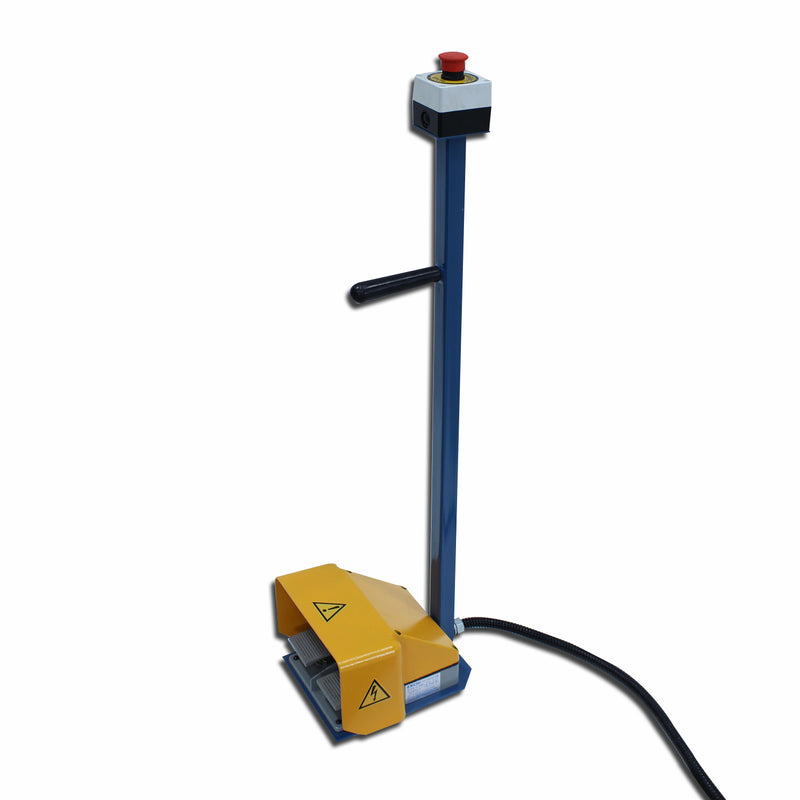

Baileigh R-M10E Ring Roller Foot Pedal
Baileigh R-M10E Ring Roller
Baileigh R-M10E Ring Roller Tooling
Baileigh R-M10E Ring Roller Head Horizontal
Baileigh R-M10E Ring Roller Head Vertical
Baileigh R-M10E Ring Roller Rear
Baileigh R-M10E Ring Roller Head Tilted
Baileigh R-M10E Ring Roller Foot Pedal

Baileigh R-M10E Ring Roller

SKU: BA9-1013217  by Baileigh
$4,212.00 - $4,212.00
$4,212.00
$4,212.00 - $4,212.00
$4,212.00
  • ✅ No Sales Tax (Except for CO)
  • ✅ Authorized Dealer
  • ✅ Save 3% with ACH / Wire Payment
  • ✅ Expert Advice & Free Lifetime Support
Availability:
Only 3 left!

Call for our Best Deal (855) 605-4599

  • Maximum Capacity of 1-1/4" (0.078" wall mild steel round tube or 1" Schedule 40 pipe.
  • 220v 3 Phase Power.
  • Open face design allows for rolling full circles.
  • 30mm Shafts.
Ships via LTL / Truck Freight

Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.

We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.

LTL Freight has a number of options, depending on your ability to unload the goods.

The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.

Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.

Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.

All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.

If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.

You can view our Shipping Policy Here

Product Downloads

Download Baileigh R-M10E Ring Roller Manual

Power Roll Tube up to 1-1/4" with the Baileigh R-M10E

The R-M10E from Baileigh is a 220v 3-phase powered, manually adjusted tube and ring roller allowing you to easily roll tube up to 1-1/4".

The open faced design allows you to roll complete circles and the cast-iron head ensures a sturdy platform and long life making it ideal for production environments.

Bailiegh R-M10E Features:

  • 1-1/2HP 220v 3-Phase Motor
  • Includes rolls for flat-bar, angle iron and square tubing
  • Cast steel head with precision machining maintains accuracy even at max capacity.
  • Machine base includes handy storage cabinet.
  • 30mm shafts.
  • Open face design allows for full circle rolling.
  • Can operate in both horizontal and vertical position.
  • Foot pedal control with emergency off button.
