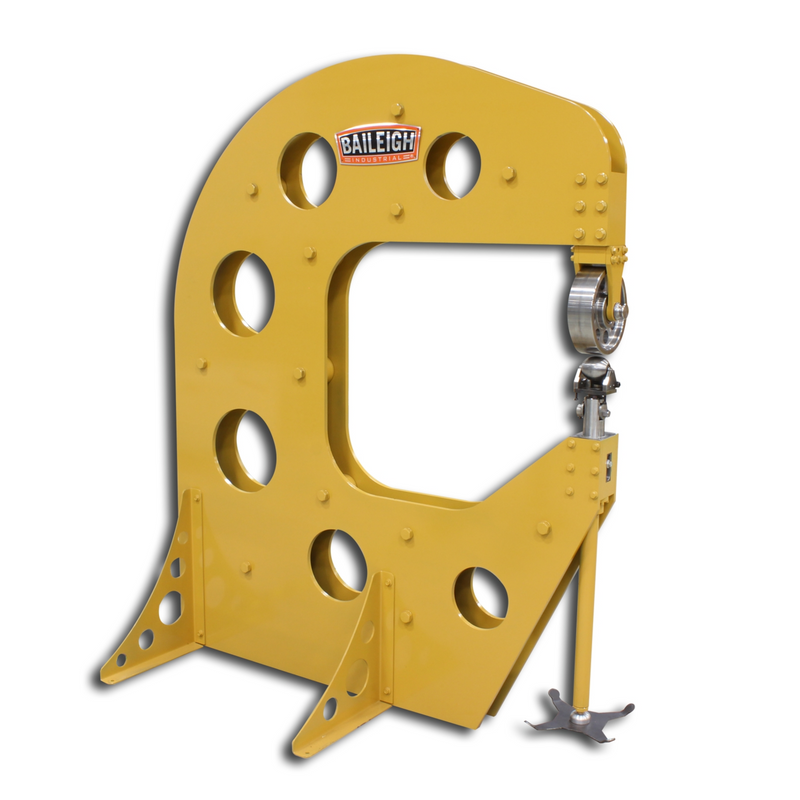

Baileigh EW-37HD Heavy Duty English Wheel
- ✅ No Sales Tax (Except for CO)
- ✅ Authorized Dealer
- ✅ Save 3% with ACH / Wire Payment
- ✅ Expert Advice & Free Lifetime Support
Call for our Best Deal (855) 605-4599
Ships via LTL / Truck Freight
Due to the size and weight of this product, this item ships on a Pallet via LTL / Truck Freight.
We provide real-time pricing for LTL freight including the various options listed below - rates can be seen on the checkout page.
LTL Freight has a number of options, depending on your ability to unload the goods.
The basic service offers delivery by truck where the receiver must unload the goods themself - usually a loading bay and / or a forklift is required to do this.
Lift Gate (L) means your goods will be delivered in a truck that is equipped with a tailgate loader / lift-gate. In this situation, the driver will move your goods from the truck to the lift-gate and lower the goods to ground level. You are then responsible for moving the goods from the lift-gate.
Inside delivery (I) is where the driver will move the goods from the truck to ground level and then move the into your premises.
All residential deliveries must include the lift-gate service and delivery is usually made curb-side meaning you are responsible for moving the goods into your premises / workshop / garage.
If you have any questions about LTL delivery or need to make alternate arrangements, please contact us on (855) 605 4599 and we are happy to assist.
You can view our Shipping Policy Here
This English Wheel is Large, It's Heavy and it's Made in the USA.
With a frame made from two plates of 5/8in thick steel weighing in at almost 1600 lbs, the EW-37HD from Baileigh provides the control and precision to shape even the most challenging sheet metal with ease.
The heavy duty frame gives you the rigidity needed to handle up to 16 gauge mild steel, letting you not only work thicker panels, but also planish down those challenging welds with ease. Coupled with a 37in throat depth means you can tackle all but the largest of panels.
The industrial build quality doesn't end with the frame though, the EW-37HD also incorporates a 10in x 3in upper wheel and 8 3in wide high quality lower anvils along with complete adjustability on the wheels / yokes and sturdy jack-screw with an internal locking cam to allow for quick and easy panel removal and changing of lower anvils, making it the perfect choice for professional sheet metal workers and serious hobbyists alike.
EW-37HD Key Features for Superior Metal Shaping:

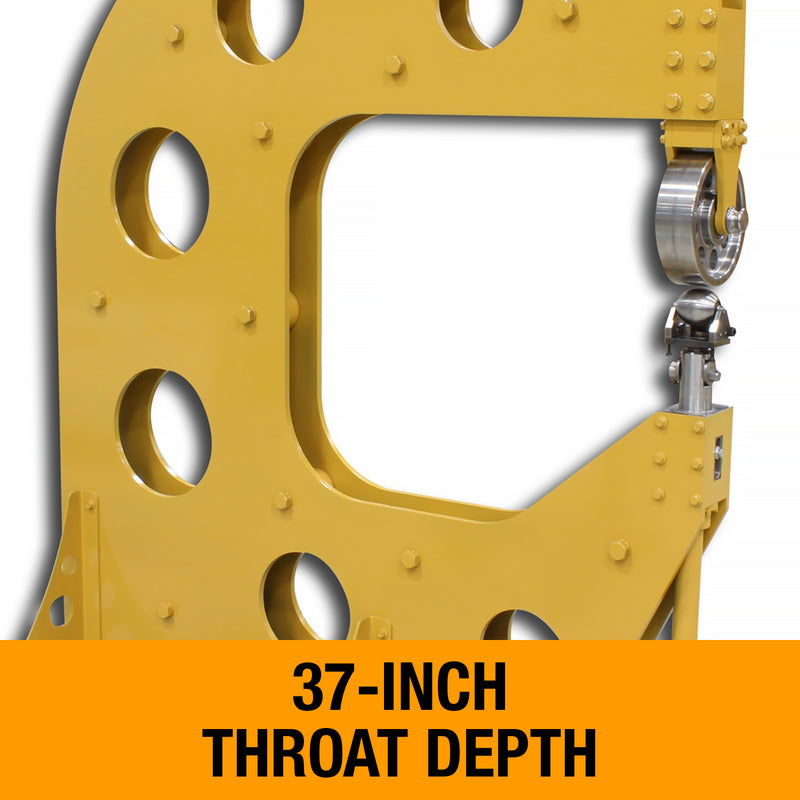

- Massive 37-Inch Throat Depth: Effortlessly tackle large panels and complex curves, perfect for automotive restoration, custom fabrication, and industrial applications.

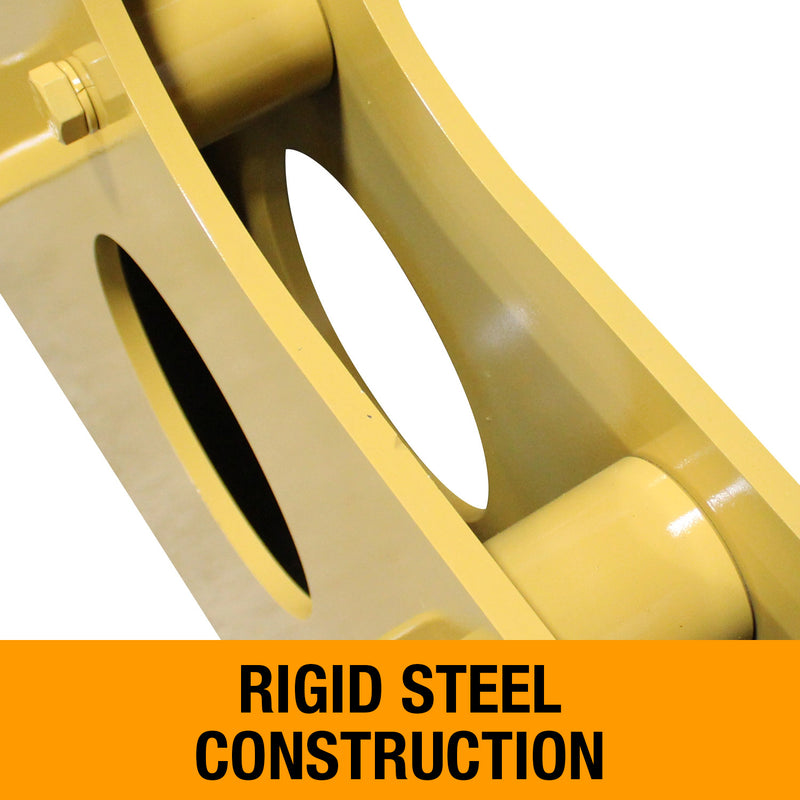

- Heavy-Duty Construction: Experience unmatched rigidity with a robust design featuring ⅝” thick steel plates. This ensures minimal deflection even when working with thicker materials.

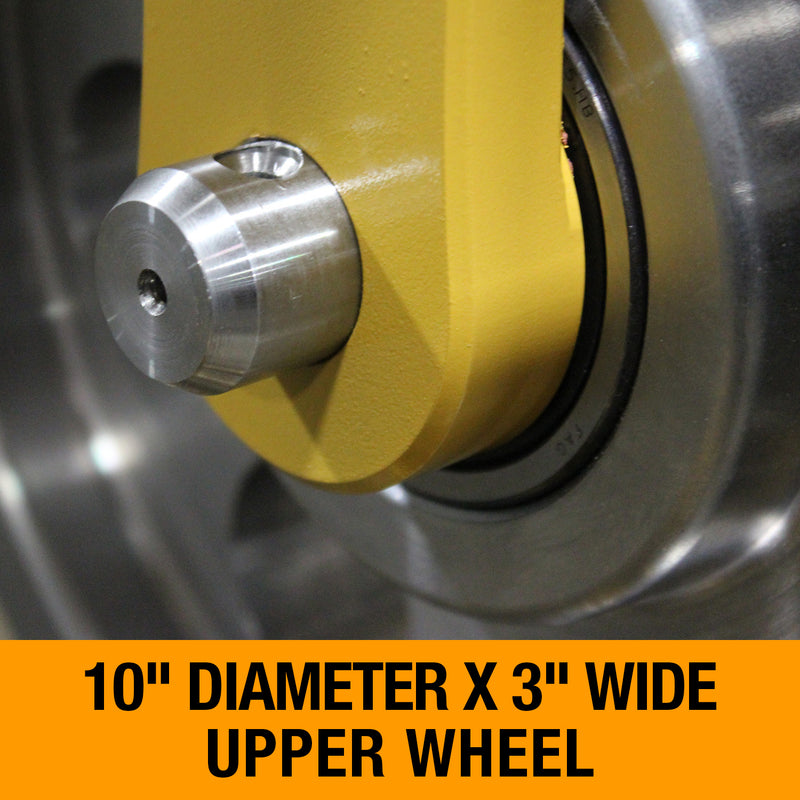

- 10-Inch Diameter Upper Wheel: Deliver exceptional forming pressure for precise shaping and control over even the most stubborn sheet metal.
- Adjustable Caster and Camber: Fine-tune the bottom anvil for perfect alignment and optimal results on a wide range of applications.

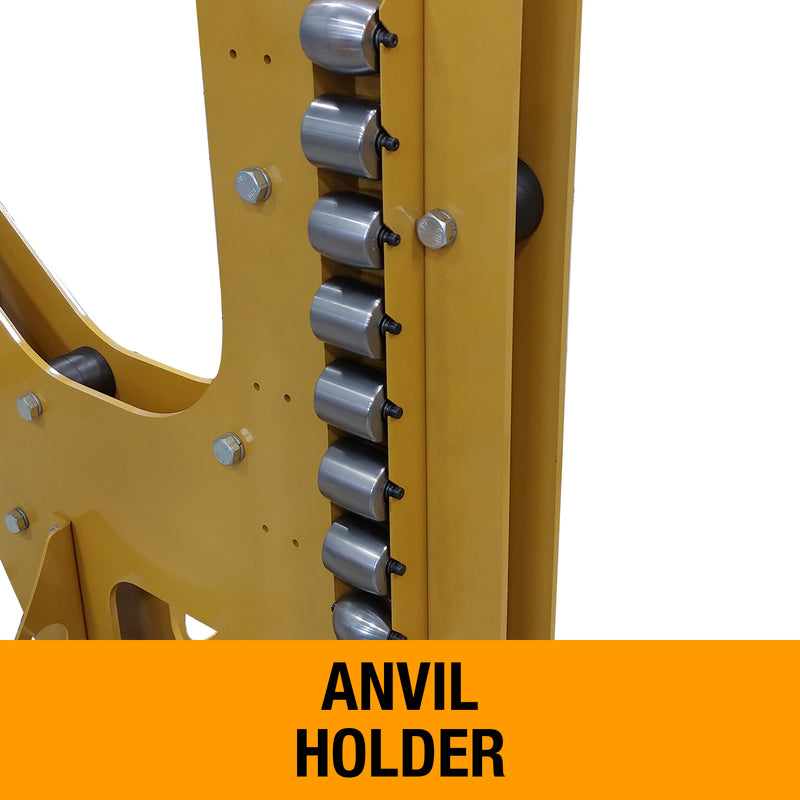

- Eight Included Anvil Sets (3” Wide): Get started right away with a variety of shaping options, including flat, 2”, 4”, 6”, 8”, 12”, 24”, and 36” radii anvils.

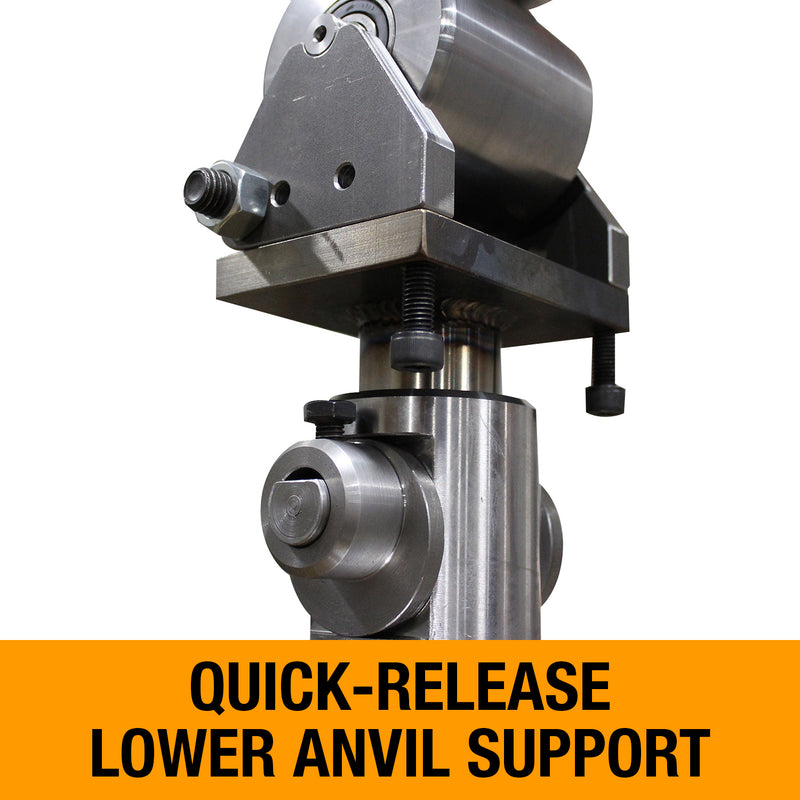

- Quick-Release Lower Anvil Support with Internal Locking Cam: Expedite workpiece removal and easy lower anvil changes.
Why Choose the Baileigh EW-37HD Heavy-Duty English Wheel?
- Unmatched Capacity: Handle thicker materials and larger projects with ease.
- Superior Rigidity: The heavy-duty construction minimizes deflection for precise shaping.
- Exceptional Control: Fine-tune adjustments for optimal results on diverse applications.
- Unmatched Versatility: Shape a wide range of curves and forms with the included anvil sets.
- Enhanced Workflow: Quick-release features streamline the shaping process.
The Baileigh EW-37HD Heavy-Duty English Wheel is the pinnacle of metal shaping performance. Invest in a machine built to last and experience the satisfaction of transforming sheet metal into flawless creations.
Download the Baileigh EW-37HD Manual
